Specification

Details

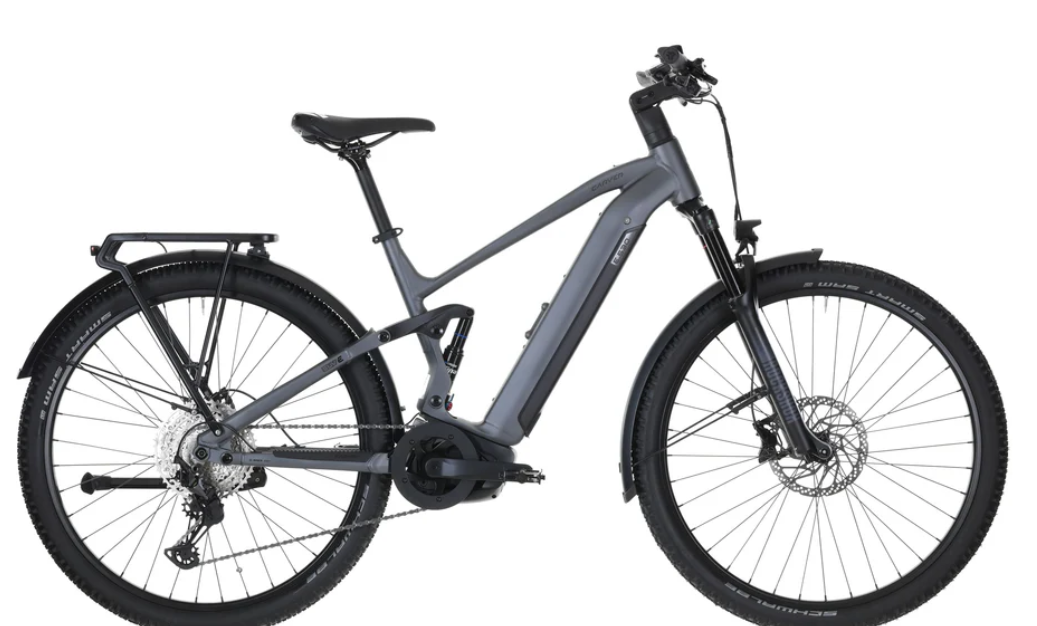

Model

SUV E.530 FS

Vehicle Category

E-SUV Fully

Application

E-SUV, full-suspension, commuting, trail, Bosch CX

Starting Price (2025)

€4,799.99

Sizes

S, M, L, XL, XXL

Specification

Details

Frame

Aluminum, integrated battery

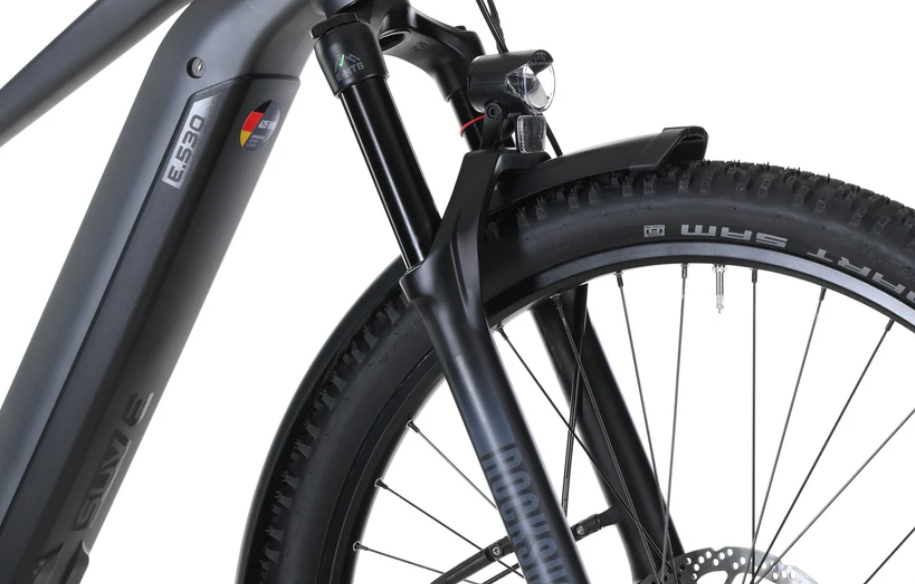

Fork

RockShox 35 Gold RL Debon Air Boost, 130 mm travel

Shock

SR Suntour Edge LOR, 130 mm travel

Motor

Bosch Performance Line CX, 85 Nm, 250 W

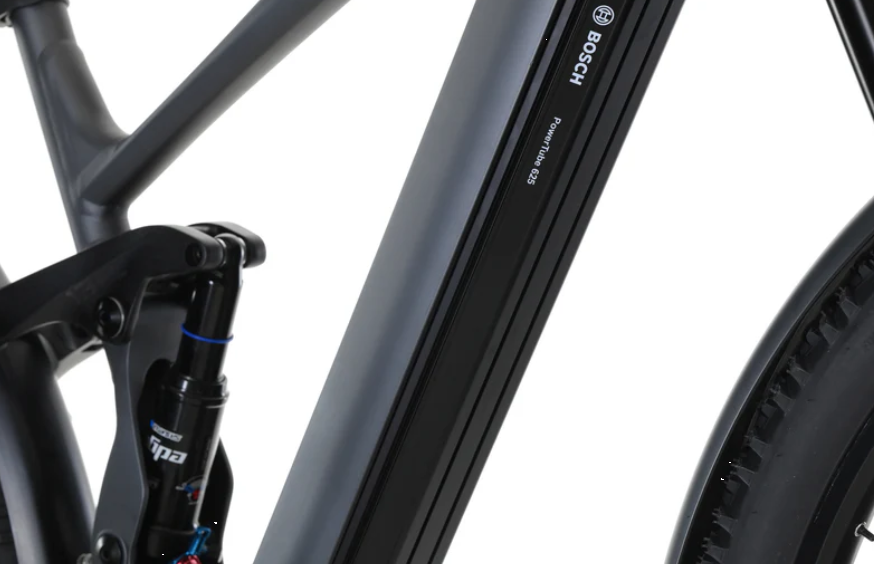

Battery

Bosch PowerTube 625 Wh horizontal

Display

Bosch Purion

Switch

Bosch Mini Remote

Charger

Bosch Standard Charger

Crank

FSA Crankset CK-745, 170mm

Chainring

KMC Chainring Bosch Front, 38T

Chain

Shimano CN-M6100, 12s

Shifters

Shimano Deore SL-M6100, 12-speed Rapidfire Plus

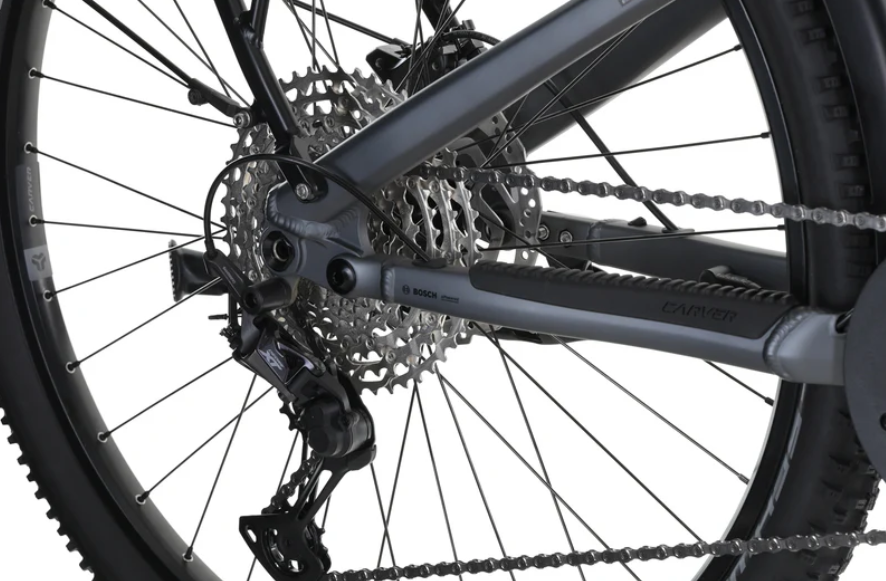

Rear Derailleur

Shimano XT RD-M8100, 12s Shadow Plus

Specification

Details

Seating

Carver Custom Trekking

Fuel Type

Electric (BOSCH)

Cargo Capacity

Carver Custom Design, Racktime Snap-it 1.0

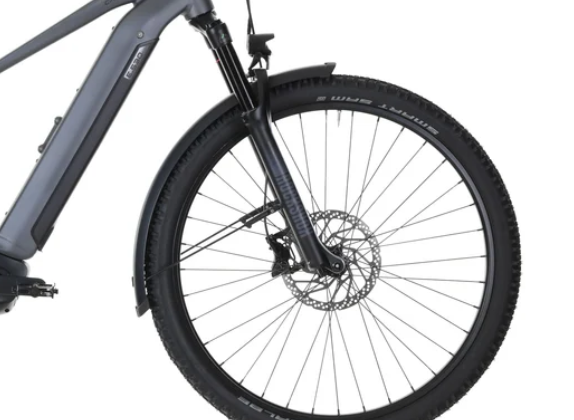

Wheels/Tyres

27.5"/29" Schwalbe Smart Sam K-Guard (front and rear, 57-622), Schürmann Yak Disc 622-25 rims, Shimano Deore CS-M6100-12 10-51t cassette

Wheel Size

27.5" (S), 29" (M-XXL)

Brakes

Shimano BR-MT410 hydraulic disc (front 203 mm, rear 180 mm rotors)

Brake Levers

Shimano Deore SL-M6100

Handlebar

Carver Rise Bar, 720 mm width, 25 mm rise, 9° backsweep

Stem

Carver Custom Ahead adjustable, S/M: 65mm; L/XL/XXL: 90mm

Grips

Carver Trekking Grip

Headset

Acros AZX-585

Saddle

Carver Custom Trekking

Seatpost

Alloy, 31.6 mm

Front Hub

Shimano HB-TC500-15-B, Centerlock, 15x110 mm

Rear Hub

Shimano FH-TC500-MS-B, Centerlock, 12x148 mm

Rims

Schürmann Yak Disc 622-25, aluminum, 36h, SV valve

Spokes

Mach1

Pedals

VP VPE-461

Exterior Features

Herrmans H-Black MR4 E front light (120 Lumen), AXA Juno Black rear light, SKS PET A65 mudguards, Atran Kickstand REX, Büchel Mini Bell

Weight

28.0 kg
