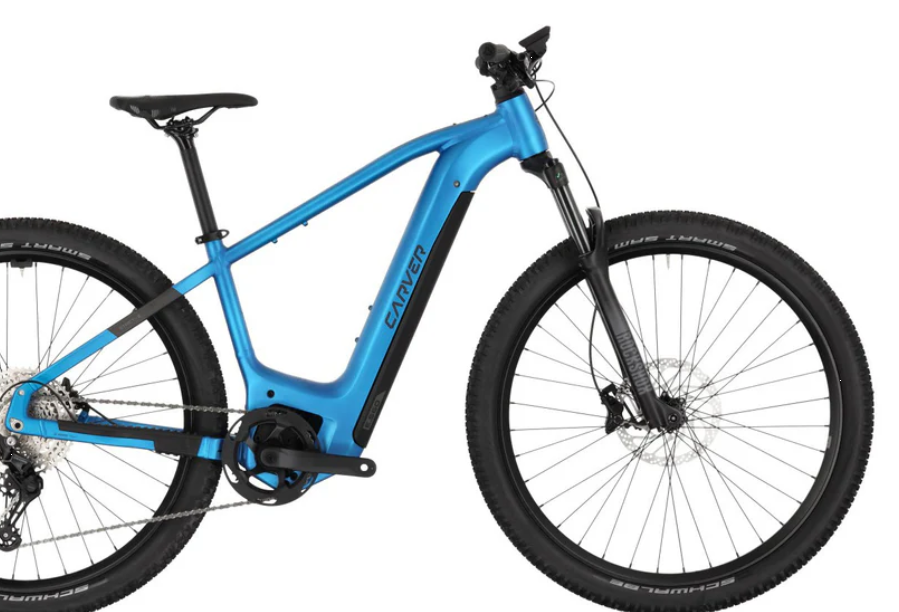

2025 Carver Strict E.560 – E-MTB
Specifications
|
Specification |
Details |
|
Model |
Strict E.560 |
|
Vehicle Category |
E-MTB |
|
Application |
E-mountain, trail, off-road, Bosch CX, adventure |
|
Starting Price (2025) |
€3,699.99 |
|
Sizes |
S, M, L, XL, XXL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |

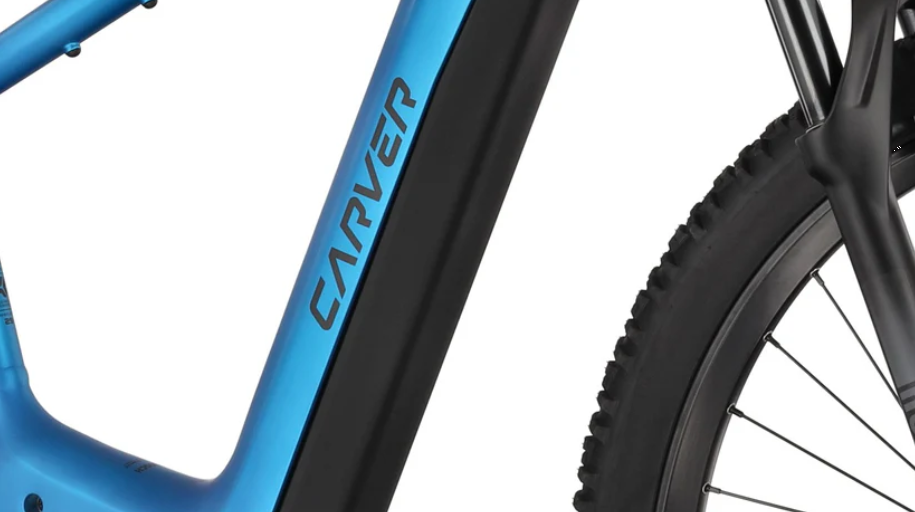

Aluminum, integrated battery |
|
Fork |

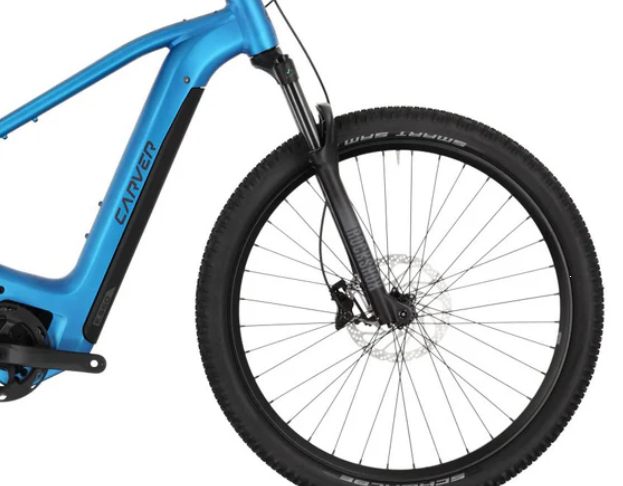

RockShox Judy Silver MXL Stealth Boost Solo Air, 120 mm travel |
|
Motor |

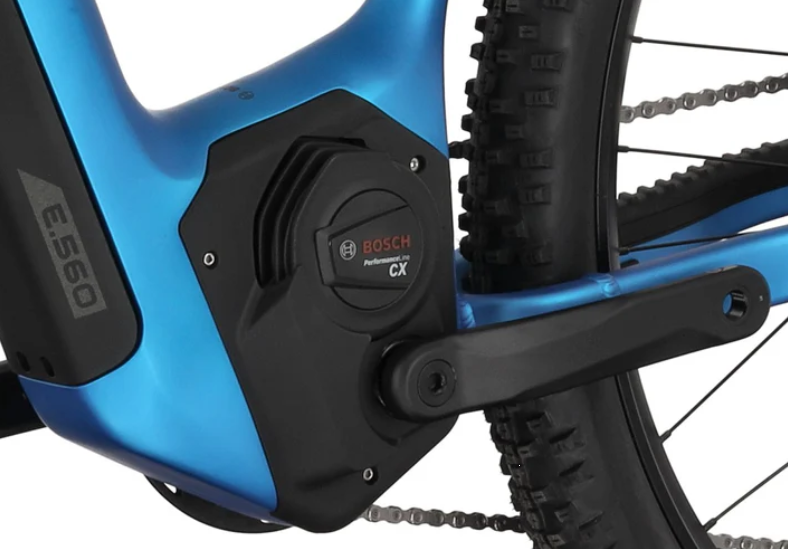

Bosch Performance Line CX Smart System Gen4, 85 Nm, 250 W |
|
Battery |
Bosch PowerTube 750 Wh horizontal |
|
Display |
Bosch Kiox 300 |
|
Switch |
Bosch LED Remote |
|
Charger |
Bosch Standard Charger |
|
Crank |
FSA Crankset CK-745, 170mm |
|
Chainring |
KMC Chainring Bosch G4 Front, 38T |
|
Chain |
Shimano CN-M6100, 12s |
|
Shifters |
Shimano Deore SL-M6100, 12-speed Rapidfire Plus |
|
Rear Derailleur |

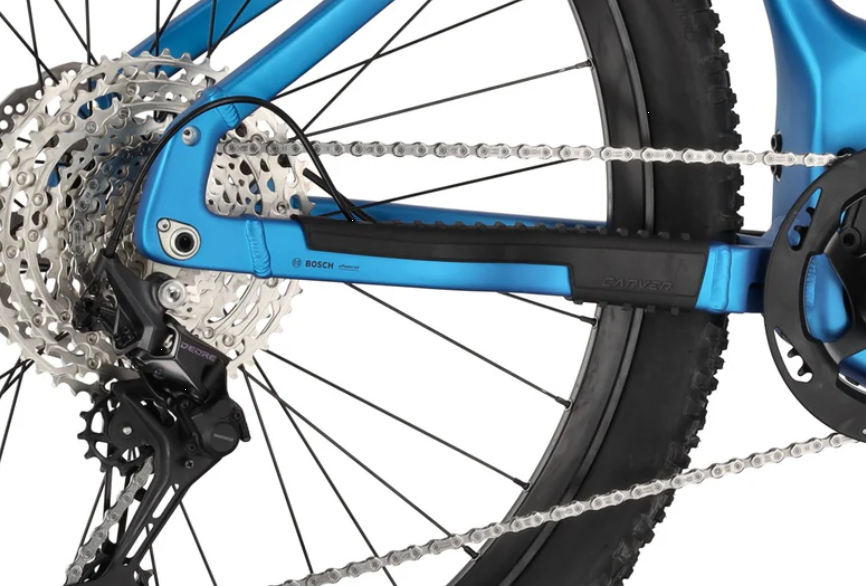

Shimano Deore RD-M6100, 12s Shadow Plus |
Components & Features
|
Specification |
Details |
|
Seating |
Carver Custom Sport |
|
Fuel Type |
Electric (BOSCH) |
|
Wheels/Tyres |
27.5"/29" Schwalbe Smart Sam K-Guard (front and rear, 2.60), Schürmann Craft Disc rims, Shimano Deore CS-M6100-12 10-51t cassette |
|
Wheel Size |
27.5" (S), 29" (M-XXL) |
|
Brakes |
Shimano BR-MT410 / BR-MT420 hydraulic disc (front 203 mm, rear 180 mm rotors) |
|
Brake Levers |
Shimano Deore SL-M6100 |
|
Handlebar |
Carver Rise Bar, 720 mm width, 25 mm rise, 9° backsweep |
|
Stem |
Carver Custom Ahead, XS/S/M: 35mm; L/XL: 50mm |
|
Grips |
Carver MTB Grip |
|
Headset |
Acros AZX-581 |
|
Saddle |
Carver Custom Sport |
|
Seatpost |
Alloy, 31.6 mm |
|
Front Hub |
Shimano HB-TC500-15-B, Centerlock, 15x110 mm |
|
Rear Hub |
Shimano FH-TC500-MS-B, Centerlock, 12x148 mm |
|
Rims |
Schürmann Craft Disc, aluminum, 36h, SV valve |
|
Spokes |
Sapim 14G |
|
Pedals |
VP VPE-461 |
|
Exterior Features |
KMC Chain Ring Cover |
|
Weight |
25.5 kg |
