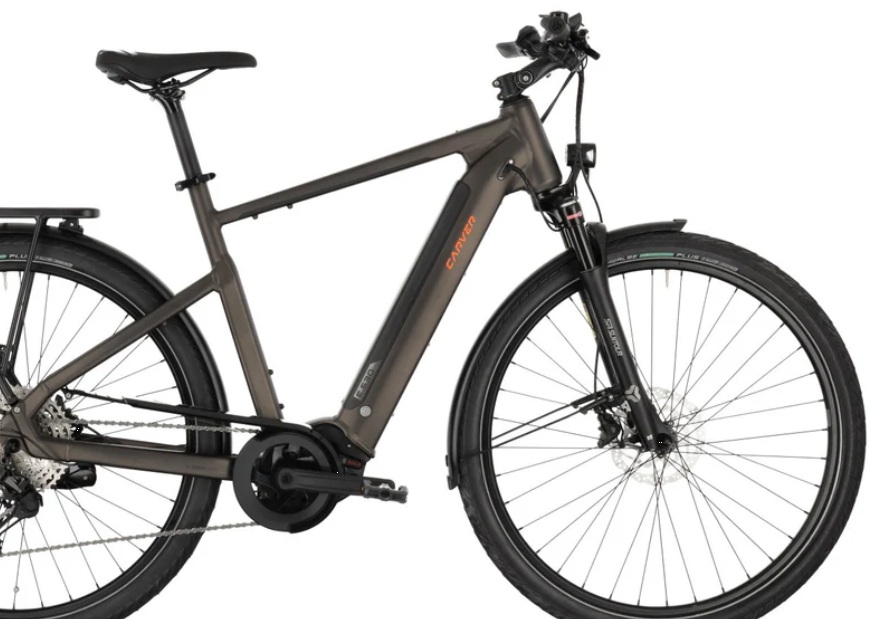

2025 Carver Route E.530 – E-Trekking Bike
Specifications
|
Specification |
Details |
|
Model |
Route E.530 |
|
Vehicle Category |
E-Trekking Bike |
|
Application |
Trekking, commuting, urban, everyday, Bosch CX |
|
Starting Price (2025) |
€3,799.99 |
|
Sizes |
XS, S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Aluminum, integrated battery |
|
Fork |
SR Suntour NCX32-E-Air LO DS, 63 mm travel |
|
Motor |

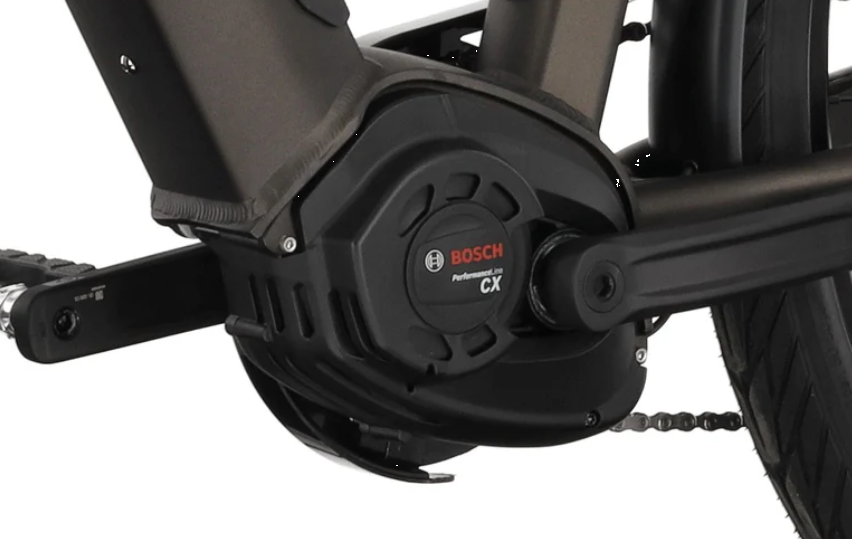

Bosch Performance Line CX, 85 Nm, 250 W |
|
Battery |
Bosch PowerTube 625 Wh horizontal |
|
Display |
Bosch Intuvia |
|
Switch |
Bosch Mini Remote |
|
Charger |
Bosch Standard Charger |
|
Crank |
FSA Crankset CK-320, 170mm |
|
Chainring |
KMC Chainring Bosch Front, 38T |
|
Chain |
Shimano CN-M6100, 12s |
|
Shifters |
Shimano Deore SL-M6100, 12-speed Rapidfire Plus |
|
Rear Derailleur |
Shimano XT RD-M8100, 12s Shadow Plus |
Components & Features
|
Specification |
Details |
|
Seating |
Carver Custom Trekking |
|
Fuel Type |
Electric (BOSCH) |
|
Cargo Capacity |

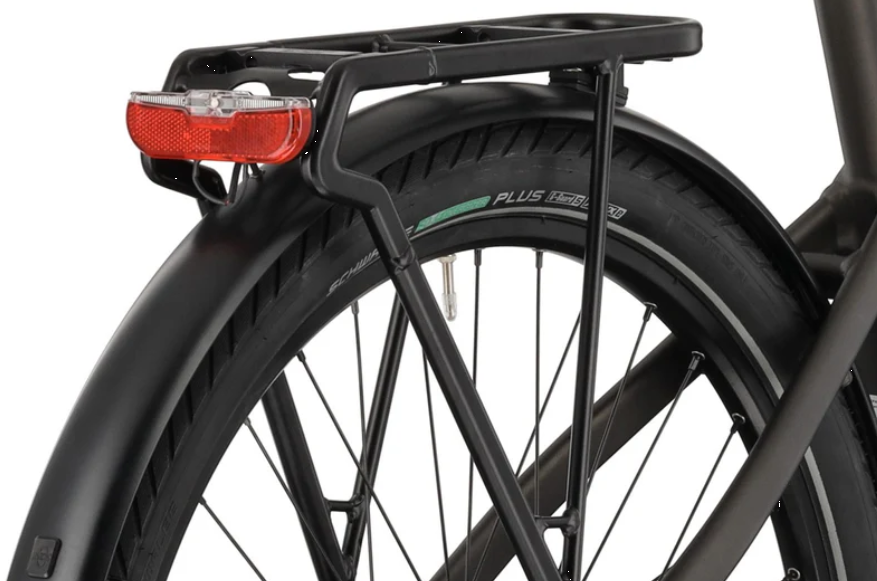

Carver Custom Design, Racktime Snap-it 1.0 |
|
Wheels/Tyres |
28" Schwalbe Energizer Plus Performance GreenGuard (front and rear, 55-622), Schürmann Yak Disc 622-19 rims, Shimano Deore CS-M6100-12 10-51t cassette |
|
Wheel Size |
28" |
|
Brakes |
Shimano BR-MT410 hydraulic disc (front 180 mm, rear 180 mm rotors) |
|
Brake Levers |
Shimano Deore SL-M6100 |
|

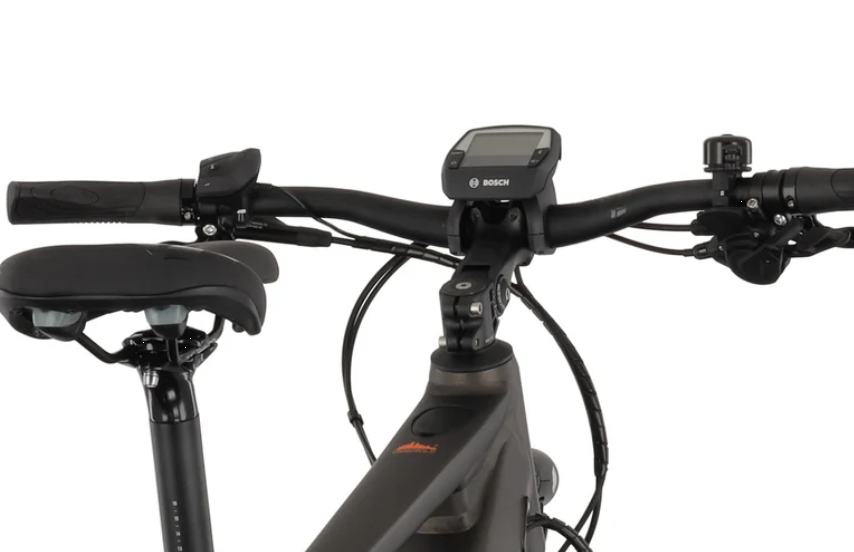

Handlebar |
Carver Rise Bar, 680 mm width, 25 mm rise, 9° backsweep |
|
Stem |
Carver Custom Ahead adjustable, XS/S: 90mm; M/L/XL: 110mm |
|
Grips |
Carver Trekking Grip |
|
Headset |
Acros ZS44 / ZS56 |
|
Saddle |
Carver Custom Trekking |
|
Seatpost |
Alloy, 27.2 mm |
|
Front Hub |
Shimano HB-QC300, Centerlock, QR 100 mm |
|
Rear Hub |
Shimano FH-QC500-MS, Centerlock, QR 135 mm |
|
Rims |
Schürmann Yak Disc 622-19, aluminum, 36h, SV valve |
|
Spokes |
Mach1 |
|
Pedals |
VP VPE-623 |
|
Exterior Features |

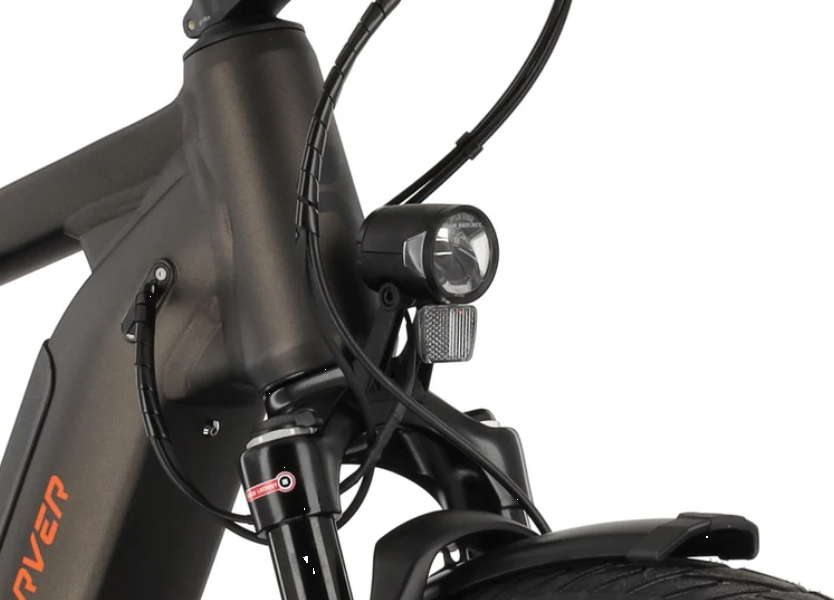

Herrmans H-Black MR8 E front light (180 Lumen), Trelock LS611 duo flat rear light, SKS PET A60 mudguards, Atran Kickstand REX, Büchel Mini Bell |
|
Weight |
27.2 kg |
