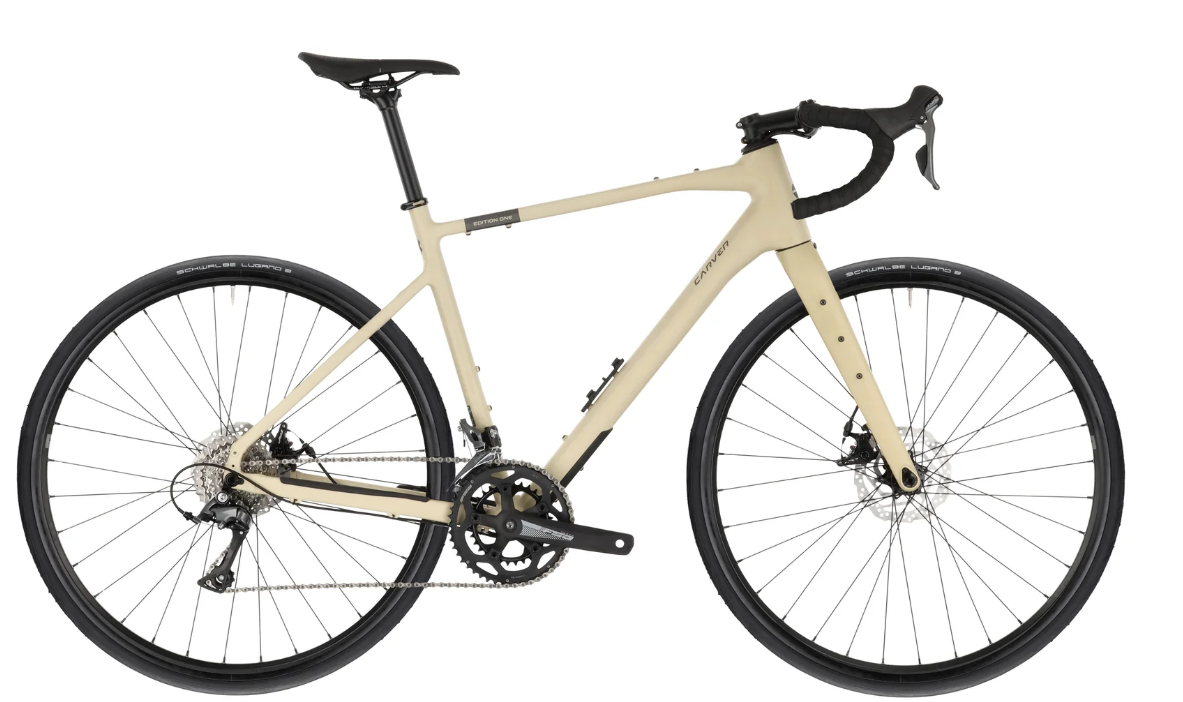

2025 Carver Road Edition One – Road Bike
Specifications
|
Specification |
Details |
|
Model |
Road Edition One |
|
Vehicle Category |
Road Bike |
|
Application |
Road, commuting, fitness, non-electric |
|
Starting Price (2025) |
€1,049.99 |
|
Sizes |
XS, S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|

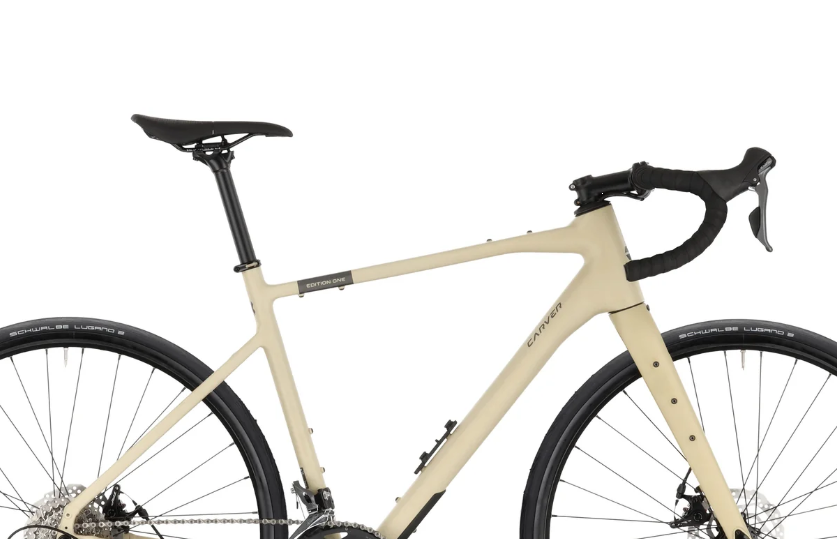

Frame |
Aluminum butted, internal cable routing |
|
Fork |
Carver Full Carbon, tapered 1-1/8" to 1-1/2" |
|
Crank |
FSA Tempo CK-201, 48/32T, XS:170mm / S-M:172.5mm / L-XL:175mm |
|
Bottom Bracket |
FSA BB-7420ST, BSA |
|
Chain |
KMC X8 |
|
Shifters |
Shimano Claris ST-2000, 2x8-speed |
|
Front Derailleur |
Shimano Claris FD-2000 |
|

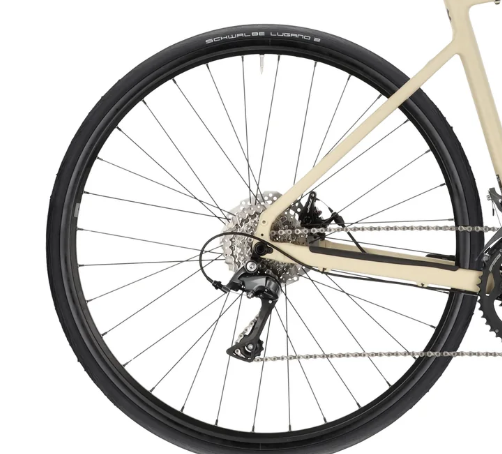

Rear Derailleur |
Shimano Claris RD-2000, 8-speed |
|
Cassette |
Shimano CS-HG50-8, 11-34T |
Components & Features
|
Specification |
Details |
|
Seating |
Carver Performance Saddle |
|
Fuel Type |
Muscle-powered (non-electric) |
|

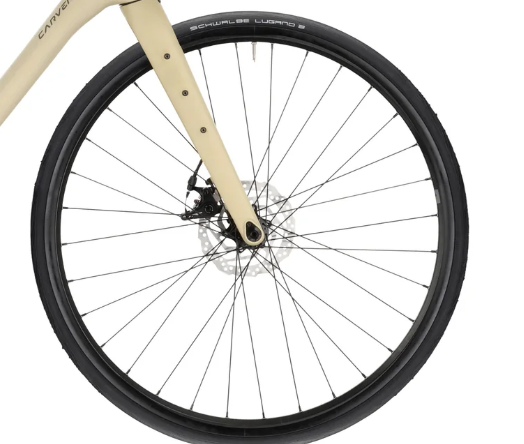

Wheels/Tyres |
28" Schwalbe Lugano II 32-622, Schürmann SDR Light 622-19 rims, Shimano CS-HG50-8 11-34t cassette |
|
Wheel Size |
28" |
|
Brakes |
Tektro Spyre mechanical disc (160 mm rotors front & rear) |
|
Brake Levers |
Shimano Claris ST-2000 |
|
Handlebar |
Carver Drop Bar, XS-S-M: 420mm / L-XL: 440mm, 120mm drop, 75mm reach |
|
Stem |
Carver Custom Ahead, XS:80mm / S-M:90mm / L-XL:100mm |
|
Grips |
Carver Grip Tape |
|
Headset |
Acros ZS44 / ZS56 |
|
Saddle |
Carver Performance Saddle |
|
Seatpost |
Alloy, 27.2 mm |
|
Front Hub |
Shimano HB-RS470, Centerlock, 12x100 mm |
|
Rear Hub |
Shimano FH-TC500-HM, Centerlock, 12x142 mm |
|
Rims |
Schürmann SDR Light 622-19, aluminum, 32h, SV valve |
|
Spokes |
Protens C14 |
|
Weight |
~9.9 kg (size M, without pedals) |
