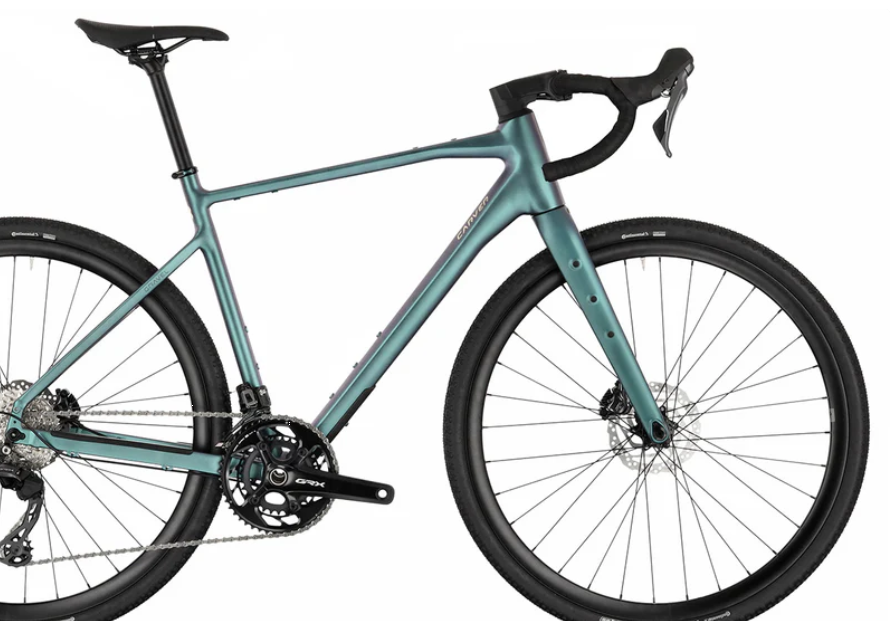

2025 Carver Gravel 230 – Gravel / Adventure Bike
Specifications
|
Specification |
Details |
|
Model |
Gravel 230 |
|
Vehicle Category |
Gravel / Adventure Bike |
|
Application |
Long-distance, technical trails, fast gravel |
|
Starting Price (2025) |
€1,799.99 |
|
Sizes |
XS, S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Aluminum, butted tubing, integrated cable routing |
|

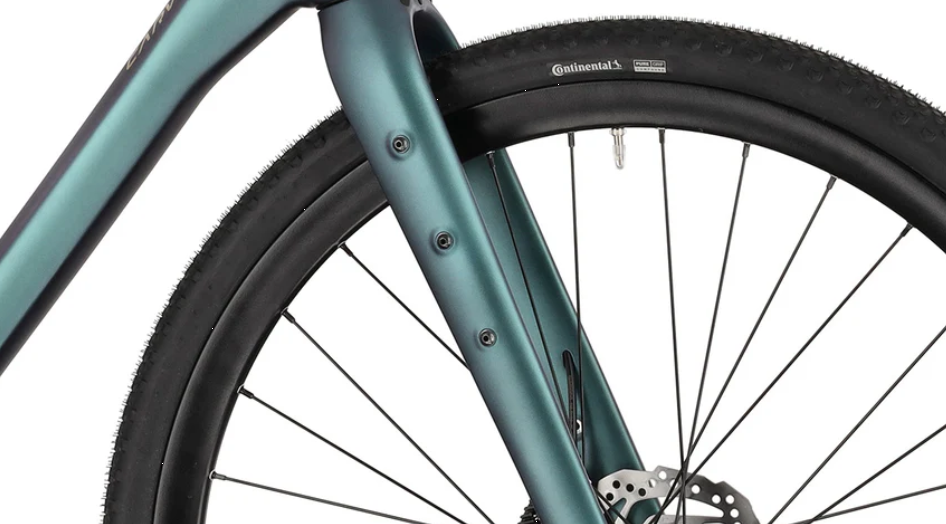

Fork |
Carver Full Carbon Fork, Tapered 1 1/8–1 1/2" |
|
Crank |
Shimano GRX FC-RX820-2, 48/31T, XS: 170mm; S/M: 172.5mm; L/XL: 175mm |
|
Chain |
Shimano CN-M6100 |
|
Shifters |
Shimano GRX ST-RX820, 2x/12-speed |
|
Front Derailleur |
Shimano GRX FD-RX820, 2-speed |
|

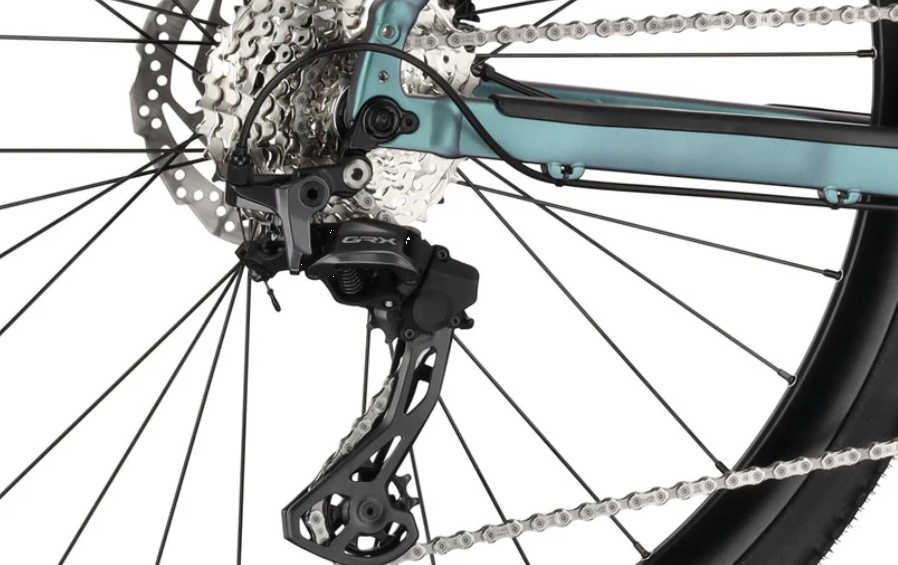

Rear Derailleur |
Shimano GRX RD-RX820-2, 12-speed, Shadow Plus |
Components & Features
|
Specification |
Details |
|
Seating |
Carver Performance Saddle |
|
Cargo Capacity |
Fork load capacity: 6 kg |
|
Wheels/Tyres |
Continental Terra Trail 28 x 1.50 (40-622) (front/rear) |
|
Wheel Size |
28" |
|

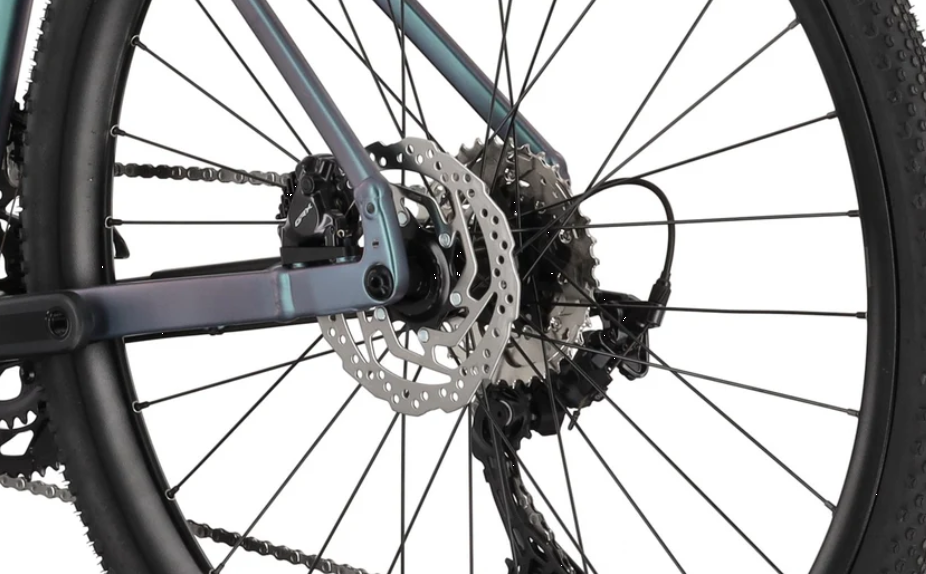

Brakes |
Shimano BR-RX820, hydraulic disc |
|
Brake Levers |
Integrated in Shimano GRX ST-RX820 |
|

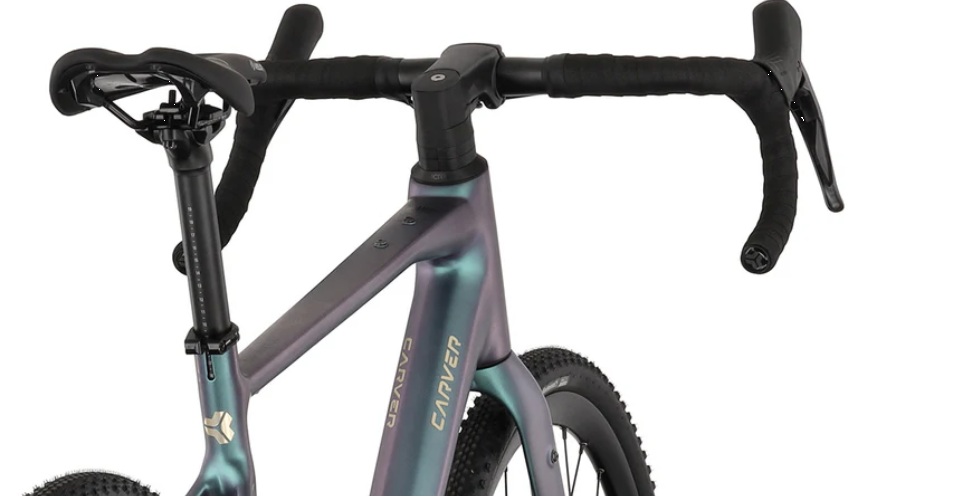

Handlebar |
Carver Drop Bar: 420mm (XS/S/M), 440mm (L/XL), 31.8mm clamp, 120mm drop, 75mm reach |
|
Stem |
Carver Custom Ahead: 80mm (XS), 90mm (S/M), 100mm (L/XL) |
|
Headset |
Acros ICR ZS56/ZS56 |
|
Saddle |
Carver Performance Saddle |
|
Grips |
Carver Grip Tape |
|
Front Hub |
Shimano HB-RS470, Centerlock |
|
Rear Hub |
Shimano FH-RS470, Centerlock |
|
Rims |
Schürmann SDR Gravel 622-21, aluminum, 32h |
|
Spokes |
Protens C14 |
|
Exterior Features |
Integrated cable routing, fork load capacity 6 kg |
|
Weight |
10.76 kg |
