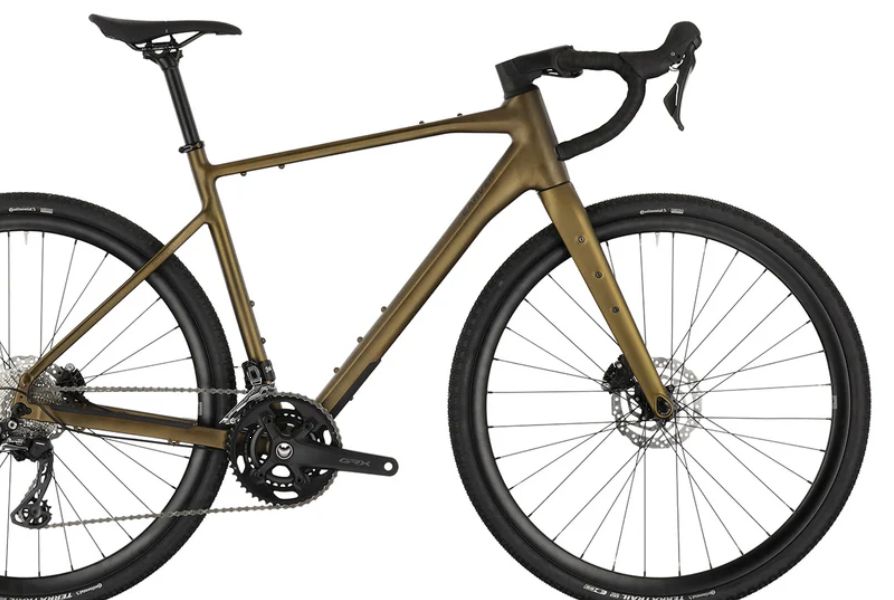

2025 Carver Gravel 220 Sport – Performance Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Gravel 220 Sport |
|
Vehicle Category |
Performance Gravel Bike |
|
Application |
Gravel, adventure, sport, mixed terrain, touring |
|
Starting Price (2025) |
€1,599.99 |
|
Sizes |
XS, S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Aluminum butted tubeset |
|

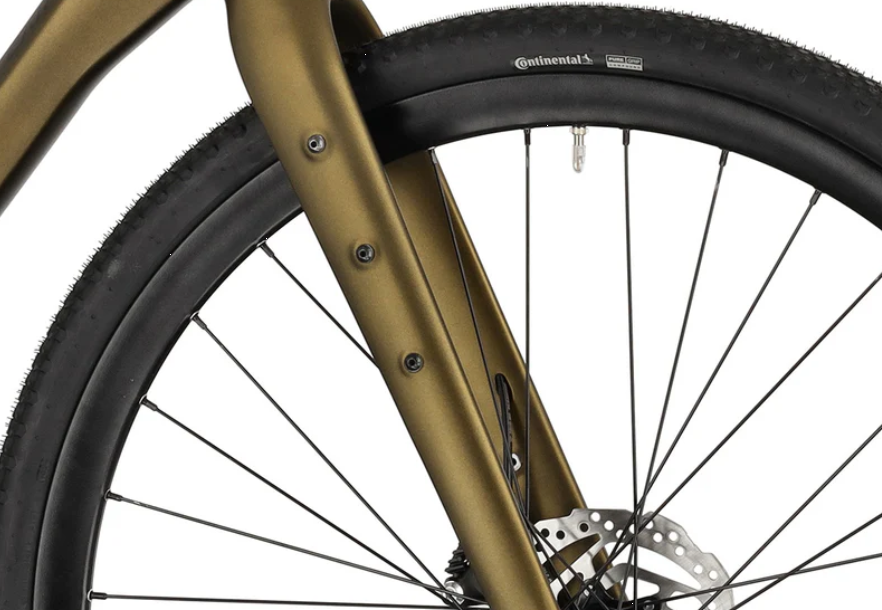

Fork |
Carver Full Carbon Fork, Tapered Steerer 1 1/8-1 1/2" |
|

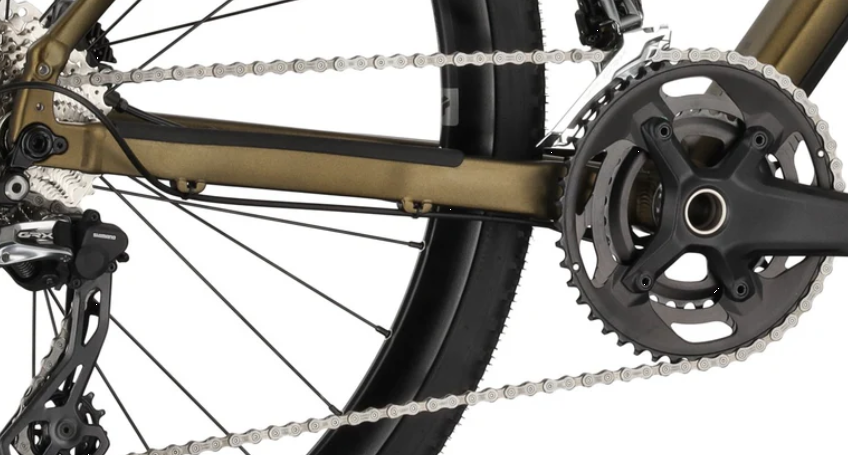

Crank |
Shimano GRX FC-RX600 46-30T, XS: 170mm; S/M: 172.5mm; L/XL: 175mm |
|
Chain |
Shimano CN-HG601, 11s |
|
Shifters |
Shimano GRX ST-RX600, 2x11s |
|
Front Derailleur |
Shimano GRX FD-RX810 |
|
Rear Derailleur |
Shimano GRX RD-RX810, 11s Shadow Design |
Components & Features
|
Specification |
Details |
|
Seating |
Carver Performance Saddle |
|
Wheels/Tyres |
28" Continental Terra Trail (front and rear, 40-622), Schürmann SDR Gravel 622-21 rims, Shimano 105 CS-HG700 11-34t cassette |
|
Wheel Size |
28" |
|

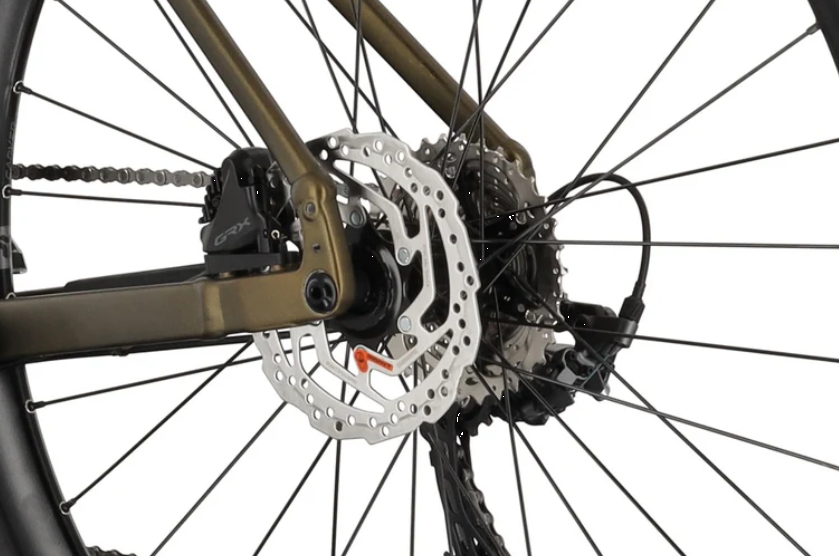

Brakes |
Shimano BR-RX400 hydraulic disc (front and rear, 160 mm rotors) |
|
Brake Levers |
Shimano GRX ST-RX600 |
|

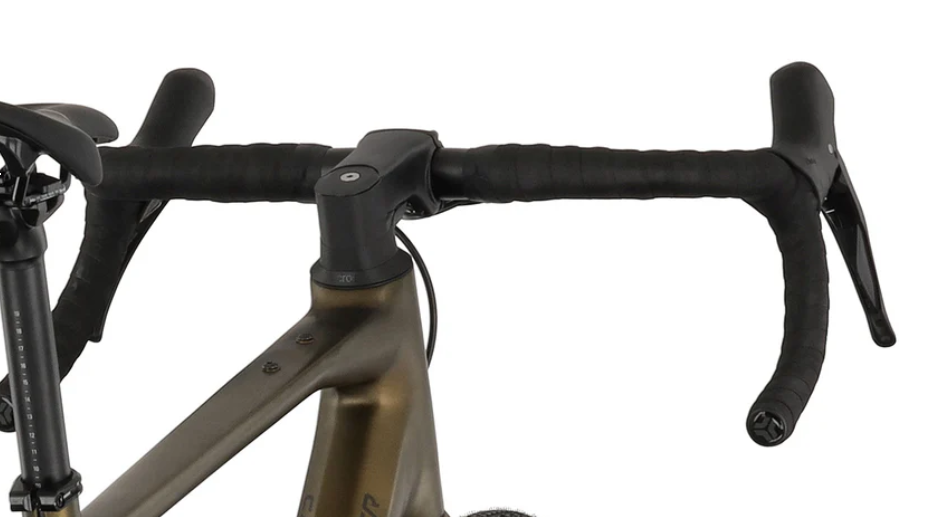

Handlebar |
Carver Drop Bar, XS/S/M: 420mm; L/XL: 440mm, 120mm drop, 75mm reach |
|
Stem |
Carver Custom Ahead, XS: 80mm; S/M: 90mm; L/XL: 100mm |
|
Grips |
Carver Grip Tape |
|
Headset |
Acros ICR ZS56/ZS56 |
|
Saddle |
Carver Performance Saddle |
|
Seatpost |
Alloy, 27.2 mm |
|
Front Hub |
Shimano HB-RS470, Centerlock, QR 100 mm |
|
Rear Hub |
Shimano FH-RS470, Centerlock, QR 135 mm |
|
Rims |
Schürmann SDR Gravel 622-21, aluminum, 32h, SV valve |
|
Spokes |
Protens C14 |
|
Exterior Features |
Carver Seatclamp |
|
Weight |
10.82 kg |
