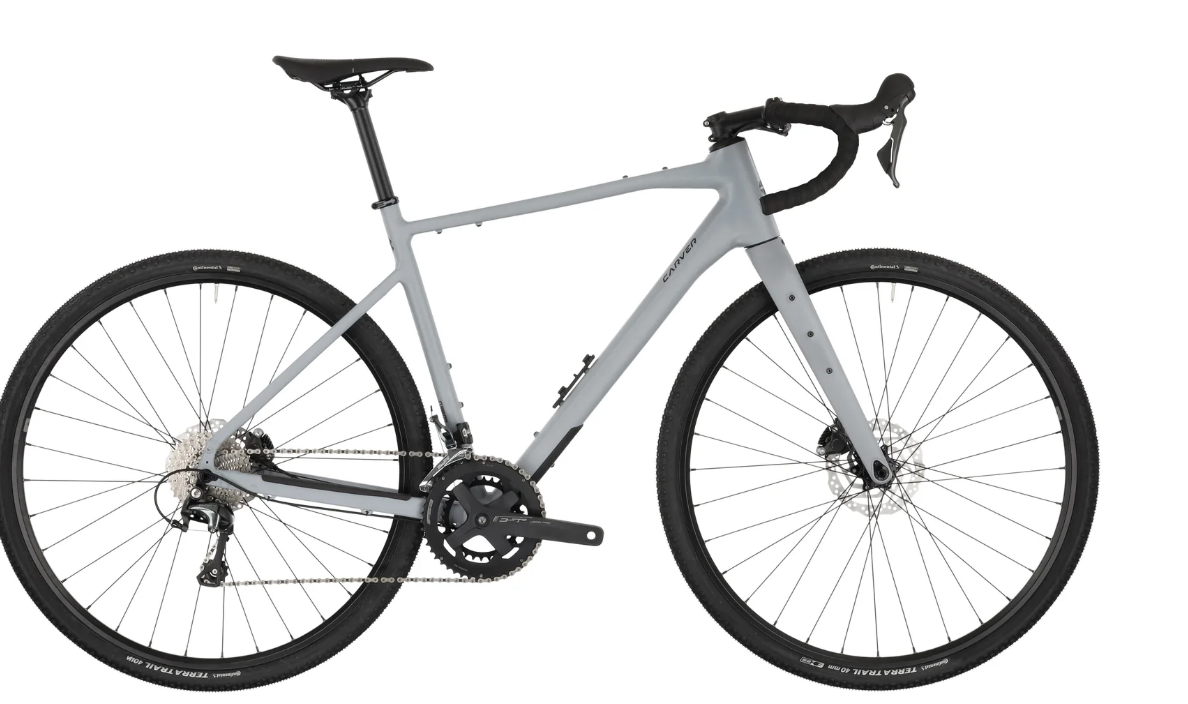

2025 Carver Gravel 200 – Gravel Bike
Specifications
|
Specification |
Details |
|
Model |
Gravel 200 |
|
Vehicle Category |
Gravel Bike |
|
Application |
Gravel, adventure, bikepacking, commuting, non-electric |
|
Starting Price (2025) |
€1,199.99 |
|
Sizes |
XS, S, M, L, XL |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Aluminum butted, internal cable routing |
|

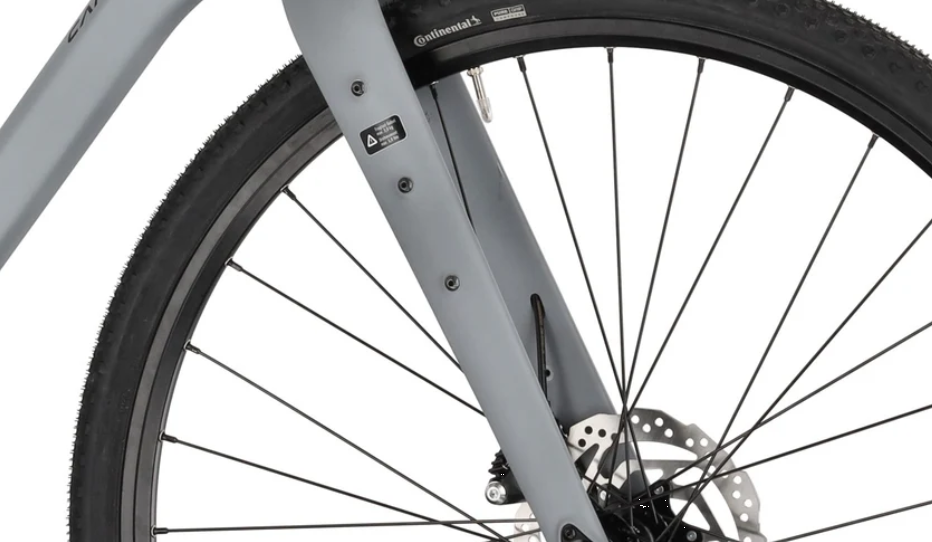

Fork |
Carver Full Carbon, tapered 1-1/8" to 1-1/2", 6 kg load capacity |
|

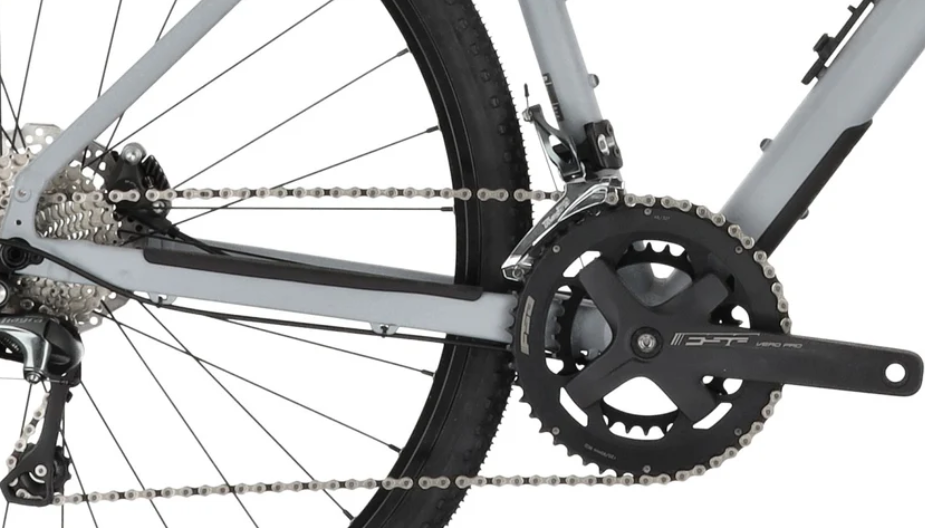

Crank |
FSA Omega Mega Exo, 50/34T, XS:170mm / S-M:172.5mm / L-XL:175mm |
|
Bottom Bracket |
FSA MegaExo BSA |
|
Chain |
KMC X10 |
|
Shifters |
Shimano Tiagra ST-4700, 2x10-speed |
|
Front Derailleur |
Shimano Tiagra FD-4700 |
|
Rear Derailleur |
Shimano Tiagra RD-4700, 10-speed |
|
Cassette |
Shimano Tiagra CS-HG500, 11-34T |
Components & Features
|
Specification |
Details |
|
Seating |
Carver Performance Saddle |
|
Cargo Capacity |
Fork 6 kg, frame mounts |
|
Wheels/Tyres |
28" Continental Terra Trail 40-622 front / Kenda Piedmont 40-622 rear, Schürmann SDR Light 622-19 rims, Shimano Tiagra CS-HG500 11-34t cassette |
|
Wheel Size |
28" |
|

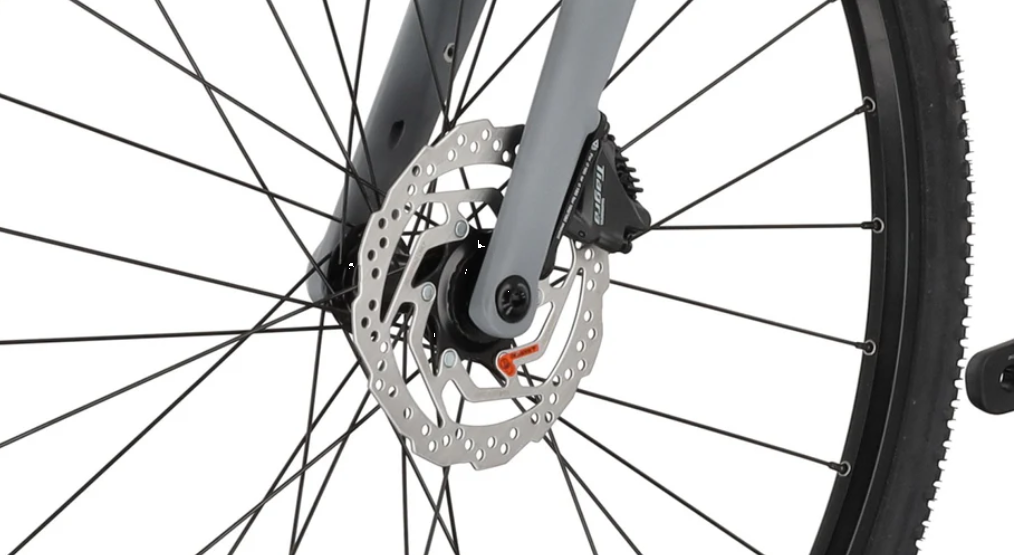

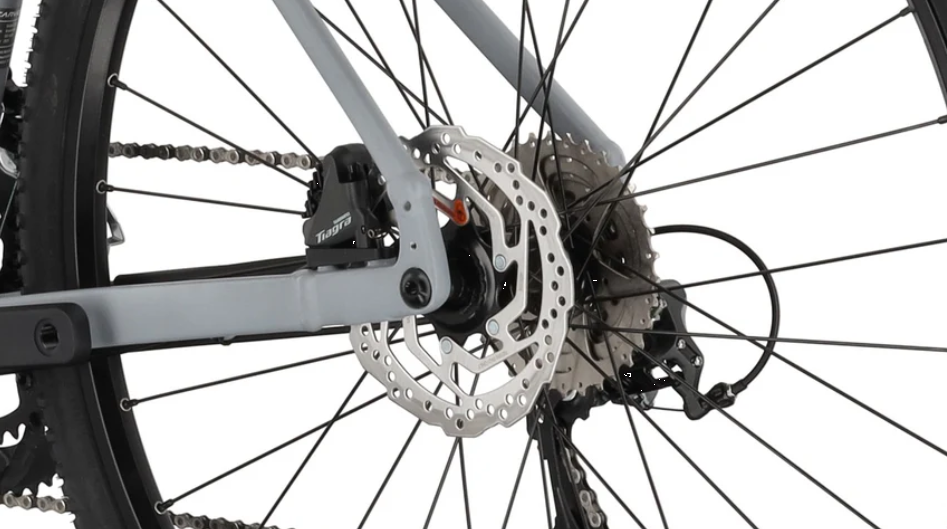

Brakes |
Shimano BR-4770 hydraulic flat-mount disc (160 mm rotors front & rear) |
|
Brake Levers |
Shimano Tiagra ST-4700 |
|
Handlebar |
Carver Drop Bar, XS-S-M: 420mm / L-XL: 440mm, 120mm drop, 75mm reach |
|
Stem |
Carver Custom Ahead, XS:80mm / S-M:90mm / L-XL:100mm |
|
Grips |
Carver Grip Tape |
|
Headset |
Acros ZS44 / ZS56 |
|
Saddle |
Carver Performance Saddle |
|
Seatpost |
Alloy, 27.2 mm |
|
Front Hub |
Shimano HB-RS470, Centerlock, 12x100 mm |
|
Rear Hub |
Shimano FH-RS470, Centerlock, 12x142 mm |
|
Rims |
Schürmann SDR Light 622-19, aluminum, 32h, SV valve |
|
Spokes |
Protens C14 |
|
Weight |
~10.2 kg (size M, without pedals) |
