Bajaj Maxima XL Cargo 2025 – Cargo Three-Wheeler
Full Specifications
|
Specification |
Details |
|
Engine |
236.2cc, 4-stroke, single-cylinder, BS6 Phase 2 (Petrol/CNG) |
|
Power |
10.06 hp @ 5000 rpm (Petrol), 9.52 hp @ 5000 rpm (CNG) |
|
Torque |
17.15 Nm @ 3500 rpm (Petrol), 16.25 Nm @ 3500 rpm (CNG) |
|
Transmission |
4-speed manual |
|
Top Speed |
60 km/h (est.) |
|
Mileage |
35 kmpl (Petrol), 30 km/kg (CNG, ARAI-claimed) |
|
Fuel Tank Capacity |
8L (Petrol), 40L water capacity (CNG, ~8 kg) |
|
Kerb Weight |
463 kg (Petrol), 485 kg (CNG) |
|
Dimensions (LxWxH) |
3237x1493x1818 mm |
|
Wheelbase |
2125 mm |
|
Ground Clearance |
170 mm |
|
Payload Capacity |
619 kg (Petrol), 558 kg (CNG) |
|
Suspension (Front/Rear) |
Telescopic hydraulic fork/Coil springs with shock absorbers |
|
Brakes (Front/Rear) |
Drum/Drum |
|
Tyres (Front/Rear) |
4.00x8, 6 PR, radial |
|
Variants |
Petrol, CNG |
|
Price (Ex-Showroom, Delhi) |
₹2,83,000–₹2,84,000(Year-2025) |

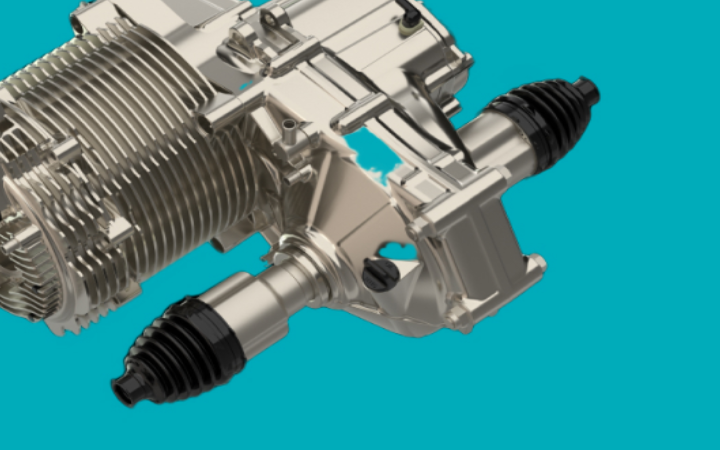

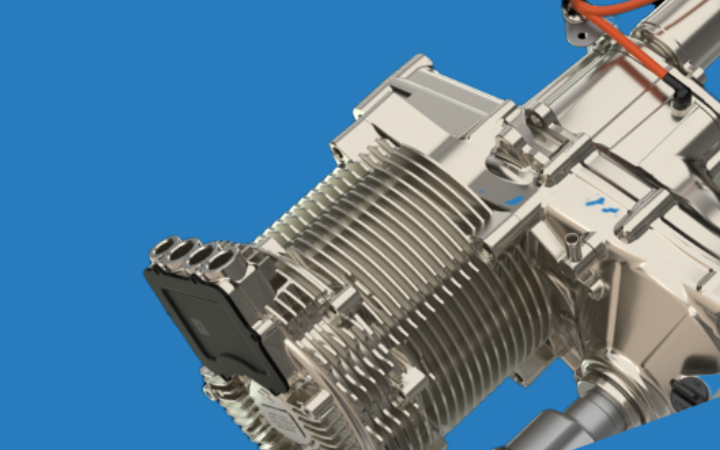

Engine & Transmission
|
Specification |
Details |
|
Engine Type |
4-stroke, single-cylinder, spark ignition, BS6 Phase 2 |
|
Displacement |
236.2cc |
|
Power Output |
10.06 hp @ 5000 rpm (Petrol), 9.52 hp @ 5000 rpm (CNG) |
|
Torque |
17.15 Nm @ 3500 rpm (Petrol), 16.25 Nm @ 3500 rpm (CNG) |
|
Fuel System |
Carburetor |
|
Transmission |
4-speed manual |
|
Clutch |
Wet, multi-plate |
Dimensions & Weight
|
Specification |
Details |
|
Overall Length |
3237 mm |
|
Overall Width |
1493 mm |
|
Overall Height |
1818 mm |
|
Wheelbase |
2125 mm |
|
Ground Clearance |
170 mm |
|
Kerb Weight |
463 kg (Petrol), 485 kg (CNG) |
|
Payload Capacity |
619 kg (Petrol), 558 kg (CNG) |
|
GVW |
1082 kg (Petrol), 1043 kg (CNG) |
Chassis & Suspension
|
Specification |
Details |
|
Frame Type |
Tubular steel chassis, wide body |
|
Front Suspension |
Telescopic hydraulic fork |
|
Rear Suspension |
Coil springs with shock absorbers |
Brakes & Tyres
|
Specification |
Details |
|
Front Brake |
Drum |
|
Rear Brake |
Drum |
|

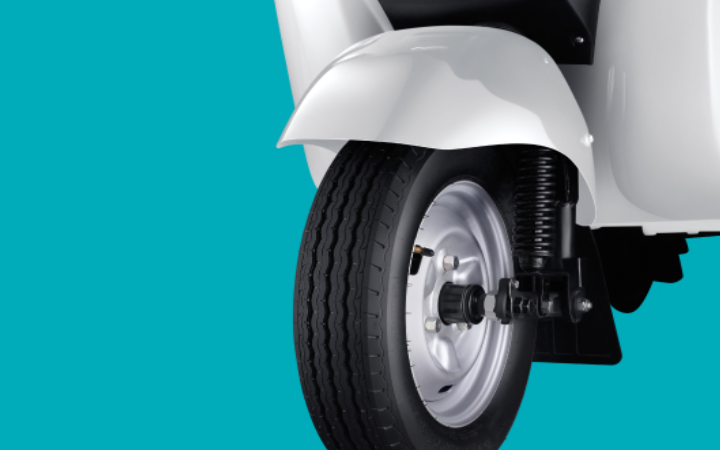

Front Tyre |
4.00x8, 6 PR, radial |
|
Rear Tyre |
4.00x8, 6 PR, radial |
|
Wheels |
8-inch steel |
Electricals & Features
|
Specification |
Details |
|
Battery |
12V, 32Ah |
|
Starting Method |
Electric and kick |
|
Instrumentation |
Analogue cluster |
|
Lighting |
Halogen headlamps, halogen indicators, tail lamps |
|
Features |
Mobile holder, provision for aftermarket music system, high payload
capacity, E20 fuel compatible (Petrol), BS6-compliant engine |
Safety Features
|
Specification |
Details |
|
Safety Features |
None specified (basic safety) |
Available Colors
|
Specification |
Details |
|
Colors |
Green, Yellow (commercial livery) |
