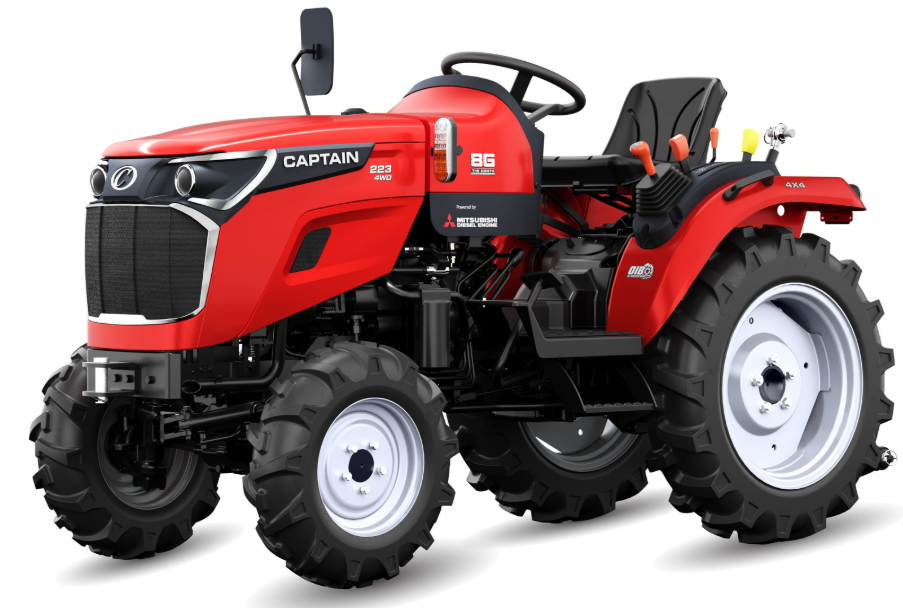

Captain 223 4WD – Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Captain 223 4WD |
|
Vehicle Category |
Mini Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tasks (Tilling, Spraying, Puddling, Haulage) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
3-cylinder, Diesel, Water-Cooled |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
3000 |
|
Engine Power |
22 HP |
|
Transmission Type |
Sliding Mesh |
|
Drive Type |
4WD |
|
Number of Gears |
9 Forward + 3 Reverse |
|
Forward Speed Range |
1.43–25.5 km/h |
|
Power Range |
22 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Disc Brakes |
|
Steering Type |
Hydrostatic Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
5 x 12 inches |
|
Rear Tyre Size |
8 x 18 inches |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
ADDC |
|
Three Point Linkage |
Category I |
|
Lifting Capacity |
750 kg |
|
PTO Type |
Independent |
|
PTO Speed |
540 RPM and 1000 RPM |
|
Clutch Type |
Single |
|
Engine Displacement |
952 cc |
|
Bore/Stroke |
76/70 mm |
|
Cooling System |
Water-Cooled |
|
Weight |
885 kg |
|
Wheelbase |
1500 mm |
|
Overall Length |
2884 mm |
|
Overall Width |
1080 mm |
|
Overall Height |
1470 mm |
|
Operator Platform |
Wide Foot with Rubber Mat |
|
Gear Lever Position |
Side Shift |
|
Differential Lock |
Yes |
|
Front Opening Bonnet |
Yes |
|
LED Lights Front & Tail |
Yes |
|
Projector Head Lamp |
Yes |
|
Rubber Pad Pedals |
Yes |
|
Accessories |
Downdraft Silencer, Heat Guard, Large Legroom, Foot Step, Fender Handle, LED Plough Light, Pull Type Parking Brakes, Short Turning Radius, Comfortable Seating |
|
Track Width |
710 mm (adjustable) |
