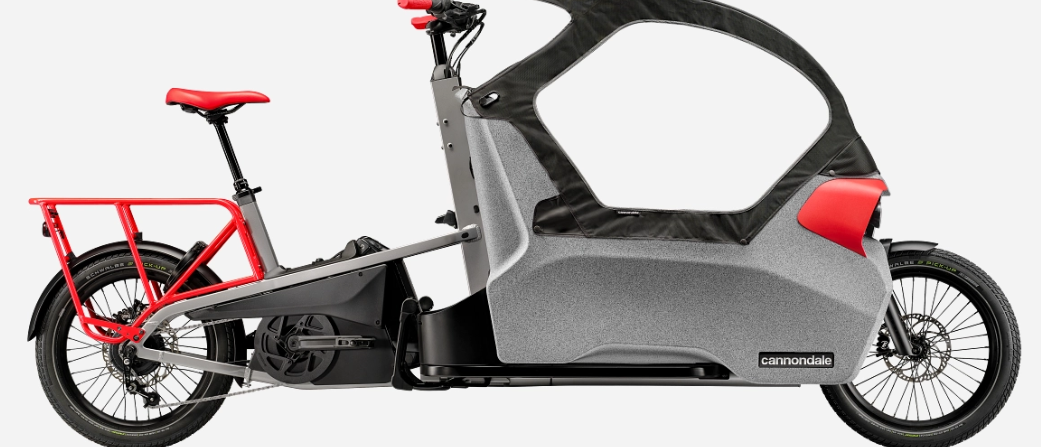

2025 Cannondale Wonderwagen Neo 1 – Electric Cargo Bike
Specifications
|
Specification |
Details |
|
Model |
Wonderwagen Neo 1 |
|
Vehicle Category |
Electric Cargo Bike |
|
Application |
City streets, bike lanes, around town |
|
Starting Price (2025) |
$4,999.00 USD |
|
Color Options |
Grey |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
SmartForm C2 Alloy low step cargo frame, cable steering, weatherproof double kid cabin, semi-integrated cable routing, external dual battery compatible, integrated kickstand, integrated utility compartment, kids seat compatible rear rack with Racktime SnapIt 2.0 & trailer hitch mount, dual LED front lights, triple bottle cage mount |
|

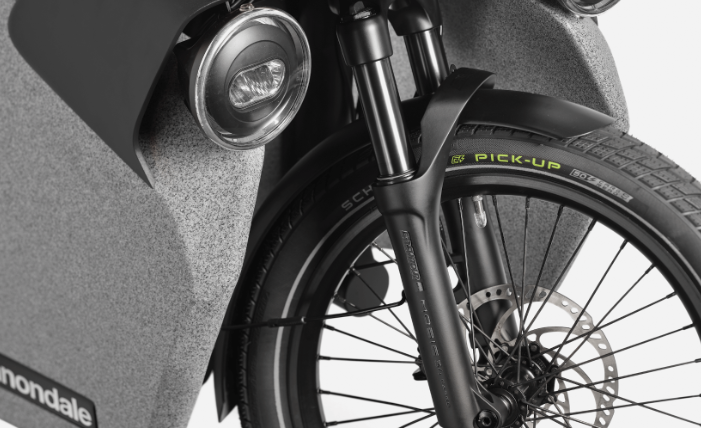

Fork |
SR Suntour Mobie 34 Cargo, BOOST DS, tapered, 80mm travel |
|
Drivetrain Compatibility |
Enviolo Heavy-Duty Continuously Variable Transmission internal gear hub |
|
Dropouts |
15x110mm (F), Enviolo Heavy-Duty CVT hub (R) |
|
Bottom Bracket |
Bosch Gen4 |
|
Crank |
FSA CK-320 for Bosch Gen4, 165mm, 48T |
|
Chain |
KMC Z1eHX EPT |
|
Rear Derailleur |
Enviolo Heavy-Duty Continuously Variable Transmission internal gear hub |
|
Shifters |
Enviolo Pro stepless manual twist shifter |
|
Cassette |
KMC, 17T |
Components & Features
|
Specification |
Details |
|
Seating |

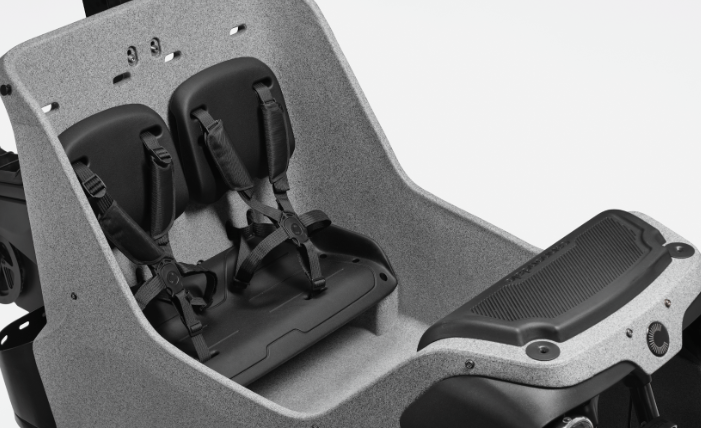

2 child seats with adjustable five-point harnesses and headrests, rear rack compatible with third child seat |
|
Fuel Type |
Electric (725Wh battery, dual battery compatible) |
|
Cargo Capacity |
Front cabin: 100 kg (2 kids or cargo), rear rack: 27 kg (1 child or gear) |
|
Wheels/Tyres |
Schwalbe Pick-Up, 20x2.6" (65-406) |
|
Wheel Size |
20" in |
|
Brakes |
Magura MT C, 4-piston hydraulic disc, 180mm front rotor, 203mm rear rotor |
|
Brake Levers |
Magura MT C hydraulic disc |
|
Handlebar |
Cannondale Low-Rise Urban, butted 6061 Alloy, 31.8mm, 25mm rise, 35° sweep, 680mm |
|
Stem |
Cannondale 3, Alloy, 31.8mm clamp |
|
Headset |
Acros double sealed & tapered industrial bearings, internal cable routing |
|
Saddle |
Wonderwagen Comfort Saddle |
|
Seatpost |
Cannondale DownLow dropper, internal routing, 31.6, 150mm |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale Ergo Performance, Lock-On |
|
Front Hub |
Shimano HB-TC500-B, cartridge sealed bearings, 15x110mm |
|
Rear Hub |
Enviolo Heavy-Duty Continuously Variable Transmission internal gear hub |
|
Rims |
Heavy Duty, Alloy, double wall, 36 hole, 35mm internal width, disc-specific |
|
Spokes |
DT Swiss Champion, 13g |
|
Pedals |
Cannondale Urban |
|
Exterior Features |
Bosch Connect Module, Garmin Radar Sensor w/ rear light, high-visibility LED dual headlights, front and rear fenders, bell, Schwalbe Air Plus high retention inner tubes, Bosch Dual-Battery Compatible, detachable rain cover available separately |
|
Drive Unit |
Bosch Cargo Line, 25 km/h |
|
Battery |
Bosch PowerPack, 725Wh |
|
Charger |
Bosch 4A |
|
Display |
Bosch LED remote + Smartphone Grip |
|
Weight |
70 kg (size OS) |
