Specification

Details

Model

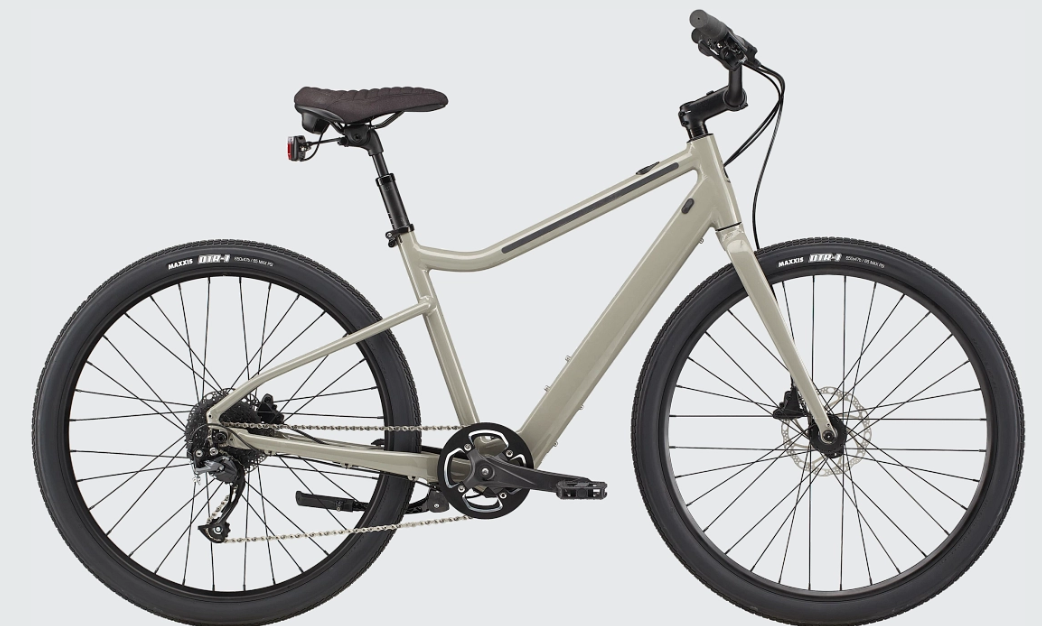

Treadwell Neo

Vehicle Category

Electric Fitness Bike

Application

Electric urban riding, leisurely rides

Starting Price (2025)

$2,000.00 USD

Color Options

Stealth Grey

Specification

Details

Frame

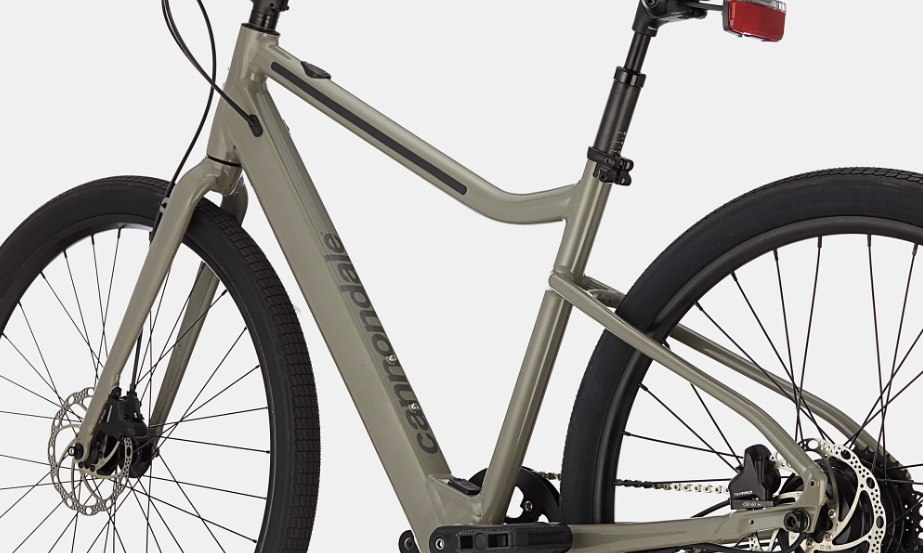

SmartForm C3 Alloy, low standover Ride-Easy geometry, internal downtube battery, hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts, kickstand mount

Fork

SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts

Drivetrain Compatibility

microSHIFT, 9-speed

Dropouts

Quick Release (front and rear)

Bottom Bracket

Cartridge, square taper

Crank

Prowheel, 38T

Chain

KMC E9T, 9-speed

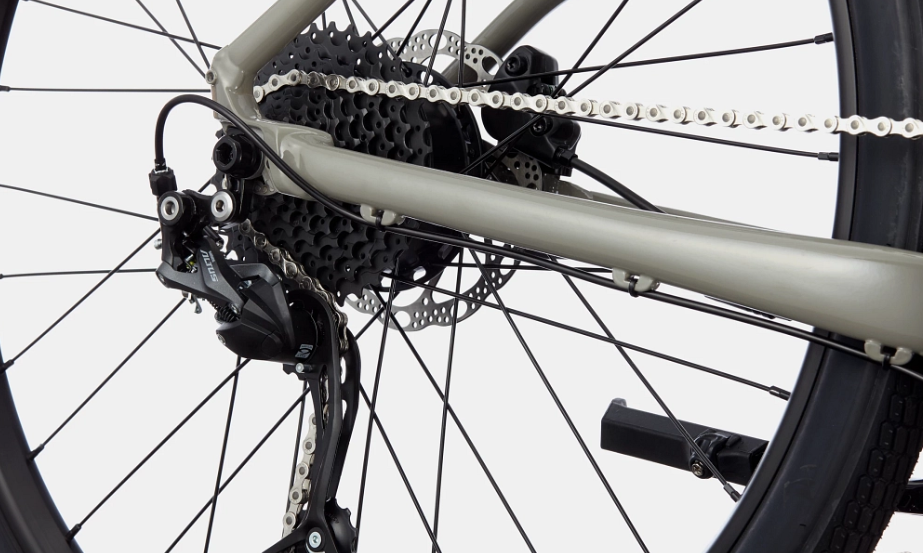

Rear Derailleur

microSHIFT M45S

Shifters

microSHIFT M859, 9-speed

Cassette

microSHIFT, 11-36, 9-speed

Specification

Details

Seating

1 passenger (Cannondale Treadwell, 170mm, steel rails)

Fuel Type

Electric (Mahle X35, 250Wh battery)

Cargo Capacity

Rack/fender mounts, kickstand mount

Wheels/Tyres

Maxxis DTR-1, 650bx47c

Wheel Size

27.5" in

Brakes

Tektro HD-R280 hydraulic disc, 160/160mm rotors

Brake Levers

Tektro hydraulic disc

Handlebar

Cannondale Cruise Control riser, 6061 alloy, 31.8mm, 15° back, 740mm

Stem

Cannondale 3 with Intellimount, alloy, 31.8mm clamp

Headset

FSA, Alloy, 1-1/8" Ahead, semi-integrated

Saddle

Cannondale Treadwell, 170mm, steel rails

Seatpost

Promax Suspension Seatpost, 31.6, 40mm

Seatpost Clamp

Integrated

Grips

Cannondale Comfort

Front Hub

Formula, QR

Rear Hub

Formula, QR

Rims

Cannondale Disc, double wall w/eyelet, 32h

Spokes

Stainless Steel, 13g

Exterior Features

Herrmans H-Trace rear light, Urban Armor frame bumpers, rack/fender mounts, kickstand mount

Connectivity

Cannondale Wheel Sensor

Drive Unit

Mahle X35 250W

Battery

Mahle X35, 250Wh

Charger

Mahle X35

Display

Mahle iWOC ONE integrated controller, iWOC Trio, smartphone app with Intellimount stem
