2025 Cannondale Trail Neo 4 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Trail Neo 4 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Conquering trails, chasing adventure, around-town errands and fun |
|
Starting Price (2025) |
$2,925.00 USD |
|
Color Options |
Quicksand |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
SmartForm C2 Alloy, removable 500Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection, headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts |
|
Fork |
SR Suntour XCM 32, 100mm, Coil, 46mm offset |
|
Drivetrain Compatibility |
Shimano CUES U3020, 1x9-speed |
|
Dropouts |
15x110mm thru-axle (F), 9x135mm QR (R) |
|
Crank |
Bosch Gen3, 170mm, 34T |
|
Chain |
KMC E500 |
|
Rear Derailleur |
Shimano CUES U3020 |
|
Shifters |
Shimano CUES U4000, 9-speed |
|
Cassette |
Shimano CUES LG300, 11-41, 9-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Cannondale Ergo XC) |
|
Fuel Type |
Electric (Bosch PowerTube, 500Wh) |
|
Cargo Capacity |
Headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts |
|
Wheels/Tyres |
(F) Maxxis Ardent, 27.5x2.4" (SM) / 29x2.4" (MD, LG, XL), EXO Protection / (R) Maxxis Ardent, 27.5x2.4" (SM) / 29x2.4" (MD, LG, XL), EXO Protection |
|
Wheel Size |
27.5" (SM) / 29" (MD, LG, XL) |
|
Brakes |
Riderever Attack-U-OE, 2-piston hydraulic disc, 180/180mm rotors |
|
Brake Levers |
Riderever Attack-U-OE, hydraulic disc |
|
Handlebar |
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm, 31.8mm |
|
Stem |
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0° |
|
Headset |
Integrated, 1-1/8 to 1.5", sealed bearings |
|
Saddle |
Cannondale Ergo XC |
|
Seatpost |
Cannondale 3, 6061 Alloy, 31.6x350mm |
|
Seatpost Clamp |
Integrated |
|
Grips |
Fabric Funguy |
|
Front Hub |
Shimano M4050, 15x110mm |
|
Rear Hub |
Shimano QC300, 9x135mm QR |
|
Rims |
WTB STX i25 TCS, 32h, tubeless ready |
|
Spokes |
DT Swiss Champion 2.0 |
|
Exterior Features |
Pre-installed light cables, headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts |
|

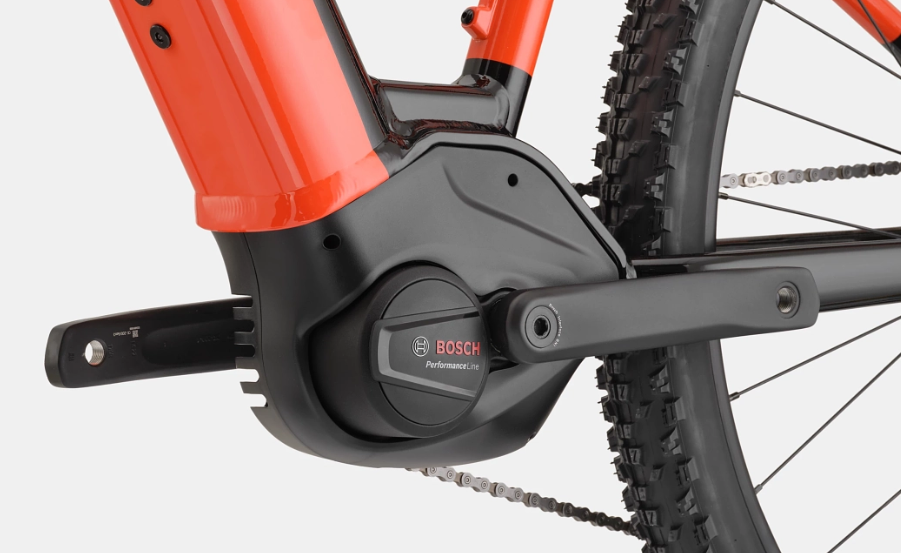

Drive Unit |
Bosch Active Line Plus 250W, up to 50Nm torque |
|
Battery |
Bosch PowerTube, 500Wh |
|
Charger |
Bosch 4A |
|
Display |
Bosch Purion 200 |
|
Range |
Up to 125 km (77 mi) |
