Specification

Details

Model

Trail Neo 3 Remixte

Vehicle Category

Electric Mountain Bike

Application

Low-impact trails, up and down hills

Starting Price (2025)

$3,200.00 USD

Color Options

Black

Specification

Details

Frame

SmartForm C1 Alloy, Low-step Ride-Easy geometry, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, KickFlip hidden kickstand mount, skid plate, rack/fender mounts

Fork

SR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset

Drivetrain Compatibility

Shimano Deore M4100, 1x10-speed

Dropouts

15x110mm thru-axle (F), 12x148mm thru-axle (R)

Crank

FSA Bosch E-Bike w/ custom Ai offset, 34T

Chain

Shimano HG54, 10-Speed

Rear Derailleur

Shimano Deore M4100

Shifters

Shimano Deore M4100, 10-speed

Cassette

Shimano Deore, 11-42, 10-speed

Specification

Details

Seating

1 passenger (Cannondale Ergo XC)

Fuel Type

Electric (Bosch PowerTube, 500Wh)

Cargo Capacity

KickFlip hidden kickstand mount, rack/fender mounts

Wheels/Tyres

(F) Maxxis Ardent, 27.5x2.4" (SM) / 29x2.4" (MD, LG), Wire 60TPI Exo / (R) Maxxis Ardent, 27.5x2.4" (SM) / 29x2.4" (MD, LG), Wire 60TPI Exo

Wheel Size

27.5" (SM) / 29" (MD, LG)

Brakes

Shimano MT200 hydraulic disc, 180/180mm RT10 rotors

Brake Levers

Shimano MT200 hydraulic disc

Handlebar

Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm

Stem

Cannondale 3, 6061 Alloy, 31.8, 0°

Headset

Integrated Sealed Bearing, Tapered

Saddle

Cannondale Ergo XC

Seatpost

Cannondale 4, 6061 Alloy, 31.6x350mm

Seatpost Clamp

Integrated

Grips

Fabric Funguy

Front Hub

Shimano MT400, 15x110mm thru-axle

Rear Hub

Shimano MT400, 12x148mm thru-axle

Rims

WTB STX i25 TCS, 32h, tubeless ready

Spokes

DT Swiss Champion

Exterior Features

Pre-installed light cables, KickFlip hidden kickstand mount, rack/fender mounts

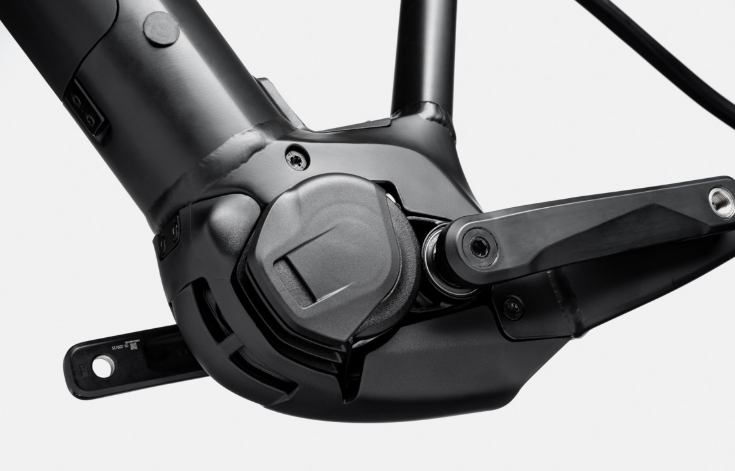

Drive Unit

Bosch Performance Line CX 250W

Battery

Bosch PowerTube, 500Wh

Charger

Bosch 2A

Display

Bosch Purion

Range

Up to 78 km (48 mi)
