Specification

Details

Model

Trail Neo 3

Vehicle Category

Electric Mountain Bike

Application

Electric trail and commuting

Starting Price (2025)

$3,000.00 USD

Color Options

Orange

Specification

Details

Frame

SmartForm C2 Alloy, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection, headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts

Fork

SR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset

Drivetrain Compatibility

Shimano CUES U6000, 10-speed

Dropouts

15x110mm thru-axle (front), 9x135mm QR (rear)

Crank

FSA Bosch Gen3, 170mm, 38T

Chain

KMC E500

Rear Derailleur

Shimano CUES U6000

Shifters

Shimano CUES U6000, 10-speed

Cassette

Shimano CUES LG400, 11-48, 10-speed

Specification

Details

Seating

1 passenger (Cannondale Ergo XC)

Fuel Type

Electric (Bosch PowerTube, 625Wh)

Cargo Capacity

Headtube rack mounts, rack & fender mounts, 40mm Pletscher kickstand mount

Wheels/Tyres

Maxxis Ardent, 29x2.4" (27.5x2.4" - SM), EXO Protection

Wheel Size

29" (27.5" - SM)

Brakes

Shimano MT200 hydraulic disc, 180/180mm RT30/RT-EM300 rotors

Brake Levers

Shimano MT200 hydraulic disc

Handlebar

Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm, 31.8mm

Stem

Cannondale 3, 3D Forged 6061 alloy, 1-1/8", 31.8, 0°

Headset

Integrated, 1-1/8 to 1.5", sealed bearings

Saddle

Cannondale Ergo XC

Seatpost

Cannondale 3, 6061 Alloy, 31.6x350mm

Seatpost Clamp

Integrated

Grips

Fabric Funguy

Front Hub

Shimano MT400, 15x110mm thru-axle

Rear Hub

Shimano UR600, 9x135mm QR

Rims

WTB STX i25 TCS, 32h, tubeless ready

Spokes

DT Swiss Champion 2.0

Exterior Features

Pre-installed light cables, integrated front running light, headtube rack mounts, rack & fender mounts, 40mm Pletscher kickstand mount

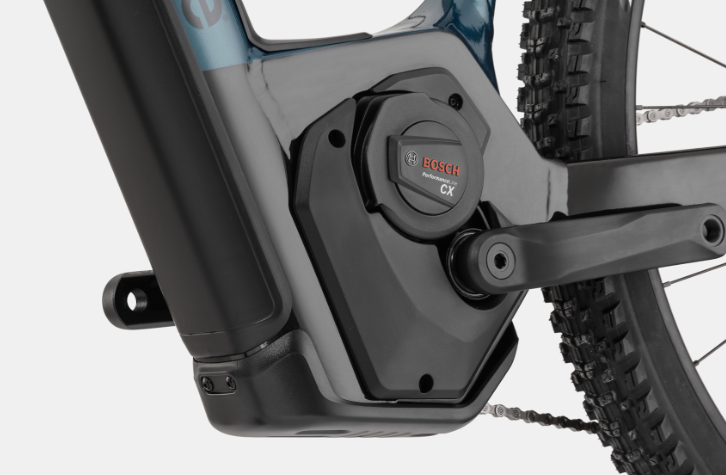

Drive Unit

Bosch Performance Line

Battery

Bosch PowerTube, 625Wh

Charger

Bosch 4A

Display

Bosch Intuvia w/LED remote
