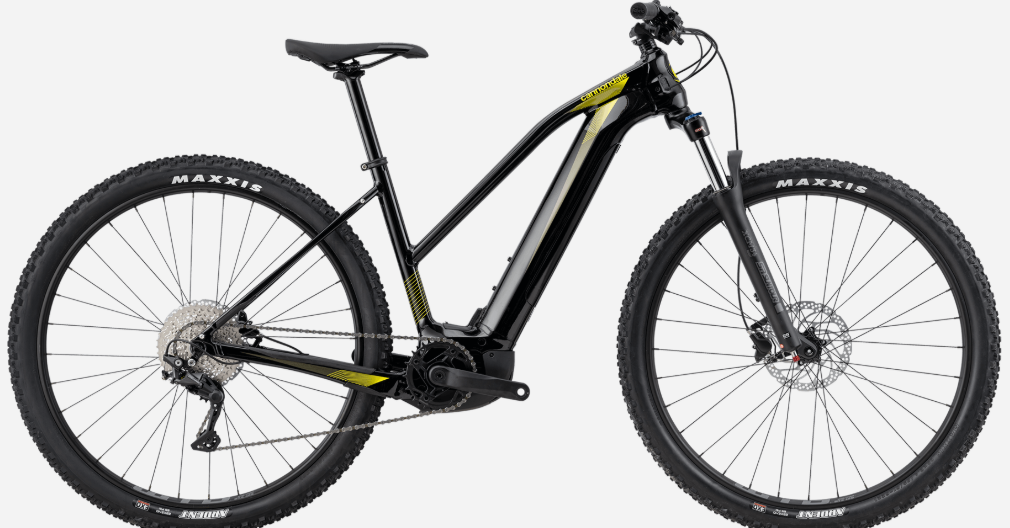

2025 Cannondale Trail Neo 2 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Trail Neo 2 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Conquering trails, chasing adventure, around-town errands and fun |
|
Starting Price (2025) |
$3,625.00 USD |
|
Color Options |
Deep Teal |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
SmartForm C1 Alloy, removable 625Wh downtube battery (dual battery ready), integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection, headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts |
|
Fork |
SR Suntour XCR 34 Boost, 100mm, Coil, 46mm offset |
|
Drivetrain Compatibility |
Shimano CUES U6000, 1x10-speed |
|
Dropouts |
15x110mm thru-axle (F), 12x148mm thru-axle (R) |
|
Crank |
FSA Bosch Gen4, 160mm, 34T |
|
Chain |
KMC E500 |
|
Rear Derailleur |
Shimano CUES U6000 |
|
Shifters |
Shimano CUES U6000, 10-speed |
|
Cassette |
Shimano CUES LG400, 11-48, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Fizik Freeway Fit) |
|
Fuel Type |
Electric (Bosch PowerTube, 625Wh) |
|
Cargo Capacity |
Headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts |
|
Wheels/Tyres |
(F) Maxxis Rekon, 27.5x2.6" (SM) / 29x2.6" (MD, LG, XL), EXO Protection / (R) Maxxis Rekon, 27.5x2.6" (SM) / 29x2.6" (MD, LG, XL), EXO Protection |
|
Wheel Size |
27.5" (SM) / 29" (MD, LG, XL) |
|
Brakes |
Shimano MT400, hydraulic disc, 203/203mm Deore RT64 rotors |
|
Brake Levers |
Shimano MT400 hydraulic disc |
|
Handlebar |
Cannondale 3 Riser, 6061 Alloy, 20mm rise, 8° sweep, 4° rise, 800mm, 35mm |
|
Stem |
Cannondale, 3D Forged 6061 Alloy, 1-1/8", 35.0, internal cables |
|
Headset |
Acros, integrated, 1-1/8 to 1.8", sealed bearings |
|
Saddle |
Fizik Freeway Fit |
|
Seatpost |
Cannondale 3, 6061 Alloy, 31.6x350mm |
|
Seatpost Clamp |
Integrated |
|
Grips |
Fabric Funguy |
|
Front Hub |
Shimano MT400, 15x110mm thru-axle |
|
Rear Hub |
Shimano UR600, 12x148mm thru-axle |
|
Rims |
WTB STX i30 TCS, 32h, tubeless ready |
|
Spokes |
DT Swiss Champion 2.0 |
|
Exterior Features |
Pre-installed light cables, headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts |
|
Drive Unit |
Bosch Performance Line CX 250W, up to 85Nm torque |
|
Battery |
Bosch PowerTube, 625Wh |
|
Charger |
Bosch 4A |
|
Display |
Bosch Kiox 300 w/ LED Remote |
|
Range |
Up to 150 km (93 mi) |
