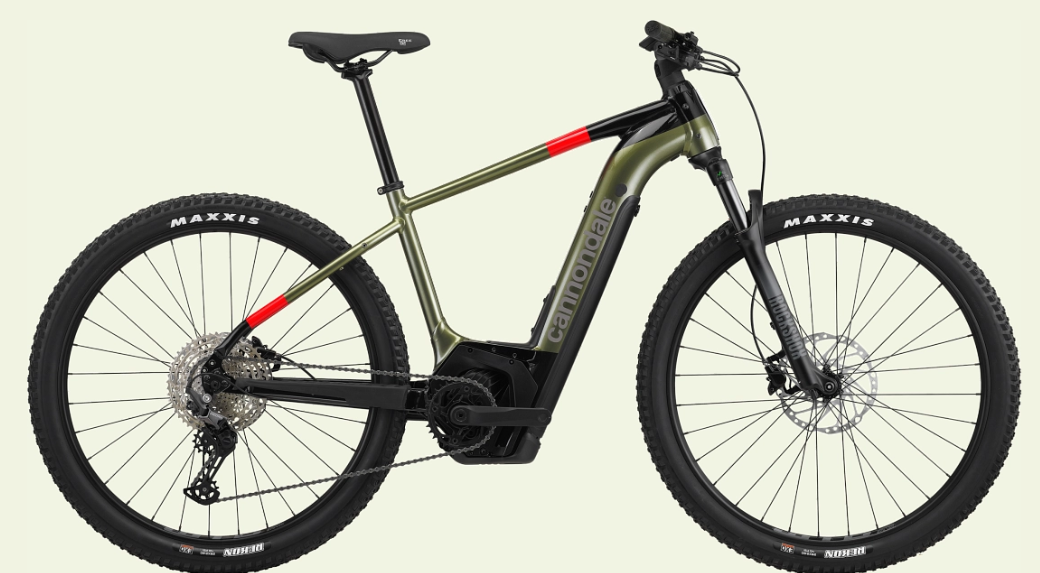

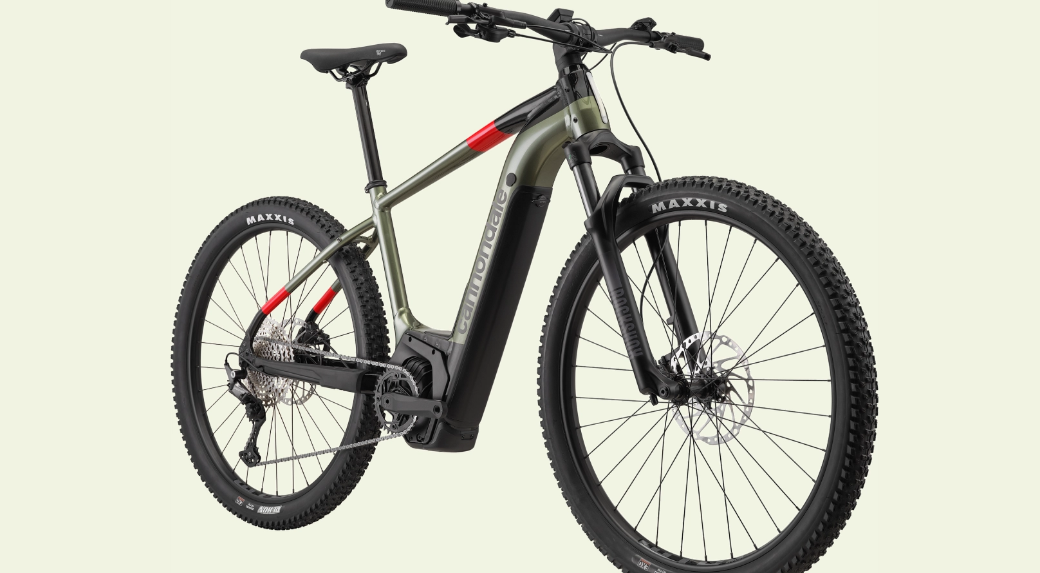

2025 Cannondale Trail Neo 1 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Trail Neo 1 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Low-impact trails, near and far |
|
Starting Price (2025) |
$4,500.00 USD |
|
Color Options |
Mantis |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
SmartForm C1 Alloy, removable 750Wh downtube battery (dual battery ready), integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection, headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts |
|
Fork |
RockShox 35 Silver, 100mm, Coil, 15x110mm thru-axle, tapered steerer, 44mm offset |
|
Drivetrain Compatibility |
Shimano Deore M6100, 1x12-speed |
|
Dropouts |
15x110mm thru-axle (F), 12x148mm thru-axle (R) |
|
Crank |
FSA for Bosch G4 |
|
Chain |
Shimano Deore M6100, 12-speed |
|
Rear Derailleur |
Shimano Deore M6100 |
|
Shifters |
Shimano Deore M6100, 12-speed |
|
Cassette |
Shimano Deore M6100, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Selle Royal Vivo Active Ergo Reflective) |
|
Fuel Type |
Electric (Bosch PowerTube, 750Wh) |
|
Cargo Capacity |
Headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts |
|
Wheels/Tyres |
(F) Maxxis Rekon, 27.5x2.6" (SM) / 29x2.6" (MD, LG, XL), EXO Protection, tubeless ready / (R) Maxxis Rekon, 27.5x2.6" (SM) / 29x2.6" (MD, LG, XL), EXO Protection, tubeless ready |
|
Wheel Size |
27.5" (SM) / 29" (MD, LG, XL) |
|
Brakes |
Tektro M807 4-piston hydraulic disc brakes, 203/203 TRP Rotors |
|
Brake Levers |
Tektro M807 hydraulic disc |
|

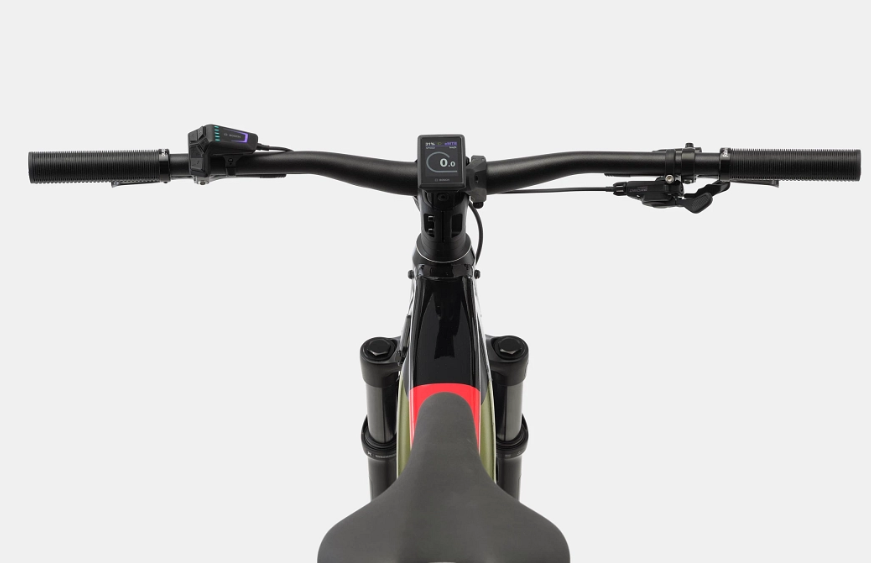

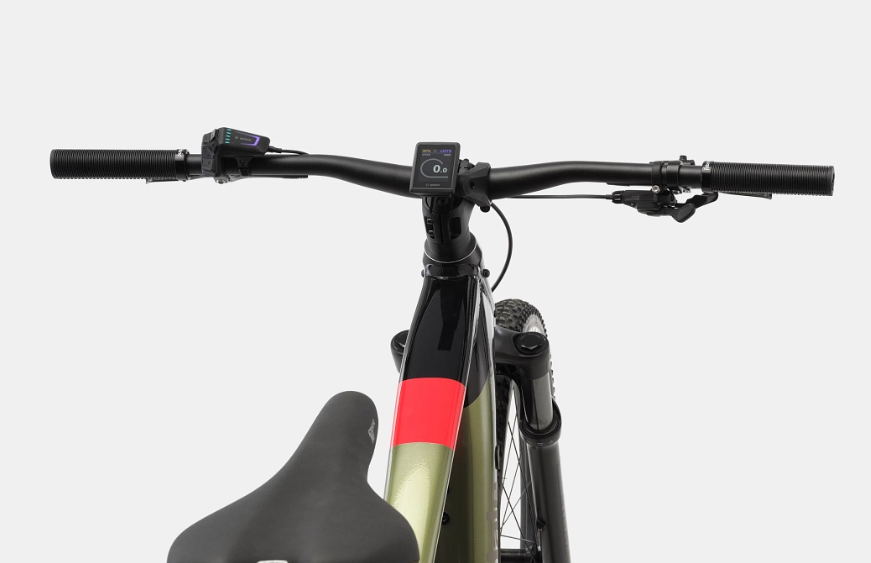

Handlebar |
Cannondale 2 Riser, 6061 Alloy, 35mm OD, 25mm rise, 8° sweep, 5° rise, 780mm |
|
Stem |
Cannondale 2, 3D Forged 6061 Alloy, 1-1/8", 35mm, 0°, internal cable guide |
|
Headset |
Integrated, 1-1/8 to 1.8", sealed angular contact bearings |
|
Saddle |
Selle Royal Vivo Active Ergo Reflective |
|
Seatpost |
Cannondale 4, 6061 Alloy, 31.6x350mm |
|
Seatpost Clamp |
Integrated |
|
Grips |
Fabric Funguy |
|
Front Hub |
Shimano MT400, 15x110mm thru-axle |
|
Rear Hub |
Shimano MT510, 12x148mm thru-axle |
|
Rims |
WTB STX i30, 32h, tubeless ready |
|
Spokes |
DT Swiss Champion 2.0 |
|
Exterior Features |
Pre-installed light cable, headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts |
|

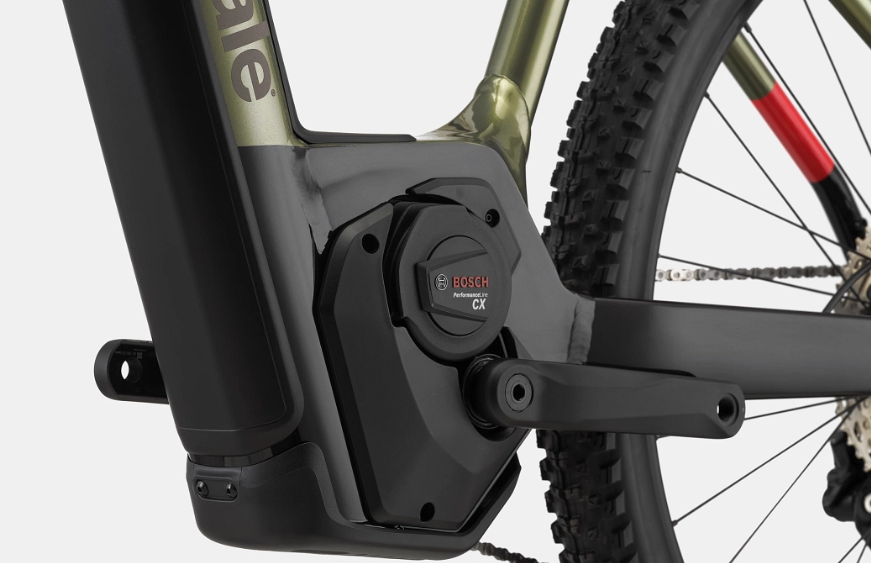

Drive Unit |
Bosch Performance Line CX 250W |
|
Battery |
Bosch PowerTube, 750Wh |
|
Charger |
Bosch 4A |
|
Display |
Bosch Kiox 300 w/ LED remote |
|
Range |
Up to 175 km (108.7 mi) |
