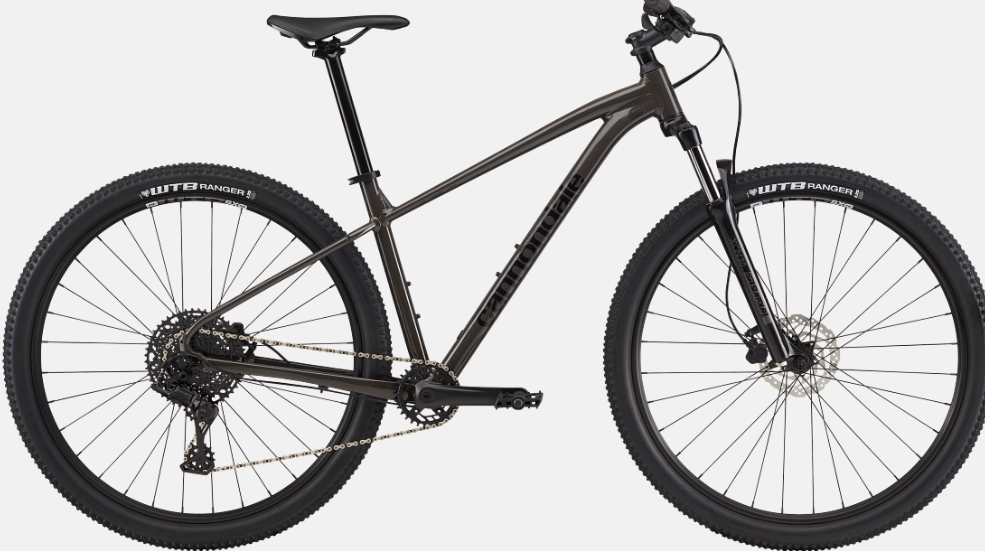

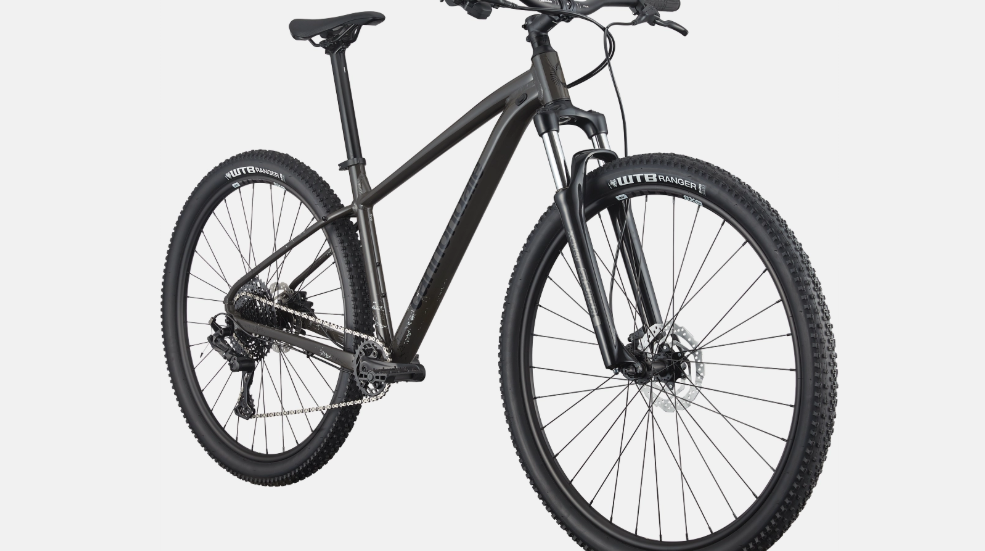

2025 Cannondale Trail 5 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Trail 5 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding |
|
Starting Price (2025) |
$960.00 USD |
|
Color Options |
Smoke Black |
Frame & Drivetrain
|
Specification |
Details |
|

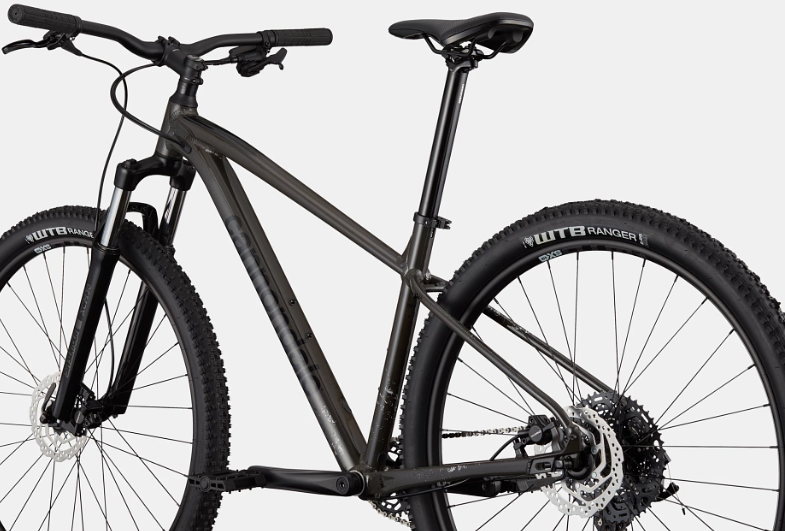

Frame |
SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73, rear rack mounts, KickFlip hidden 18mm 2-bolt kickstand mount |
|
Fork |
SR Suntour XCM, 100mm, coil, 42mm offset (27.5") 46mm offset (29") |
|
Drivetrain Compatibility |
microSHIFT Advent X, 10-speed |
|
Dropouts |
Quick Release (front and rear) |
|
Bottom Bracket |
Sealed cartridge bearing, square taper |
|
Crank |
Prowheel, Charm 30T |
|
Chain |
KMC X10, 10-speed |
|

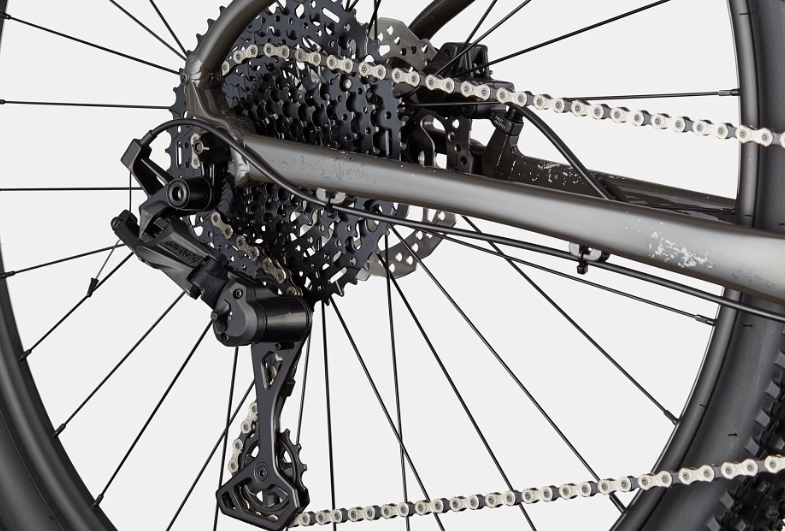

Rear Derailleur |
microSHIFT Advent X |
|
Shifters |
microSHIFT Advent X, 10-speed |
|
Cassette |
microSHIFT, 11-48, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Cannondale Stage 3) |
|
Cargo Capacity |
Rear rack mounts, KickFlip hidden 18mm 2-bolt kickstand mount |
|
Wheels/Tyres |
WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound |
|
Wheel Size |
29" (27.5" - XS, SM) |
|
Brakes |
Tektro M275 hydraulic disc, 160/160mm rotors |
|
Brake Levers |
Tektro hydraulic disc |
|

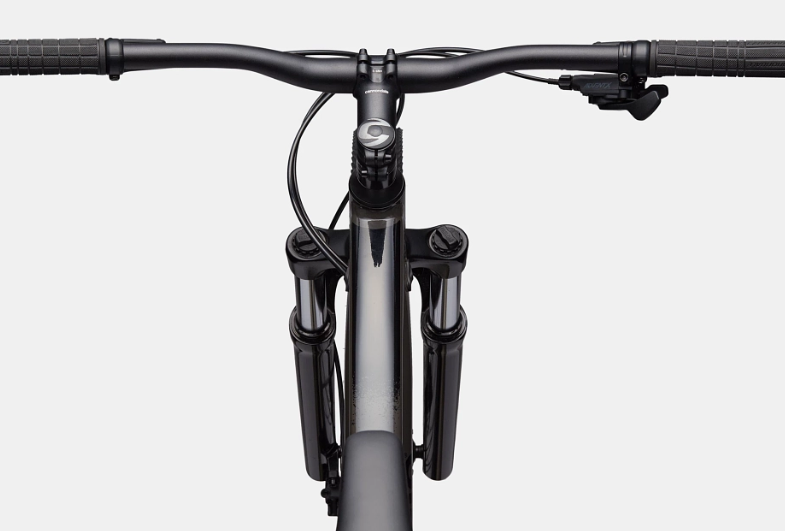

Handlebar |
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm |
|
Stem |
6061 Alloy, 31.8, 7° |
|
Headset |
Semi-Integrated, 1-1/8" |
|
Saddle |
Cannondale Stage 3 |
|
Seatpost |
Cannondale 3, 6061 Alloy, 31.6x350mm (XS-SM), 400mm (MD-XL) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale Dual-Density |
|
Front Hub |
Shimano HB-TX505, QR |
|
Rear Hub |
Shimano FH-TX505, QR |
|
Rims |
WTB SX19, 32h |
|
Spokes |
Stainless Steel, 14g |
|
Exterior Features |
Rear rack mounts, KickFlip hidden 18mm 2-bolt kickstand mount |
