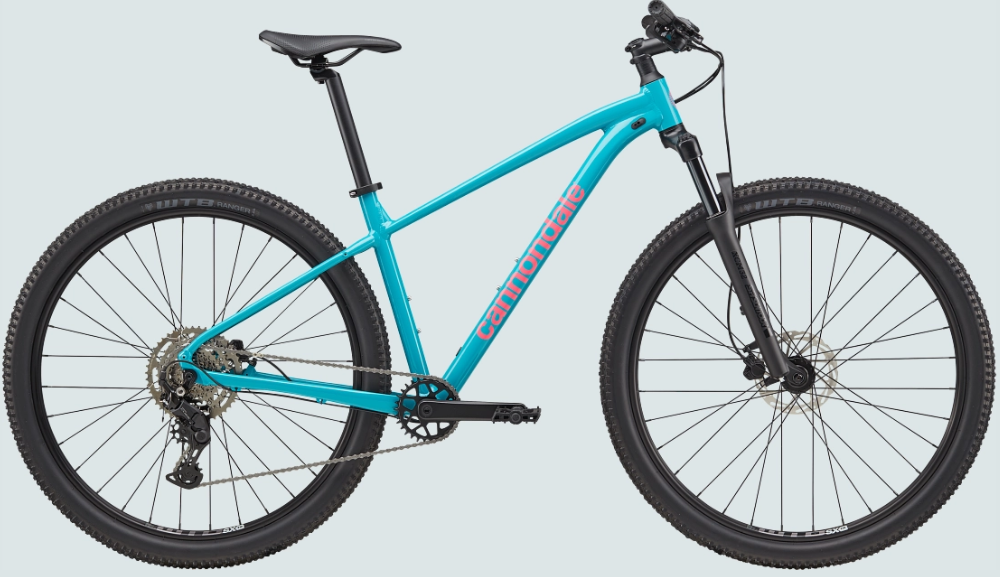

2025 Cannondale Trail 2 – Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Trail 2 |
|
Vehicle Category |
Mountain Bike |
|
Application |
Trail riding, light commuting |
|
Starting Price (2025) |
$750.00 USD |
|
Color Options |
Ion Blue |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL) |
|
Fork |
SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5") |
|
Drivetrain Compatibility |
Shimano CUES U4000, 1x9-speed |
|
Dropouts |
15x100mm thru-axle (F), 12x142mm thru-axle (R) |
|
Bottom Bracket |
ProWheel, square taper |
|
Crank |
Prowheel, Charm 30T |
|
Chain |
KMC X9, 9-speed |
|
Rear Derailleur |
Shimano CUES U4000 |
|
Shifters |
Shimano CUES U4000, 9-speed |
|
Cassette |
Shimano CUES, 11-46, 9-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Cannondale Trail) |
|
Cargo Capacity |
KickFlip hidden 18mm 2-bolt kickstand mount, rack/fender mounts |
|
Wheels/Tyres |
(F) WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL), Comp, 30 TPI / (R) WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL), Comp, 30 TPI |
|
Wheel Size |
27.5" (XS, S) / 29" (M, L, XL) |
|
Brakes |
Tektro M275 hydraulic disc, 160/160mm rotors |
|
Brake Levers |
Tektro hydraulic disc |
|
Handlebar |
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm |
|
Stem |
Cannondale 4, 6061 Alloy, 31.8, 6° |
|
Headset |
Semi-Integrated, 1-1/8" |
|
Saddle |
Cannondale Trail |
|
Seatpost |
Cannondale 4, 6061 Alloy, 31.6 |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale |
|
Front Hub |
Formula DC-51, 15x100mm |
|
Rear Hub |
Formula DC-1422, 12x142mm |
|
Rims |
WTB SX19, 32h |
|
Spokes |
Stainless Steel, 14g |
|
Exterior Features |
KickFlip hidden 18mm 2-bolt kickstand mount, rack/fender mounts |
