Specification

Details

Model

Trail 1

Vehicle Category

Mountain Bike

Application

Trail riding, light commuting, bopping around town, having a blast

Starting Price (2025)

$950.00 USD

Color Options

Black

Specification

Details

Frame

Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)

Fork

SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")

Drivetrain Compatibility

Shimano CUES U6000, 1x10-speed

Dropouts

15x110mm thru-axle (F), 12x142mm thru-axle (R)

Bottom Bracket

ProWheel, square taper

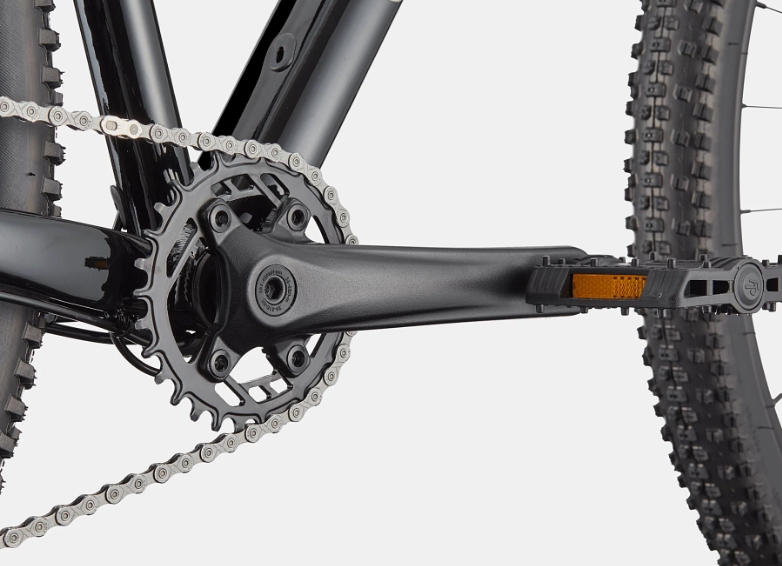

Crank

Prowheel, Charm 30T

Chain

KMC X10, 10-speed

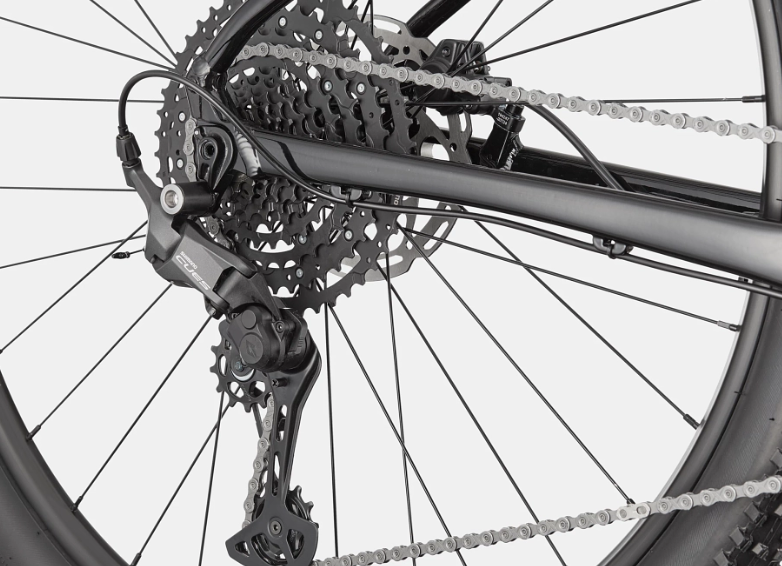

Rear Derailleur

Shimano CUES U6000

Shifters

Shimano CUES U6000, 10-speed

Cassette

Shimano CUES, 11-48, 10-speed

Specification

Details

Seating

1 passenger (Cannondale Trail)

Cargo Capacity

KickFlip hidden 18mm 2-bolt kickstand mount, rack/fender mounts

Wheels/Tyres

(F) Trail Boss 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL) Comp, 30 TPI / (R) Trail Boss 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL) Comp, 30 TPI

Wheel Size

27.5" (XS, S) / 29" (M, L, XL)

Brakes

Tektro M275 hydraulic disc, 160/160mm rotors

Brake Levers

Tektro hydraulic disc

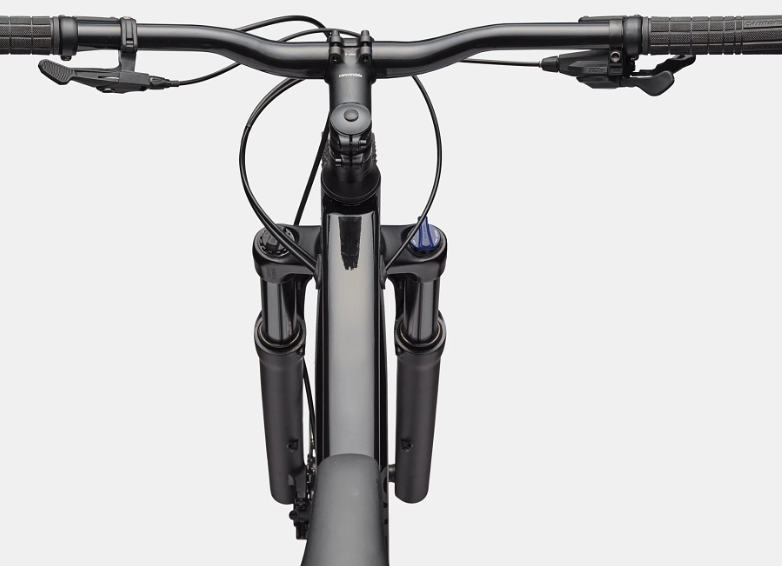

Handlebar

Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm

Stem

Cannondale 4, 6061 Alloy, 31.8, 6°

Headset

Semi-Integrated, 1-1/8"

Saddle

Cannondale Trail

Seatpost

JD Dropper, internal routing, 31.6, 130mm

Seatpost Clamp

Integrated

Grips

Cannondale

Front Hub

Shimano TC500, 15x110mm

Rear Hub

Shimano TC500, 12x142mm

Rims

WTB SX19, 32h

Spokes

Stainless Steel, 14g

Exterior Features

KickFlip hidden 18mm 2-bolt kickstand mount, rack/fender mounts
