Specification

Details

Model

Topstone Neo 5

Vehicle Category

Electric Gravel Road Bike

Application

Gravel roads, up and down hills, out in the elements

Starting Price (2025)

$4,250.00 USD

Color Options

Black Pearl

Specification

Details

Frame

SmartForm C1 Alloy Frame, removable downtube battery, 12x142 thru-axle, SAVE, Ai, rack/fender mounts

Fork

Topstone Neo Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x110 thru-axle

Drivetrain Compatibility

Shimano GRX 600/812, 1x11-speed

Dropouts

12x110mm thru-axle (F), 12x142mm thru-axle (R)

Crank

FSA Bosch E-Bike, 44T

Chain

KMC X11EL, 11-speed

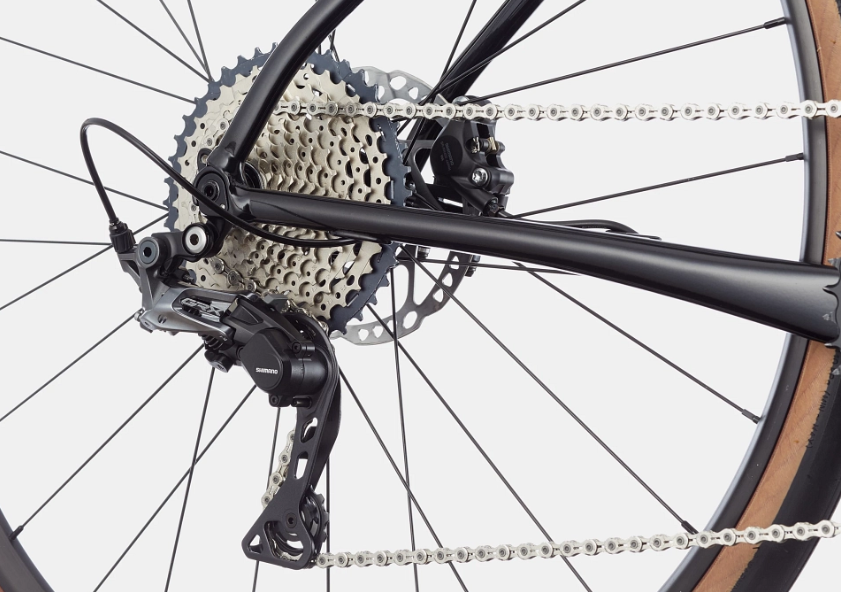

Rear Derailleur

Shimano GRX 812, Shadow RD+

Shifters

Shimano GRX 600, 11-speed

Cassette

Shimano SLX, 11-42, 11-speed

Specification

Details

Seating

1 passenger (Fizik Aliante Delta, S-alloy rails)

Fuel Type

Electric (Bosch PowerTube, 500Wh)

Cargo Capacity

Rack/fender mounts

Wheels/Tyres

(F) WTB Exposure, 700x36c, tubeless ready / (R) WTB Exposure, 700x36c, tubeless ready

Wheel Size

700c

Brakes

Shimano GRX 400 hydraulic disc, 180/160mm RT64 rotors

Brake Levers

Shimano GRX 600 hydraulic disc

Handlebar

Cannondale 3, butted 6061 alloy, 16 deg flare drop

Stem

Cannondale 3, 6061 Alloy, 31.8, 7°

Headset

Integrated, 1.5" lower to 1-1/8" upper, 25mm Alloy top cap

Saddle

Fizik Aliante Delta, S-alloy rails

Seatpost

Promax SP-2032, Alloy, 27.2

Seatpost Clamp

Integrated

Grips

Cannondale Bar Tape, 3.5mm

Front Hub

Formula CSG-1905 12x110mm, thru-axle

Rear Hub

RXC-142S 12x142mm, thru-axle

Rims

WTB ST i23 TCS, 28h, tubeless ready

Spokes

Stainless Steel, 14g

Exterior Features

Rack/fender mounts

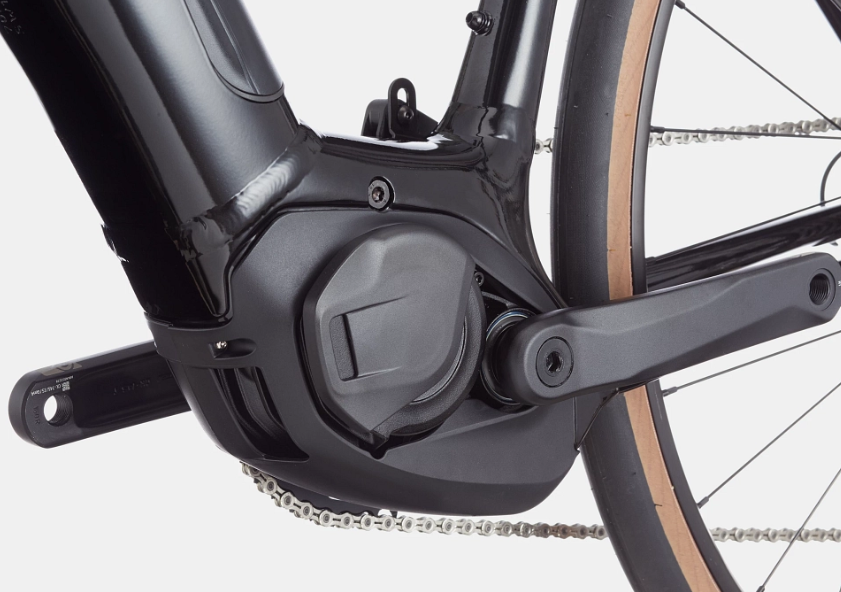

Drive Unit

Bosch Performance Line CX 250W

Battery

Bosch PowerTube, 500Wh

Charger

Bosch 2A

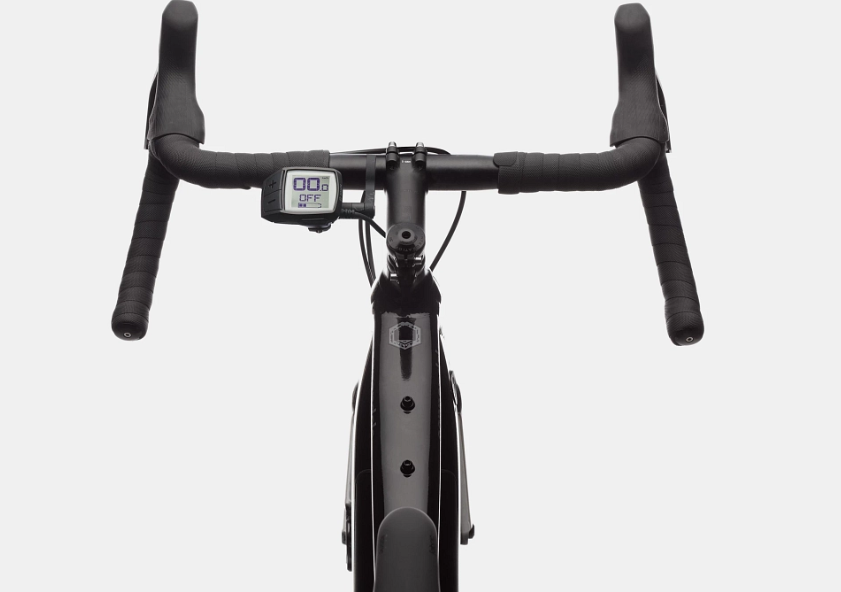

Display

Bosch Purion

Range

Up to 70 mi (113 km)
