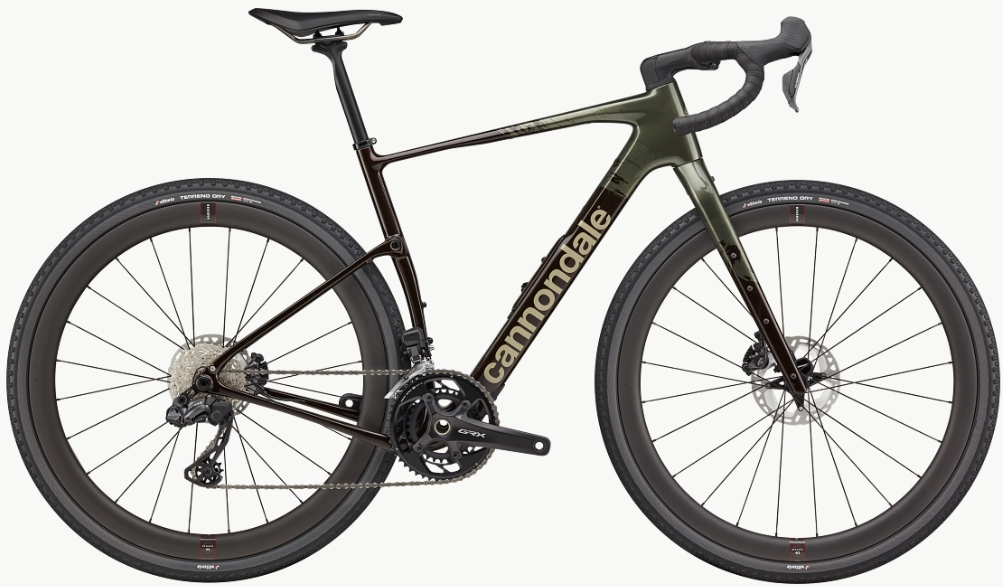

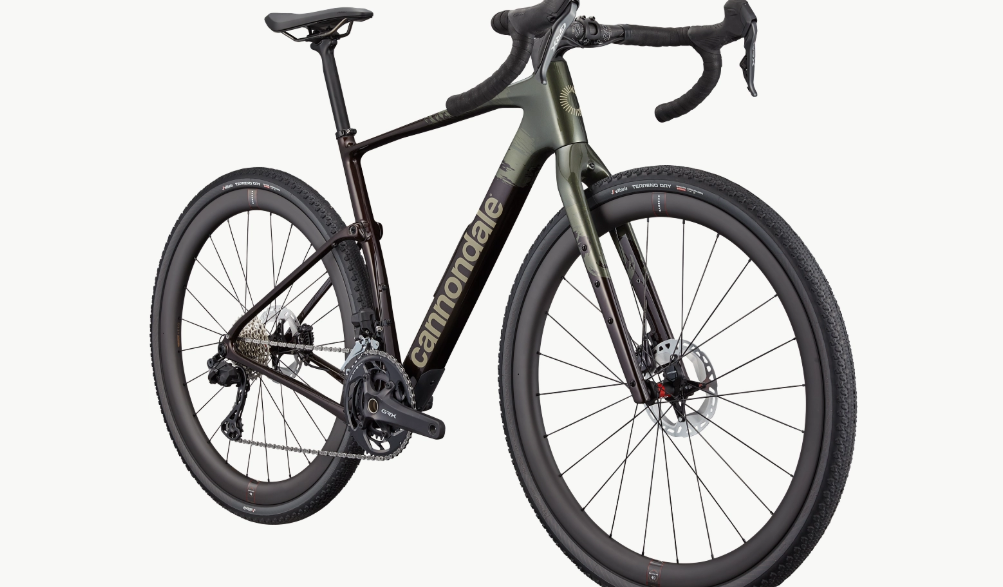

2025 Cannondale Topstone Carbon Rival AXS

Images:

Specifications

Specification	Details
Frame	Topstone Carbon, Kingpin suspension system, SmartSense equipped, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
Fork	Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Rear Shock	Kingpin suspension system
Drivetrain Compatibility	SRAM Rival eTap AXS, 12-speed
Dropouts	12x142mm thru-axle (rear), 12x100mm thru-axle (front)
Bottom Bracket	SRAM DUB BSA Road 68 Wide
Crank	SRAM Rival DUB Wide, 43/30
Chain	SRAM Rival, 12-speed
Rear Derailleur	SRAM Rival eTap AXS
Front Derailleur	SRAM Rival AXS
Shifters	SRAM Rival eTap AXS, 12-speed
Cassette	SRAM XG-1250, 10-36, 12-speed

Specification	Details
Seating	1 passenger (Fizik Aliante Delta, S-alloy rails)
Cargo Capacity	Multiple gear/bottle mounts, triple bottle/gear mounts on fork
Wheels/Tyres	Vittoria Mezcal III, 700x44c, tubeless ready
Wheel Size	700c
Brakes	SRAM Rival hydraulic disc, 160/160mm Centerline rotors
Brake Levers	SRAM Rival hydraulic disc

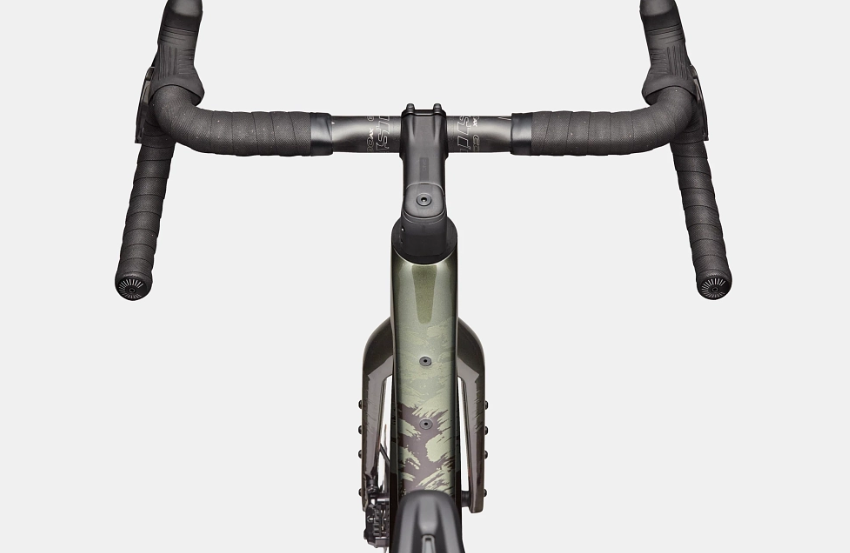

Handlebar	Cannondale 3, butted 6061 Alloy, 16 deg flare drop
Stem	Cannondale 1, 7050 Alloy, -7°
Headset	Integrated, Carbon, 1-1/8" - 1-1/2"
Saddle	Fizik Aliante Delta, S-alloy rails
Seatpost	Cannondale 3 SmartSense, 6061 Alloy, 27.2x350mm
Seatpost Clamp	Integrated
Grips	Fizik Solocush Soft, 3mm
Front Hub	Formula cartridge bearing, 12x100mm centerlock
Rear Hub	Formula cartridge bearing, 12x142mm centerlock
Rims	DT Swiss G540, 28h, 24mm inner width
Spokes	Stainless Steel, 14g
Exterior Features	SmartSense with Lights, multiple gear/bottle mounts, triple bottle/gear mounts on fork, removable fender bridge
Connectivity	Cannondale Wheel Sensor
