Specification

Details

Model

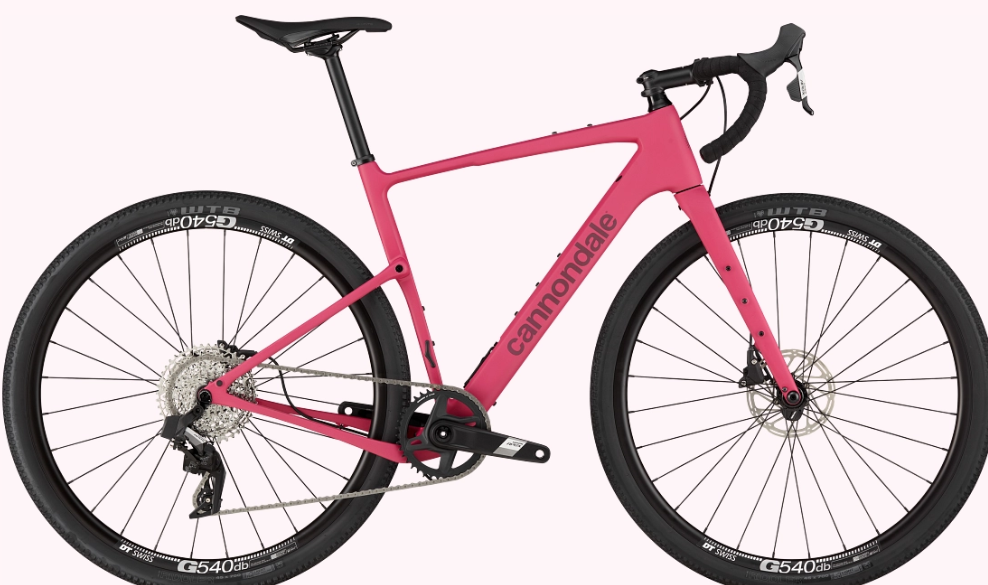

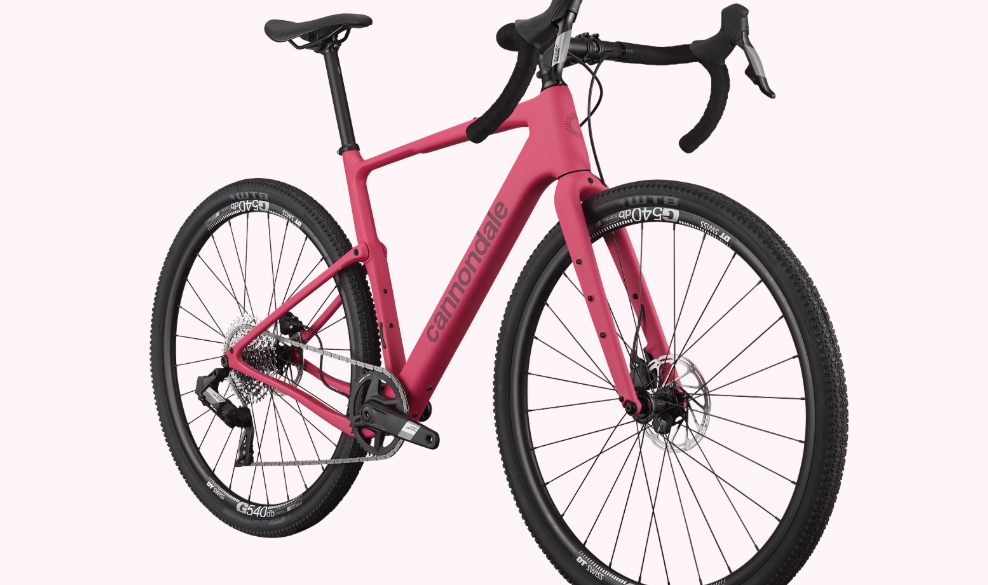

Topstone Carbon LTD Lefty AXS

Vehicle Category

Gravel Bike

Application

Gravel cycling

Starting Price (2025)

$9,499.00 USD

Color Options

Tiger Eye

Specification

Details

Frame

Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts

Fork

Lefty Oliver Carbon, 40mm travel, lockout, Gen 2 Chamber Damper w/ All-Over tune, ISO High-Ride air spring, tapered steerer, 700c, 55mm offset

Rear Shock

Kingpin suspension system

Drivetrain Compatibility

SRAM XO Eagle AXS Transmission, 12-speed

Dropouts

12x142mm thru-axle (rear), 12x100mm thru-axle (front)

Bottom Bracket

SRAM DUB BSA Road 68 Wide

Crank

SRAM Force XPLR, 42T

Chain

SRAM XO Transmission Flattop, 12-speed

Rear Derailleur

SRAM XO Eagle AXS Transmission

Shifters

SRAM Force AXS

Cassette

SRAM XS-1275 Eagle Transmission, 10-52, 12-speed

Specification

Details

Seating

1 passenger (Fizik Terra Argo X3, Kium rails)

Cargo Capacity

Multiple gear/bottle mounts, triple bottle/gear mounts on fork, downtube Stashport

Wheels/Tyres

WTB Vulpine TCS Light, 700x45c, tubeless ready

Wheel Size

700c

Brakes

SRAM Force hydraulic disc, 160/160mm CenterLine X 6-bolt front, centerlock rear rotors

Brake Levers

SRAM Force AXS hydraulic disc

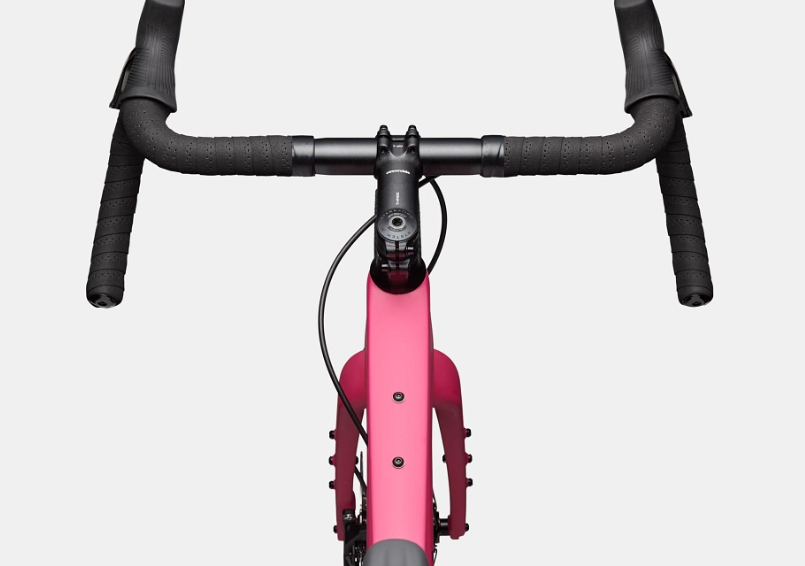

Handlebar

Easton EC90 AX Carbon

Stem

Cannondale C1 Conceal, Alloy, 31.8, -6°

Headset

Acros IS52/40 ICR

Saddle

Fizik Terra Argo X3, Kium rails

Seatpost

Cannondale SAVE Carbon, 27.2x350mm (47-58), 400mm (61)

Seatpost Clamp

Integrated

Grips

Cannondale KnurlCork, 2.7mm

Front Hub

Lefty 50, 6-Bolt

Rear Hub

DT Swiss 350, 12x142mm centerlock

Rims

Reserve 40 I 44 GR Carbon, Turbulent Aero Tech, 24h, tubeless ready

Spokes

Sapim CX-Ray Aero straight pull

Exterior Features

Large StashBag downtube storage bag, Reserve Fillmore tubeless valve stems, SRAM AXS charger, multiple gear/bottle mounts, triple bottle/gear mounts on fork, removable fender bridge

Connectivity

Cannondale Wheel Sensor
