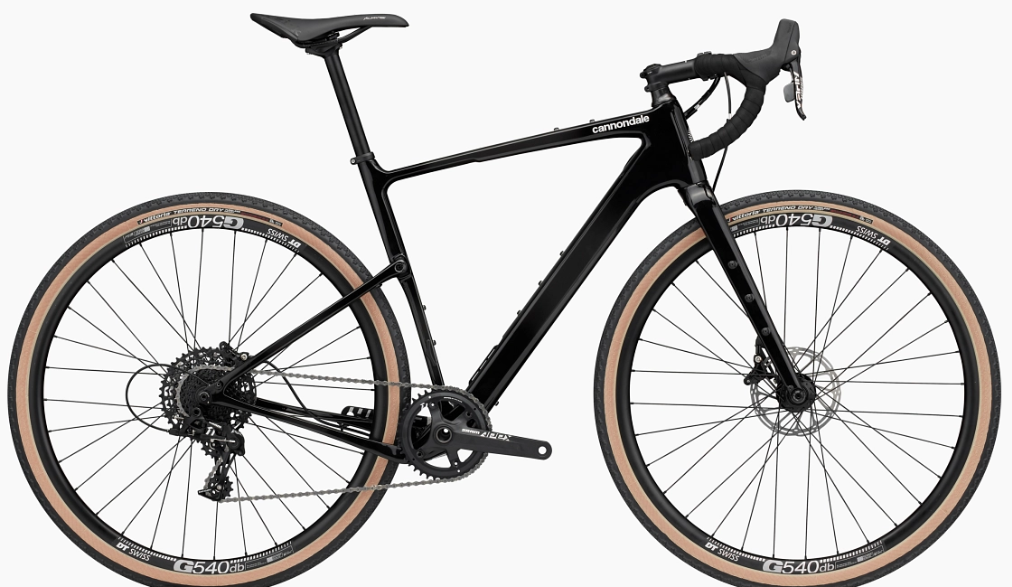

2025 Cannondale Topstone Carbon Apex 1 – Gravel Road Bike
Specifications
|
Specification |
Details |
|
Model |
Topstone Carbon Apex 1 |
|
Vehicle Category |
Gravel Road Bike |
|
Application |
Gravel riding, back road exploring, bike packing, off-road adventures |
|
Starting Price (2025) |
$3,200.00 USD |
|
Color Options |
Carbon |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts |
|
Fork |
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts |
|
Rear Shock |
Kingpin suspension system |
|
Drivetrain Compatibility |
SRAM Apex XPLR, 1x12-speed |
|
Dropouts |
12x100mm thru-axle (F), 12x142mm thru-axle (R) |
|
Bottom Bracket |
SRAM DUB BSA Road 68 Wide |
|

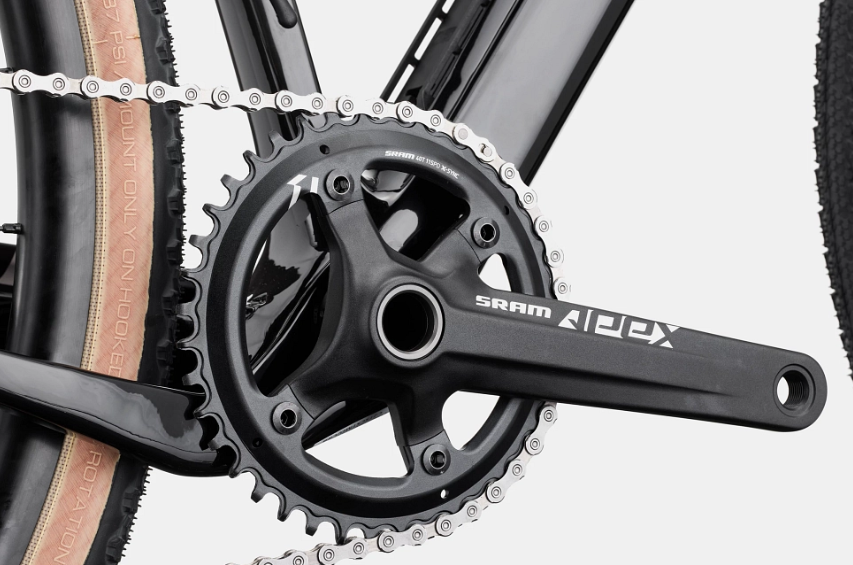

Crank |
SRAM Apex 1 Wide Direct Mount, 40T |
|
Chain |
SRAM Apex, 12-speed |
|

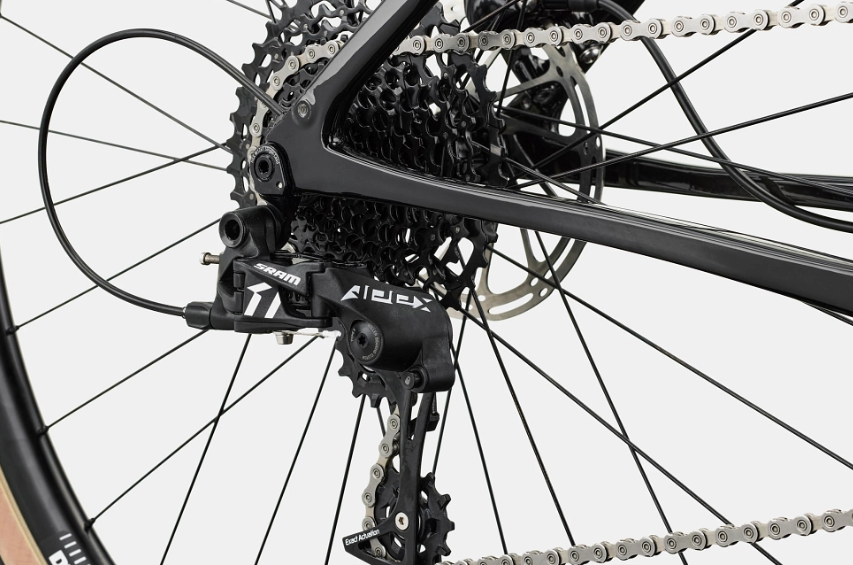

Rear Derailleur |
SRAM Apex XPLR |
|
Shifters |
SRAM Apex, hydraulic disc, 12-speed |
|
Cassette |
SRAM PG-1231 XPLR, 11-44, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Fizik Aliante Delta, S-alloy rails) |
|
Cargo Capacity |
Multiple gear/bottle mounts, StrapRack tool/stuff holder |
|
Wheels/Tyres |
(F) Vittoria Terreno Dry, 700x38c, tubeless ready / (R) Vittoria Terreno Dry, 700x38c, tubeless ready |
|
Wheel Size |
700c |
|
Brakes |
SRAM Apex hydraulic disc, 160/160mm Centerline rotors |
|
Brake Levers |
SRAM Apex hydraulic disc |
|

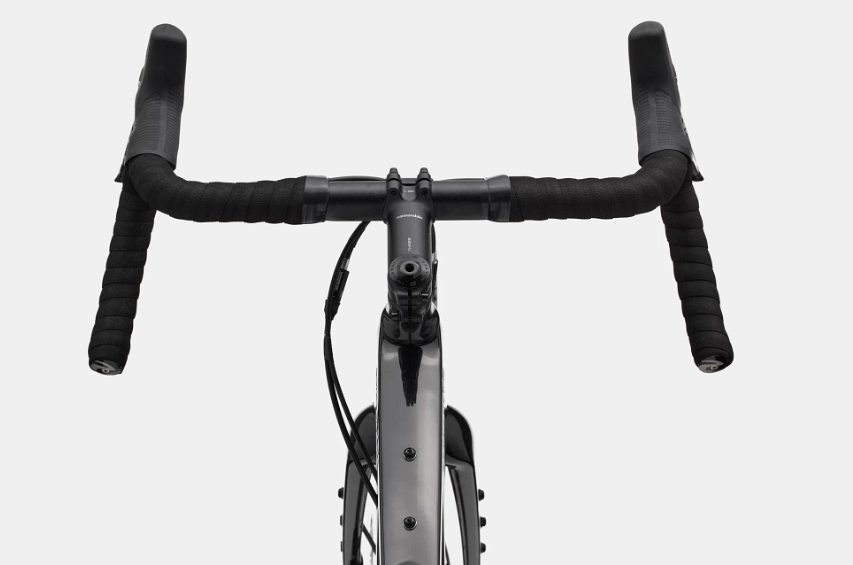

Handlebar |
Cannondale 3, butted 6061 Alloy, 16 deg flare drop |
|
Stem |
Cannondale 3, 6061 Alloy, 31.8, 7° |
|
Headset |
Integrated, 1-1/8" - 1.5" |
|
Saddle |
Fizik Aliante Delta, S-alloy rails |
|
Seatpost |
Cannondale 3, 6061 Alloy, 27.2x350mm |
|
Seatpost Clamp |
Integrated |
|
Grips |
Fizik Solocush Soft, 3mm |
|
Front Hub |
Formula cartridge bearing, 12x100mm, centerlock |
|
Rear Hub |
Formula cartridge bearing, 12x142mm, centerlock |
|
Rims |
DT Swiss G540, 28h, 24mm inner width |
|
Spokes |
Stainless Steel, 14g |
|
Exterior Features |
StrapRack tool/stuff holder |
