2025 Cannondale Tesoro Neo X Speed – Electric Urban Bike
Specifications
|
Specification |
Details |
|
Model |
Tesoro Neo X Speed |
|
Vehicle Category |
Electric Urban Bike |
|
Application |
Speed, long distances, in town and suburbs, crowded streets |
|
Starting Price (2025) |
$3,999.00 USD |
|
Color Options |
Grey |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
SmartForm C1 Alloy, dual-battery-ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, integrated speed sensor, KickFlip hidden kickstand mount, motor protection, rack/fender mount, lock mount |
|
Fork |
SR Suntour Raidon 34, 100mm, 15x110, 46mm offset |
|
Drivetrain Compatibility |
Shimano Deore, 12-speed |
|
Dropouts |
15x110mm thru-axle (F), 148x12mm thru-axle (R) |
|
Bottom Bracket |
Bosch, press-fit |
|
Crank |
FSA Bosch E-Bike w/ custom Ai offset, 46T |
|
Chain |
KMC X12, 12-speed |
|

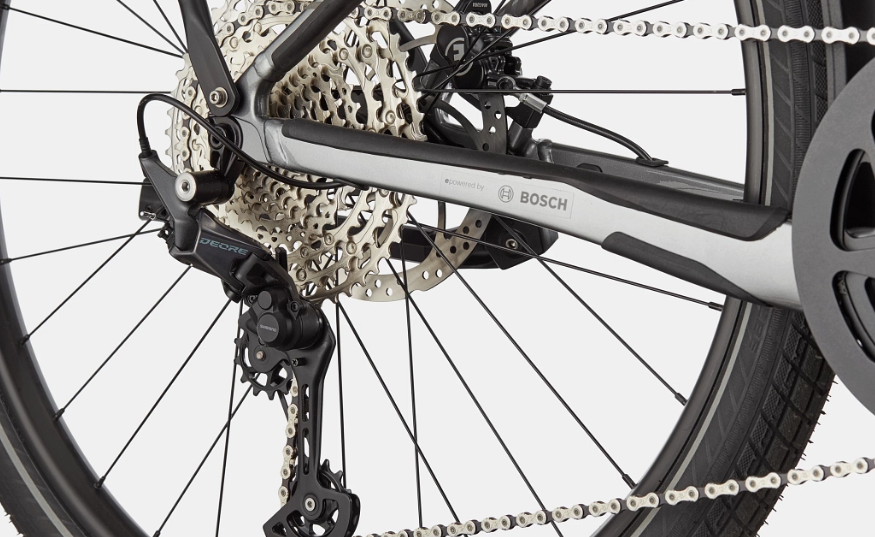

Rear Derailleur |
Shimano Deore |
|
Shifters |
Shimano Deore M6100, 12-speed |
|
Cassette |
Shimano Deore M6100, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Cannondale Ergo Touring) |
|
Fuel Type |
Electric |
|
Cargo Capacity |
Tubus rear rack (25 kg, Racktime compatible) |
|
Wheels/Tyres |
(F) Schwalbe Big Ben Plus Performance, Green Guard, Snake Skin, 28x2.15" / (R) Schwalbe Big Ben Plus Performance, Green Guard, Snake Skin, 28x2.15" |
|
Wheel Size |
28" in |
|
Brakes |
Magura MT5 hydraulic disc, 203/203mm Storm rotors |
|
Brake Levers |
Magura MTnext "e" w/ brake light switch |
|

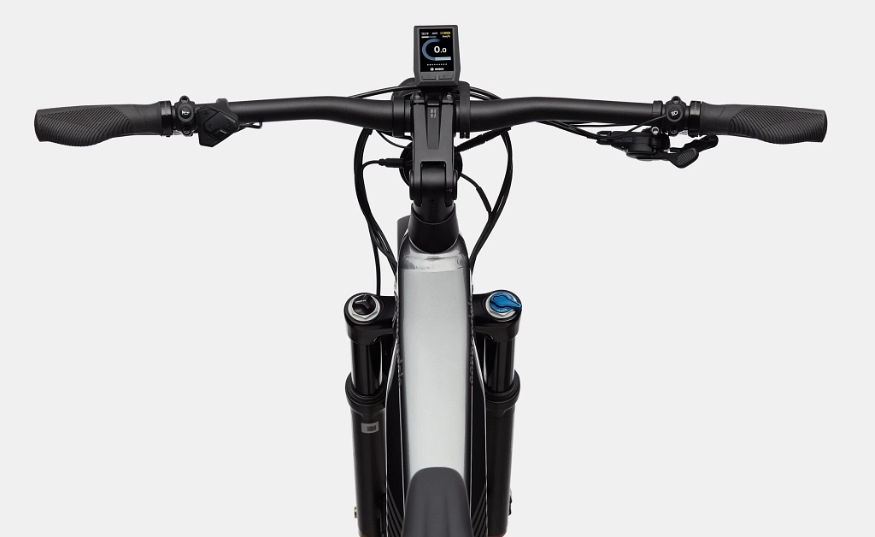

Handlebar |
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm |
|
Stem |
Cannondale Adjustable, A-headset, 31.8mm |
|
Headset |
Integrated Sealed Bearing, Tapered |
|
Saddle |
Cannondale Ergo Touring |
|
Seatpost |
Parallelogram Suspension Seatpost, 31.6 |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale Ergo Fitness Dual Density, Lock-On |
|
Front Hub |
Shimano MT400, 15x110mm thru-axle |
|
Rear Hub |
Shimano MT510, 12x148mm thru-axle |
|
Rims |
WTB STX i30 TCS, 32h, tubeless ready |
|
Spokes |
DT Swiss Champion 2.0 |
|
Exterior Features |
Supernova M99 Mini Pure front light, Supernova M99 Tail Light, Supernova Horn, Tubus Rack, Wingee Fenders, Racktime compatible |
|

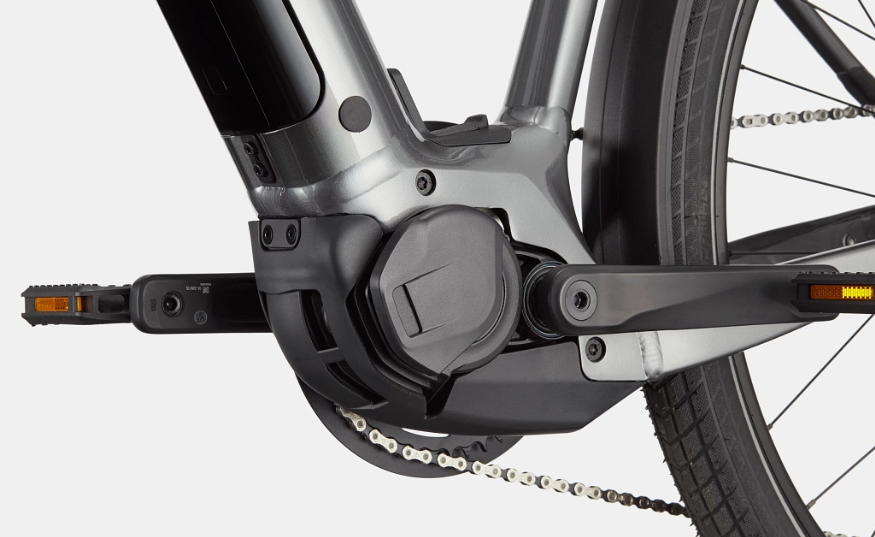

Drive Unit |
Bosch Performance Line Speed 250W, 28 mph |
|
Battery |
Bosch PowerTube, 625Wh |
|
Charger |
Bosch 4A |
|
Display |
Bosch Kiox |
|
Range |
Up to 117 km (73 mi) |
|
Certifications |
UL 2849, Class 3: pedal assist up to 28 mph |
