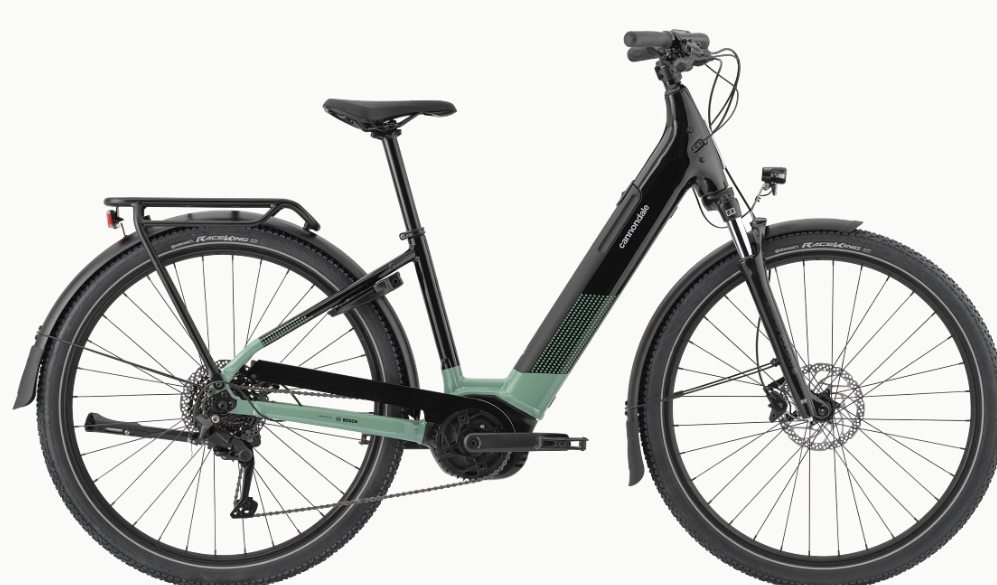

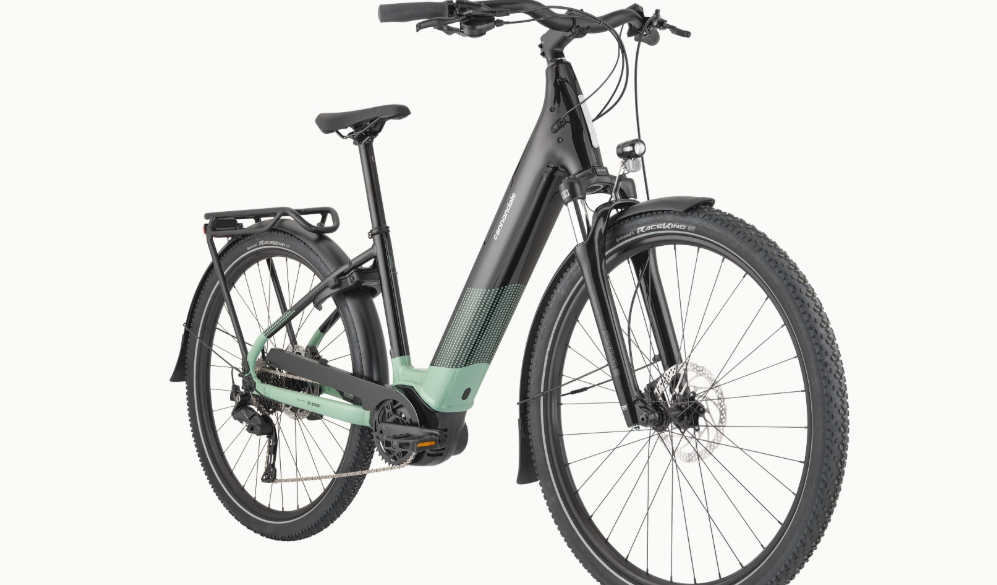

2025 Cannondale Tesoro Neo X 3 Low Step-Thru – Electric Touring Bike
Specifications
|
Specification |
Details |
|
Model |
Tesoro Neo X 3 Low Step-Thru |
|
Vehicle Category |
Electric Touring Bike |
|
Application |
Electric touring and commuting |
|
Starting Price (2025) |
$3,300.00 USD |
|
Color Options |
Sage |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
SmartForm C2 Alloy, low step-thru, removable 500Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection |
|
Fork |
SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset |
|
Drivetrain Compatibility |
Shimano CUES 4020, 9-speed |
|
Dropouts |
135mm QR hub spacing (rear), 110x15mm thru-axle (front) |
|
Bottom Bracket |
Bosch, press-fit |
|
Crank |
FSA for Bosch |
|
Chain |
KMC E11 |
|

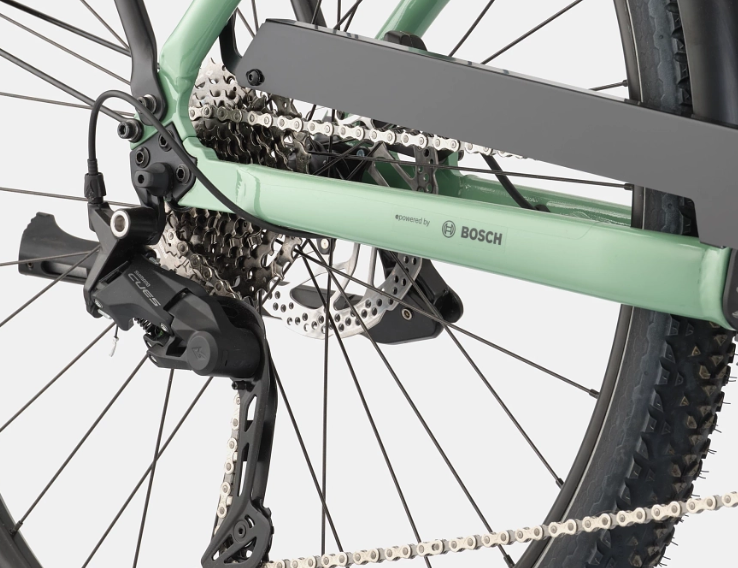

Rear Derailleur |
Shimano CUES 4020 |
|
Shifters |
Shimano CUES 4000, 9-speed |
|
Cassette |
Shimano CUES 400, 11-36, 9-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Selle Royal Vivo Active) |
|
Fuel Type |
Electric |
|
Cargo Capacity |
25 kg (Tubus rear rack) |
|
Wheels/Tyres |
Continental Race King, 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-LG) |
|
Wheel Size |
27.5" (SM), 29" (MD-LG) |
|
Brakes |
Shimano MT200 hydraulic disc, 180/180mm RT30 rotors |
|
Brake Levers |
Shimano MT200 hydraulic disc |
|

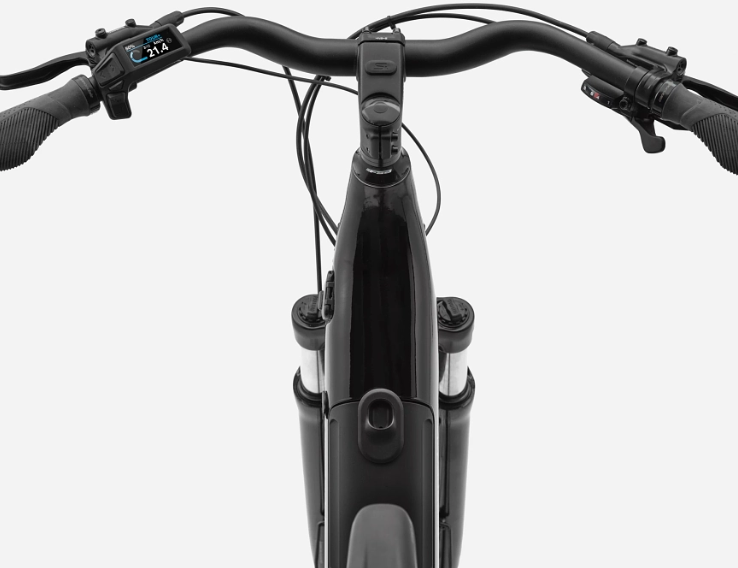

Handlebar |
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm |
|
Stem |
Cannondale 3, Alloy, 31.8mm clamp |
|
Headset |
Semi-Integrated, Tapered, 1-1/8"-1-1/2" |
|
Saddle |
Selle Royal Vivo Active |
|
Seatpost |
Cannondale 3, 6061 Alloy, 31.6 |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale Ergo Fitness Dual Density, Lock-on |
|
Front Hub |
Shimano MT400B, 110x15mm thru-axle |
|
Rear Hub |
Shimano UR600, 135QR |
|
Rims |
Alloy, double wall, 32 hole, 25mm internal width, disc-specific |
|
Spokes |
Stainless Steel, 14g |
|
Pedals |
Cannondale Fitness |
|
Exterior Features |
Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fenders |
|

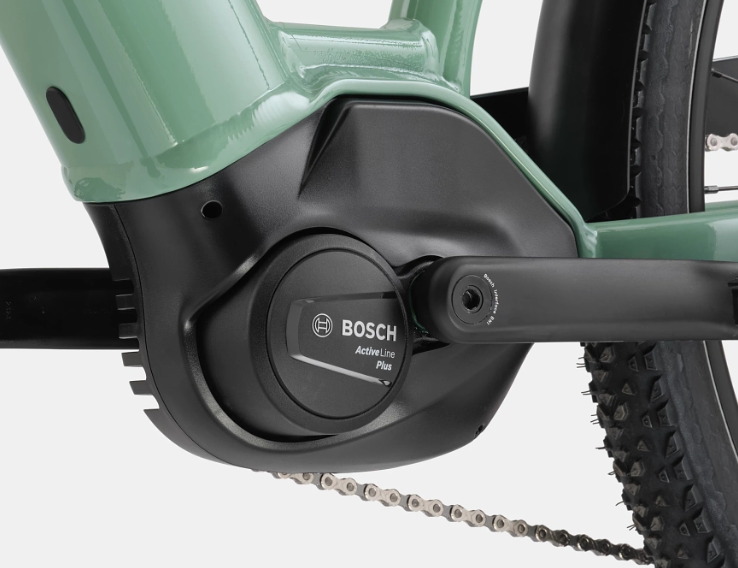

Drive Unit |
Bosch Active Line Plus, Smart System, 25 km/h |
|
Battery |
Bosch PowerTube, 500Wh |
|
Charger |
Bosch 2A |
|
Display |
Bosch Purion 200 |
|
Range |
Up to 113 km |
