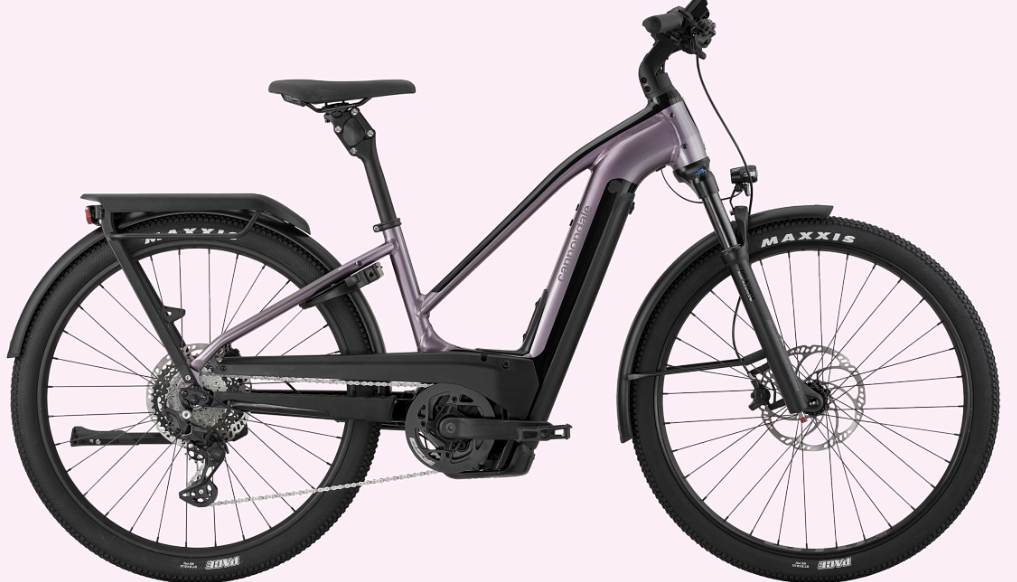

2025 Cannondale Tesoro Neo X 1 StepThru – Electric Touring Bike
Specifications
|
Specification |
Details |
|
Model |
Tesoro Neo X 1 StepThru |
|
Vehicle Category |
Electric Touring Bike |
|
Application |
Commuting, touring, exploring, city streets, adventurous backroads |
|
Starting Price (2025) |
$4,600.00 USD |
|
Color Options |
Lavender |

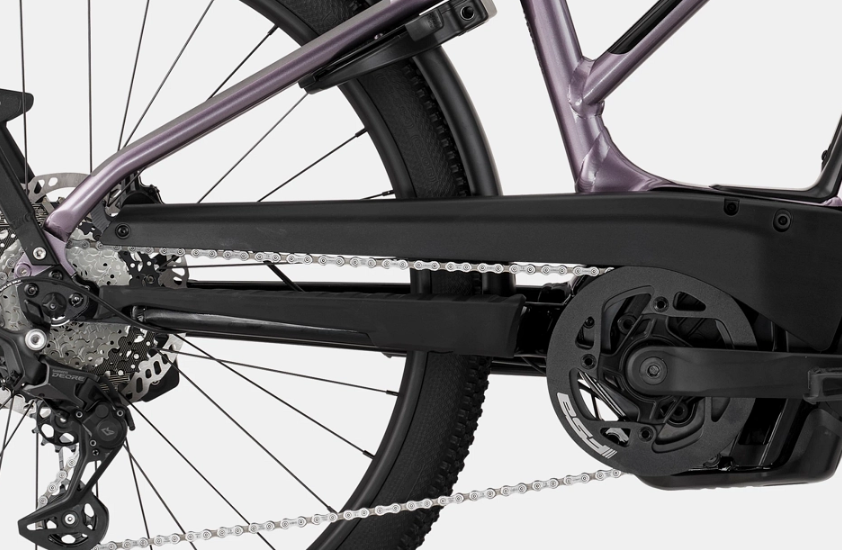

Frame & Drivetrain
|
Specification |
Details |
|
Frame |
SmartForm C1 Alloy, step-thru, removable 750Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection |
|
Fork |
SR Suntour XCR34, 100mm, coil, boost spacing, offset - 44mm (SM), 51mm (MD, LG) |
|
Drivetrain Compatibility |
Shimano Deore LinkGlide, 10-speed |
|
Dropouts |
135mm QR hub spacing |
|
Bottom Bracket |
Bosch, press-fit |
|
Crank |
Bosch Gen4, 38T |
|
Chain |
LinkGlide 10-speed |
|
Rear Derailleur |
Shimano Deore LinkGlide Shadow RD+ |
|
Shifters |
Shimano Deore LinkGlide, 10-speed |
|
Cassette |
Shimano Deore LinkGlide, 11-43, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Selle Royal Lookin) |
|
Fuel Type |
Electric |
|
Cargo Capacity |
Cannondale Urban rear rack (25 kg, Racktime compatible) |
|
Wheels/Tyres |
(F) Maxxis Pace, 29x2.1" 53-622 (MD, LG), 27.5x2.1" 53-584 (SM) / (R) Maxxis Pace, 29x2.1" 53-622 (MD, LG), 27.5x2.1" 53-584 (SM) |
|
Wheel Size |
27.5" (SM), 29" (MD, LG) |
|
Brakes |
Magura MT C 2-piston hydraulic disc, MDR-C rotors, 203mm/203mm |
|
Brake Levers |
Magura MT C hydraulic disc |
|
Handlebar |
Cannondale Trekking |
|
Stem |
Cannondale Urban Intellimount, internal cable routing, SP-Connect compatible phone mount |
|
Headset |
Integrated Sealed Bearing, Tapered, internal cable routing |
|
Saddle |
Selle Royal Lookin |
|
Seatpost |
Parallelogram Suspension Seatpost, 31.6, 300mm (SM), 350mm (MD), 400mm (LG) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale Ergo Fitness Dual Density, Lock-on |
|
Front Hub |
Shimano MT400, 15x110mm thru-axle |
|
Rear Hub |
Shimano R600, 32H, QR |
|
Rims |
WTB STX i30 TCS, 32h, tubeless ready |
|
Spokes |
Stainless Steel, 14g |
|
Exterior Features |
Integrated headtube running light, Cannondale Urban rear rack (25 kg, Racktime compatible), Curana Apollo fenders, Axa Blueline 30 headlight, Axa Blueline taillight, kickstand, Abus 4650X frame lock (key-matched with battery lock) |
|
Drive Unit |
Bosch Performance Line CX 250W, 25 km/h |
|
Battery |
Bosch PowerTube, 750Wh |
|
Charger |
Bosch 4A |
|
Display |
Bosch Kiox 300 w/ LED remote |
|
Range |
Up to 175 km |
