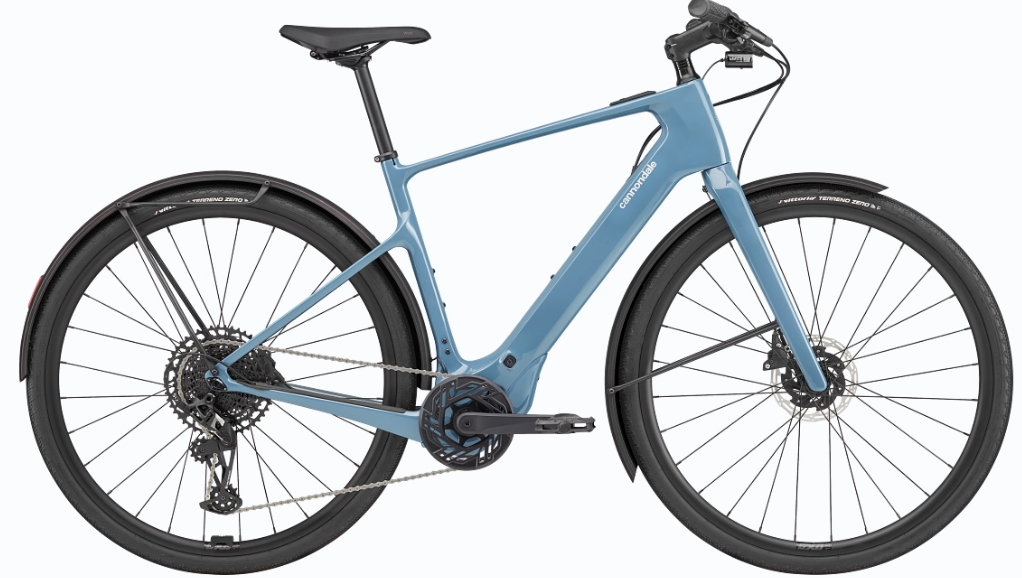

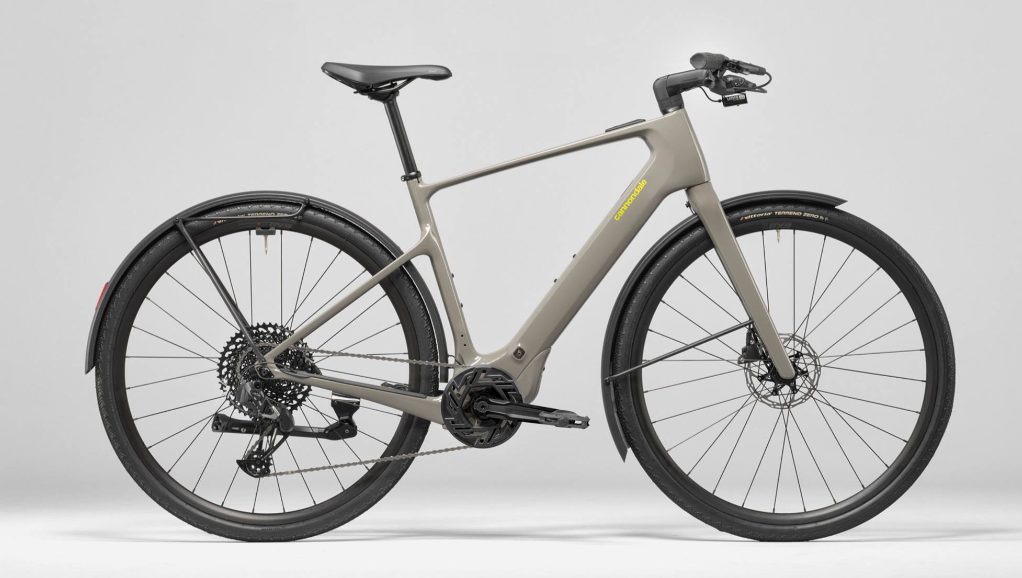

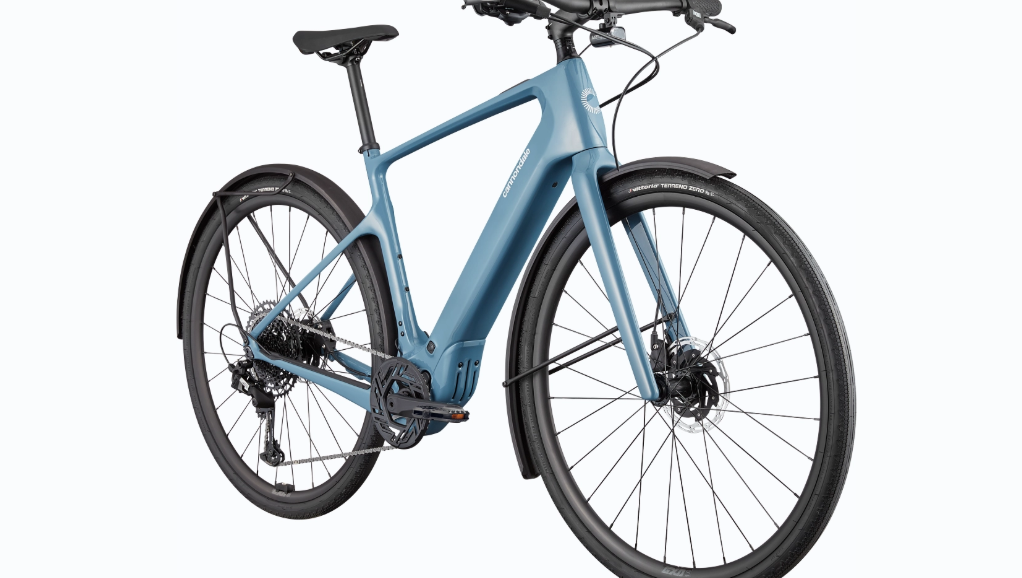

2025 Cannondale Tesoro Neo Carbon 2 – Electric Urban Bike
Specifications
|
Specification |
Details |
|
Model |
Tesoro Neo Carbon 2 |
|
Vehicle Category |
Electric Urban Bike |
|
Application |
High-speed commuting, urban exploration |
|
Starting Price (2025) |
$5,499.00 USD |
|
Color Options |
Storm Cloud |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Tesoro Carbon, Series 2 Carbon construction, internal downtube battery, integrated cable routing, 148mm dropout spacing, 12mm thru-axle, SAVE, flat mount disc, removable kickstand mount (40mm Pletscher-style) |
|
Fork |
Tesoro Carbon, 1-1/8" to 1.5" Delta steerer, flat mount disc, internal routing, 12x110 thru-axle |
|
Drivetrain Compatibility |
SRAM Apex/NX Eagle, 12-speed |
|
Dropouts |
12mm thru-axle (F: 12x110mm, R: 12x148mm) |
|
Bottom Bracket |
N/A (FSA Bosch E-Bike specific) |
|
Crank |
FSA Bosch E-Bike, SRAM Direct Mount, 38T |
|
Chain |
SRAM NX Eagle, 12-speed |
|

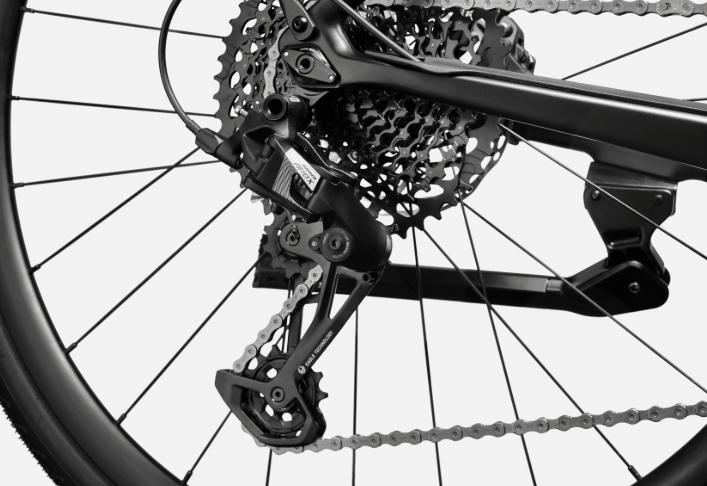

Rear Derailleur |
SRAM Apex Eagle |
|
Shifters |
SRAM NX Eagle, 12-speed |
|
Cassette |
SRAM Eagle PG-1230, 11-50, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Selle Royal Vivo Active Ergo) |
|
Fuel Type |
Electric |
|
Cargo Capacity |
Rear pannier bars (8 kg per side) |
|
Wheels/Tyres |
(F) Vittoria Terreno Zero, 700x38c / (R) Vittoria Terreno Zero, 700x38c |
|
Wheel Size |
700c |
|
Brakes |
SRAM S-300, 160/160mm CenterLine X rotors |
|
Brake Levers |
SRAM S-300 hydraulic disc |
|

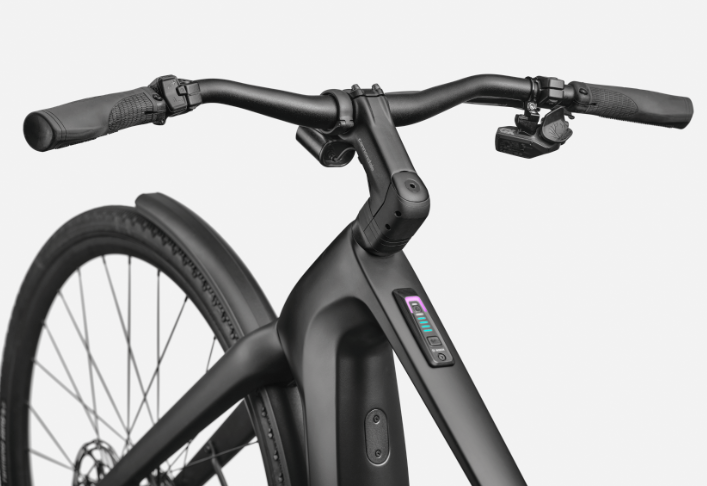

Handlebar |
6061 Alloy, 31.8mm, 700mm, 7° rise |
|
Stem |
Cannondale C1 Conceal, Alloy, 31.8, +6° |
|
Headset |
Integrated, 1-1/8" - 1.5" |
|
Saddle |
Selle Royal Vivo Active Ergo |
|
Seatpost |
Cannondale 3, 6061 Alloy, 27.2x400mm |
|
Seatpost Clamp |
Integrated |
|
Grips |
Ergo Lock-on Grips |
|
Front Hub |
Formula sealed cartridge bearing, 12x110mm thru-axle |
|
Rear Hub |
Formula sealed cartridge bearing, 12x148mm thru-axle |
|
Rims |
Cannondale GXD10, alloy double-wall rim, 28h |
|
Spokes |
Stainless Steel, 14g |
|
Exterior Features |
Cannondale KSA40 Kickstand K17014 & K17004 mounting bracket, Lezyne Hecto E65 headlight, Extruded alloy fenders w/ integrated rear light, rear pannier bars |
|
Drive Unit |
Bosch Performance Line Sprint, 28 mph |
|
Battery |
Bosch Compact Powertube 400Wh |
|
Charger |
Bosch 2A |
|
Display |
Top-tube System Controller w/ mini remote |
|
Certifications |
UL 2849, Class 3: pedal assist up to 28 mph |
|
Weight |
16 kg (complete bike, size MD) |
