Specification

Details

Model

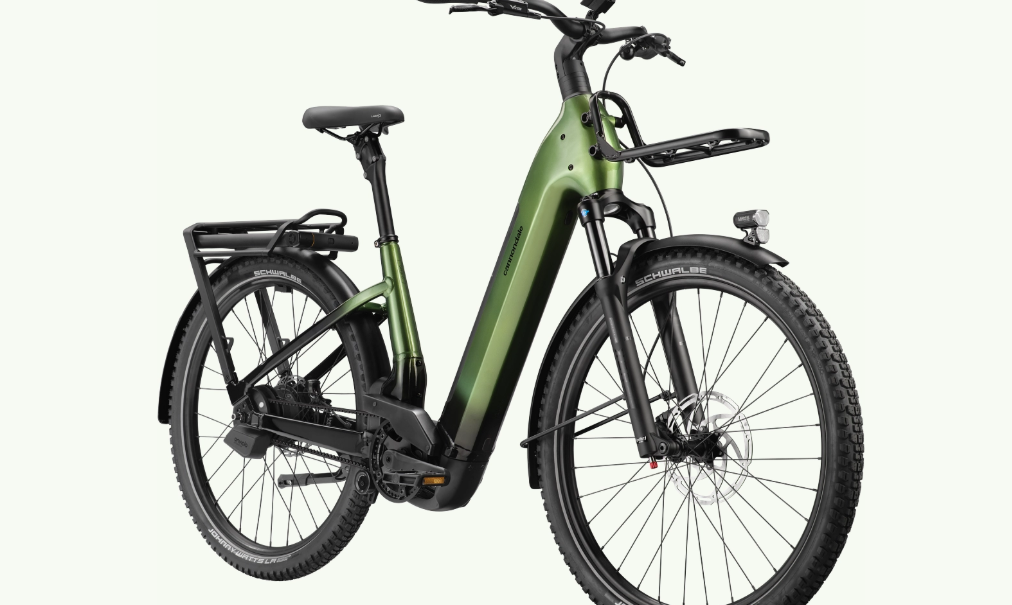

Tesoro Automatiq Low Step-Thru

Vehicle Category

Electric Touring Bike

Application

Electric touring and commuting

Starting Price (2025)

$6,888.00 USD

Color Options

Sea Green

Specification

Details

Frame

Tesoro, low step-thru, SmartForm C1 Alloy, removable 800Wh downtube battery, tapered headtube, internal cable routing, 135mm QR hub spacing, post mount disc brake, motor protection, integrated RackLock rack and fender - RackTime SnapIt 2.0 and child seat compatible

Fork

SR Suntour Mobie XCR34, 100mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset

Drivetrain Compatibility

Enviolo Continuously Variable Transmission, Gates CDX belt drive

Dropouts

135mm QR hub spacing (rear), 15x110mm thru-axle (front)

Bottom Bracket

Bosch, press-fit

Crank

Gates Bosch E-bike, w/ 46T sprocket

Chain

Gates CDX high performance carbon drive belt

Rear Derailleur

Enviolo Continuously Variable Transmission internal gear hub, with Automatiq shifting

Cassette

Gates CDX, 22T

Specification

Details

Seating

1 passenger (Selle Royal Essenza)

Fuel Type

Electric

Cargo Capacity

27 kg (RackLock rear rack)

Wheels/Tyres

Schwalbe Johnny Watts LR, 27.5x2.35" 60-584 (SM, MD), 29x2.35" 60-622 (LG, XL)

Wheel Size

27.5" (SM, MD), 29" (LG, XL)

Brakes

Tektro T535 4-piston hydraulic disc, 203/180mm TR rotors

Brake Levers

Tektro M535 hydraulic disc

Handlebar

Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm

Stem

Cannondale Urban w/ Intellimount, Alloy, 31.8mm clamp, 60mm, +30°, Acros ICR, w/ SP Connect SPC+ Stem Mount & Kiox mount

Headset

Acros integrated cable routing, 1.8" sealed bearings with tapered reducers

Saddle

Selle Royal Essenza

Seatpost

Parallelogram Suspension Seatpost, 31.6, 27mm travel, 300mm (SM), 350mm (MD), 400mm (LG, XL)

Seatpost Clamp

Integrated

Grips

Ergon GC10

Front Hub

Shimano TC500, 15x110mm thru-axle

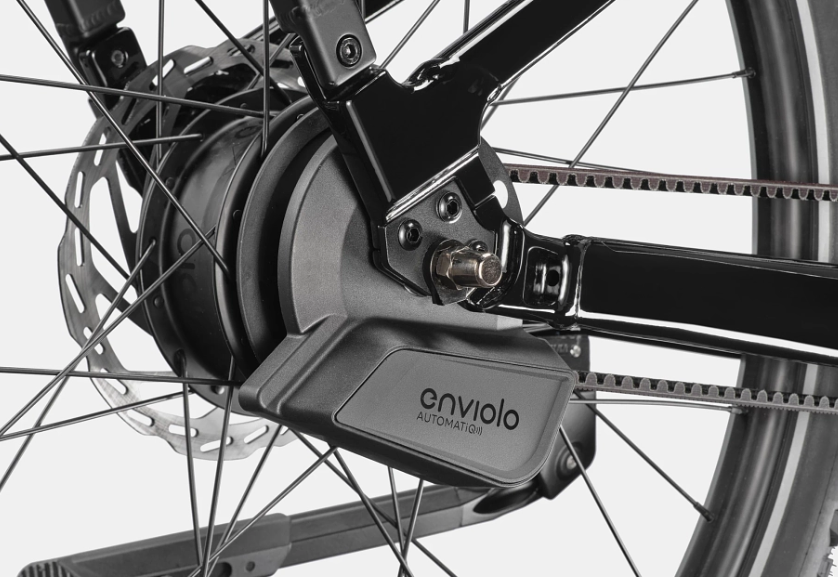

Rear Hub

Enviolo Trekking, continuously variable transmission, wide range internal hub

Rims

Alloy, double wall, 32 hole, 25mm internal width, disc-specific

Spokes

Stainless Steel, 14g

Exterior Features

RackLock rear rack (27kg, Racktime SnapIt 2.0 & child seat compatible), with integrated extra-large Trelock U-Lock (key-matched with battery lock), OutFront Racktime front rack, Lezyne Foresite E350 front light and SuperNova TL3-Z rear light with integrated reflector, full-coverage fenders

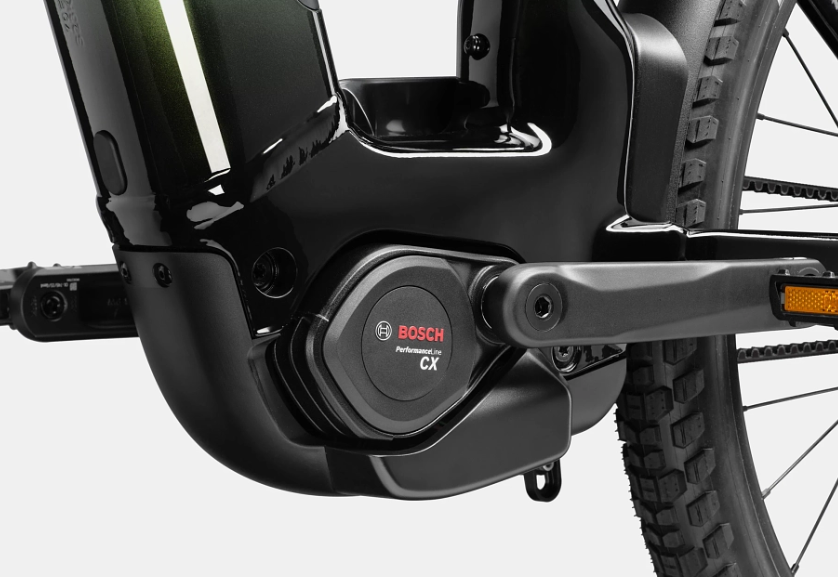

Drive Unit

Bosch Performance Line CX 250W 2025

Battery

Bosch PowerTube, 800Wh

Charger

Bosch 4A

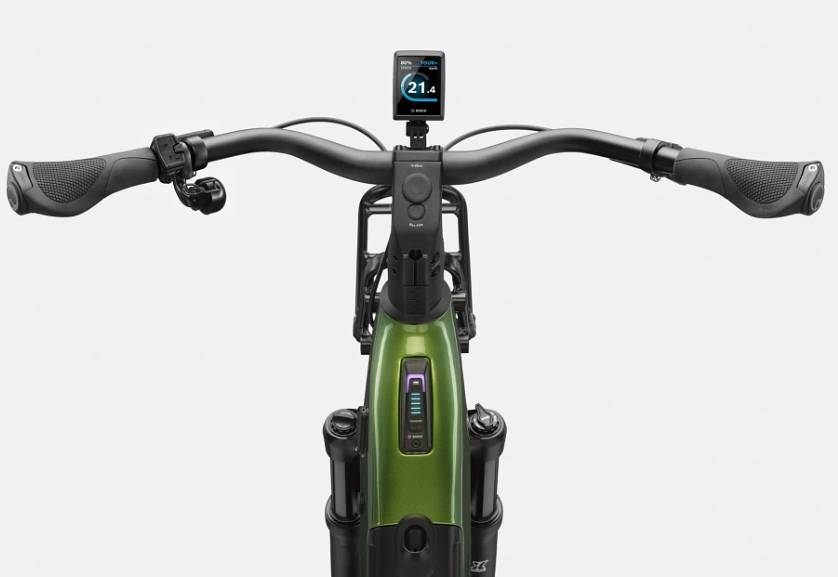

Display

Bosch Kiox 300 w/ Mini Remote & System Controller

Range

Up to 185 km
