Specification

Details

Model

Tesoro 1

Vehicle Category

Electric Touring Bike

Application

Adventure trekking, wild exploring, long-range commuting

Starting Price (2025)

$4,150.00 USD

Color Options

Black

Specification

Details

Frame

Tesoro, SmartForm C1 Alloy, removable 800Wh downtube battery, tapered headtube, internal cable routing, 135mm QR hub spacing, post mount disc brake, motor protection, integrated RackLock rack and fender - RackTime SnapIt 2.0 and child seat compatible

Fork

SR Suntour Mobie XCR34, 100mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset

Drivetrain Compatibility

Shimano CUES U6000, 10-speed

Dropouts

135mm QR hub spacing

Bottom Bracket

Bosch, press-fit

Crank

FSA Bosch E-bike, 38T

Chain

KMC eGlide - Shimano LinkGlide Compatible

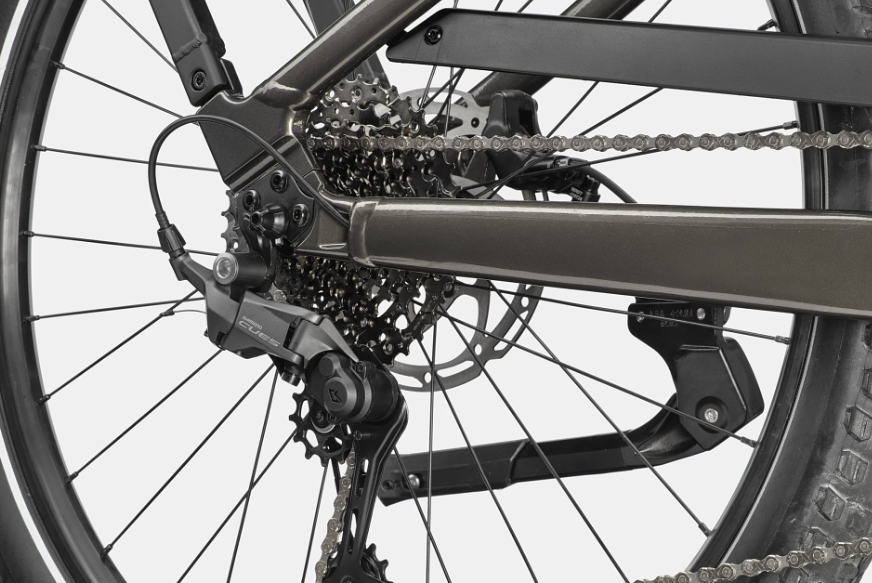

Rear Derailleur

Shimano CUES U6000

Shifters

Shimano CUES U6000, trigger style, 10-speed

Cassette

Shimano CUES LG300, 11-48, 10-speed

Specification

Details

Seating

1 passenger (Selle Royal Essenza)

Fuel Type

Electric

Cargo Capacity

RackLock rear rack (27kg, Racktime SnapIt 2.0 & child seat compatible)

Wheels/Tyres

(F) Schwalbe Johnny Watts LR, 27.5x2.35" 60-584 (MD), 29x2.35" 60-622 (LG, XL) / (R) Schwalbe Johnny Watts LR, 27.5x2.35" 60-584 (MD), 29x2.35" 60-622 (LG, XL)

Wheel Size

27.5" (MD), 29" (LG, XL)

Brakes

Tektro T535 4-piston hydraulic disc, 203/180mm TR rotors

Brake Levers

Tektro M535 hydraulic disc

Handlebar

Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm

Stem

Cannondale Urban w/ Intellimount, Alloy, 31.8mm clamp, 60mm, +30°, Acros ICR, w/ SP Connect SPC+ Stem Mount

Headset

Acros integrated cable routing, 1.8" sealed bearings with tapered reducers

Saddle

Selle Royal Essenza

Seatpost

Linear Suspension Seatpost, 31.6, 350mm

Seatpost Clamp

Integrated

Grips

Ergon GC10

Front Hub

Shimano TC500, 15x110mm thru-axle

Rear Hub

Shimano HB-TX505, 135x9mm, QR

Rims

Alloy, double wall, 32 hole, 25mm internal width, disc-specific

Spokes

Stainless Steel, 14g

Exterior Features

RackLock rear rack (27kg, Racktime SnapIt 2.0 & child seat compatible) with integrated extra-large Trelock U-Lock (key-matched with battery lock), Lezyne Foresite E350 front light, SuperNova TL3-Z rear light with integrated reflector, full-coverage fenders, compatible with Bosch Connect Module (BCM)

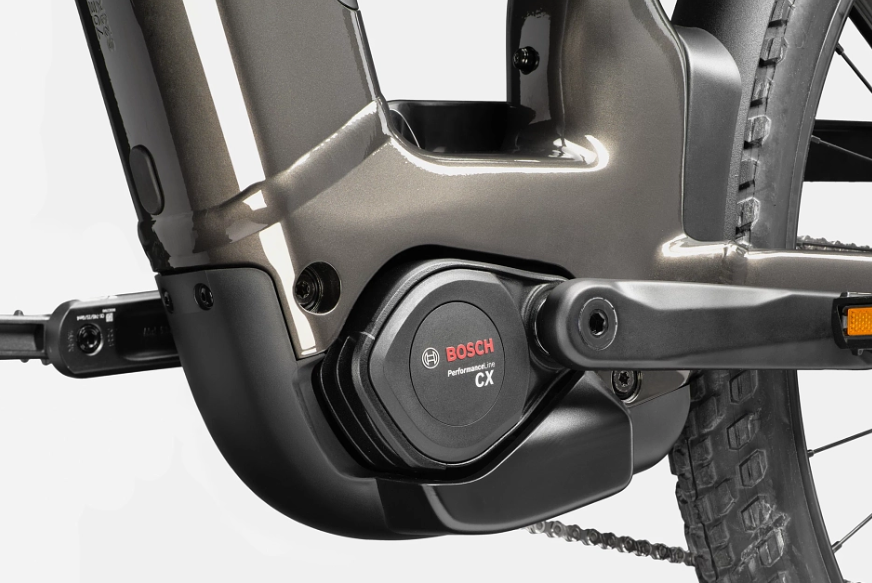

Drive Unit

Bosch Performance Line CX 250W 2025, 25 km/h

Battery

Bosch PowerTube, 800Wh

Charger

Bosch 4A

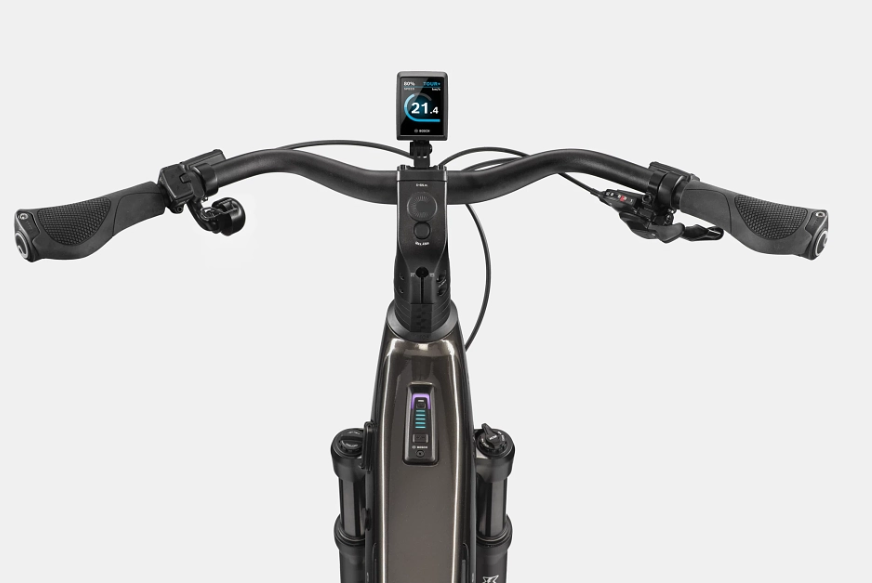

Display

Bosch Kiox 300 w/ Mini Remote & System Controller

Range

Up to 185 km
