Specification

Details

Model

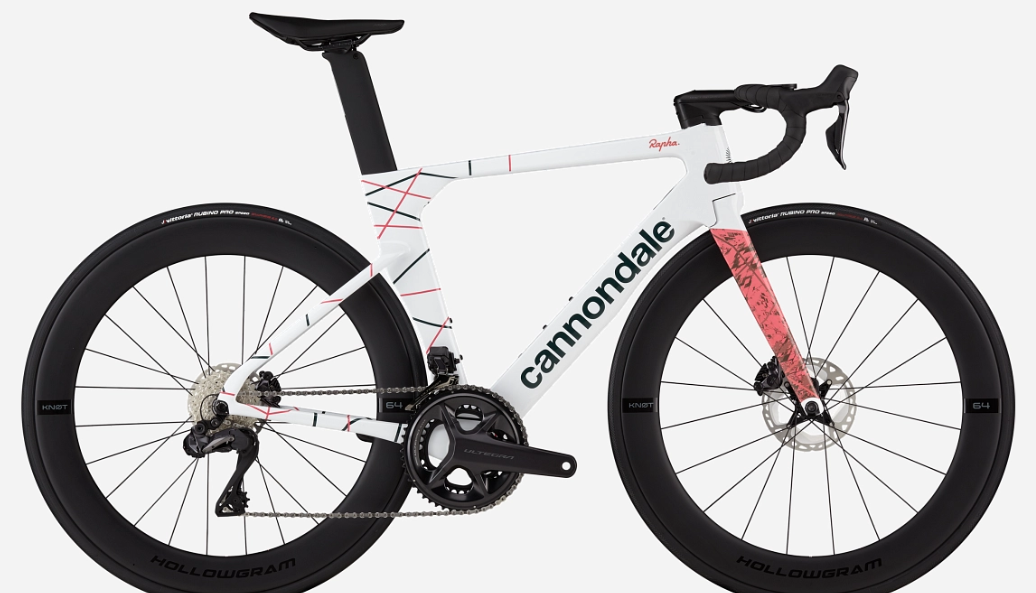

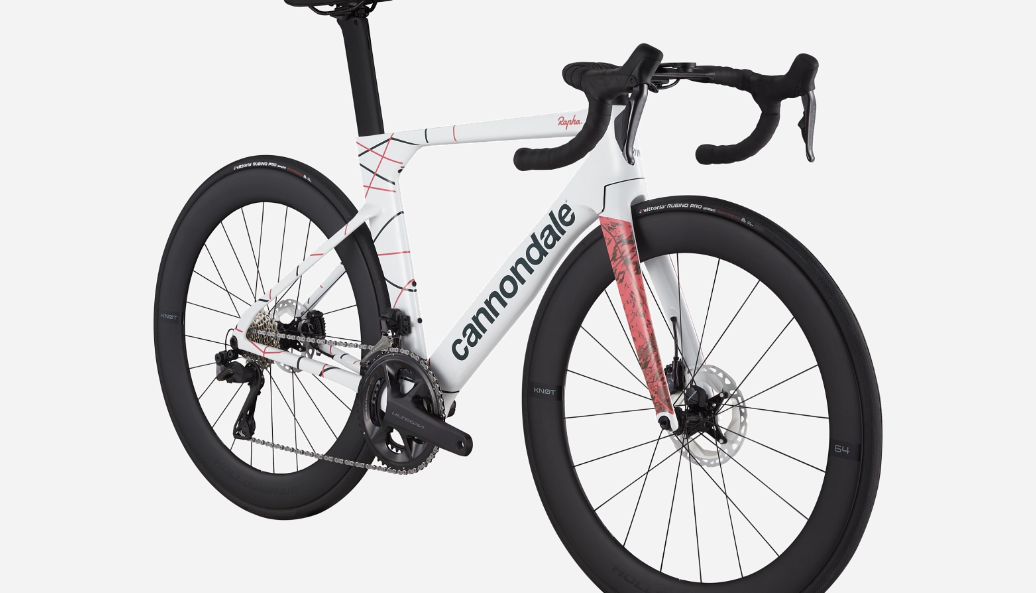

SystemSix Hi-MOD Ultegra Di2

Vehicle Category

Road Bike

Application

Aero road racing

Starting Price (2025)

$8,000.00 USD

Color Options

Team Replica

Specification

Details

Frame

SystemSix Hi-MOD Carbon, integrated cable routing w/ Switchplate, SAVE, PF30a, flat mount disc, 12x142 Speed Release thru-axle

Fork

SystemSix Hi-MOD Carbon, 1-1/8" - 1-1/4" steerer, 12x100mm Speed Release thru-axle, flat mount disc, 55mm offset (47-51cm), 45mm offset (54-62cm)

Drivetrain Compatibility

Shimano Ultegra Di2 R8150, 2x12-speed

Dropouts

12x142mm Speed Release thru-axle (rear), 12x100mm Speed Release thru-axle (front)

Bottom Bracket

FSA PF30A to 24mm Reducer

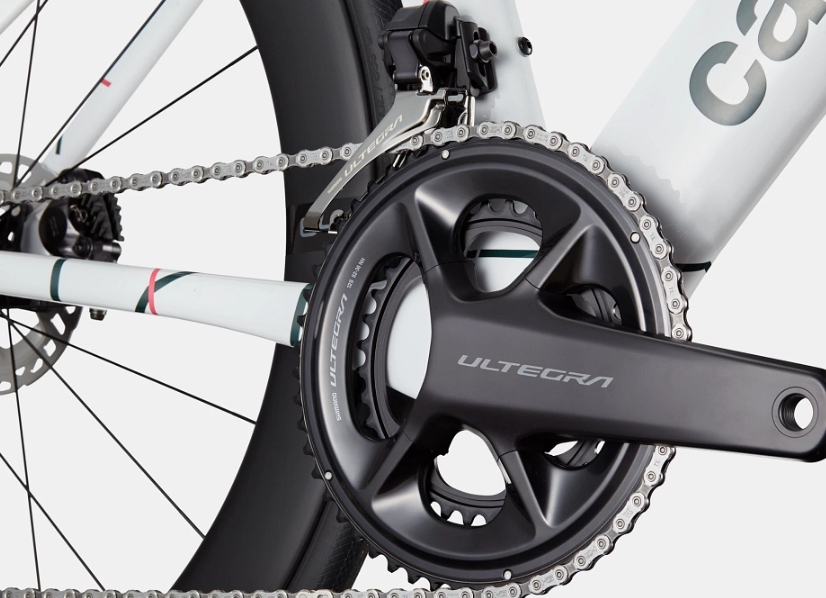

Crank

Shimano Ultegra Di2 R8100, 52/36

Chain

Shimano Ultegra, 12-speed

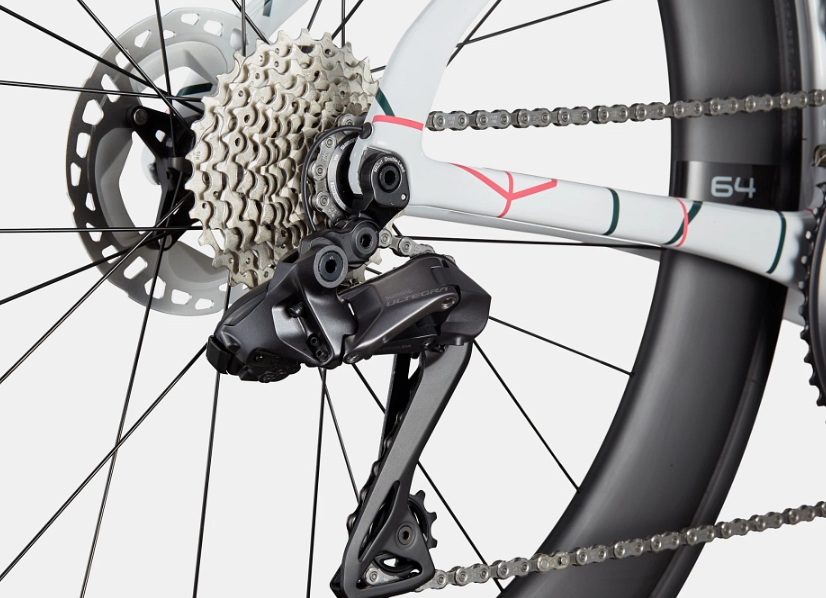

Rear Derailleur

Shimano Ultegra Di2 R8150, 12-speed

Front Derailleur

Shimano Ultegra Di2 R8150

Shifters

Shimano Ultegra Di2 R8170, 2x12

Cassette

Shimano Ultegra R8100, 11-30, 12-speed

Specification

Details

Seating

1 passenger (Fizik Tempo Argo R5, 150mm width, S-Alloy rails)

Wheels/Tyres

Vittoria Rubino Pro Speed, 700x25c

Wheel Size

700c

Brakes

Shimano Ultegra Di2 R8170 hydraulic disc, 160/140mm MT800 rotors

Brake Levers

Shimano Ultegra Di2 R8170 hydraulic disc

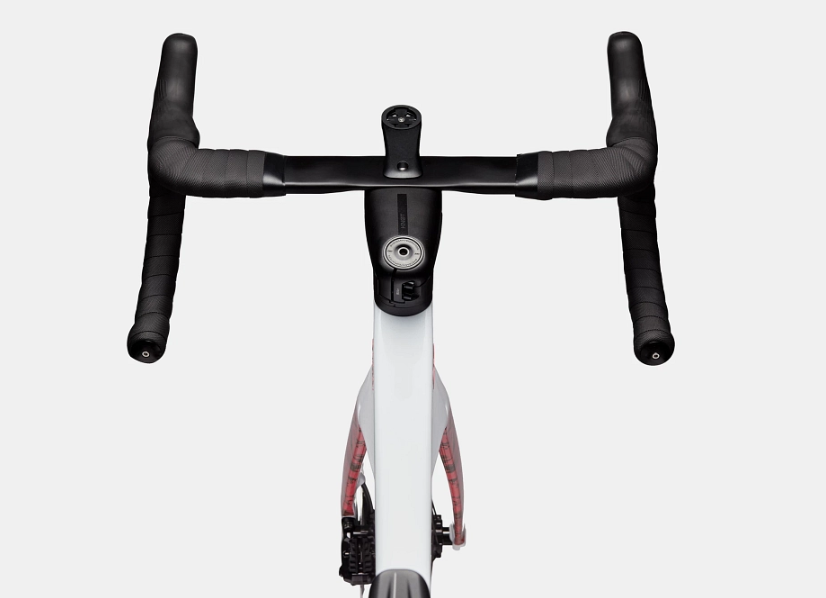

Handlebar

HollowGram KNØT SystemBar, Carbon, 8 deg. pitch adjust

Stem

HollowGram KNØT, Alloy w/ cable cover, -17°

Headset

Integrated, 1-1/8" - 1-1/4"

Saddle

Fizik Tempo Argo R5, 150mm width, S-Alloy rails

Seatpost

HollowGram 60 KNØT Carbon, 330mm

Seatpost Clamp

Integrated

Grips

Cannondale Bar Tape, 3.5mm

Front Hub

HollowGram KNØT, sealed bearing 12x100mm centerlock

Rear Hub

HollowGram KNØT, 12x142mm centerlock w/ DT Swiss 350 internals

Rims

HollowGram 64 KNØT, Carbon, 20h front, 24h rear, 64mm deep, 21mm inner width, tubeless ready

Spokes

HollowGram, 2.0/1.8/2.0, straight-pull

Exterior Features

Cannondale Wheel Sensor
