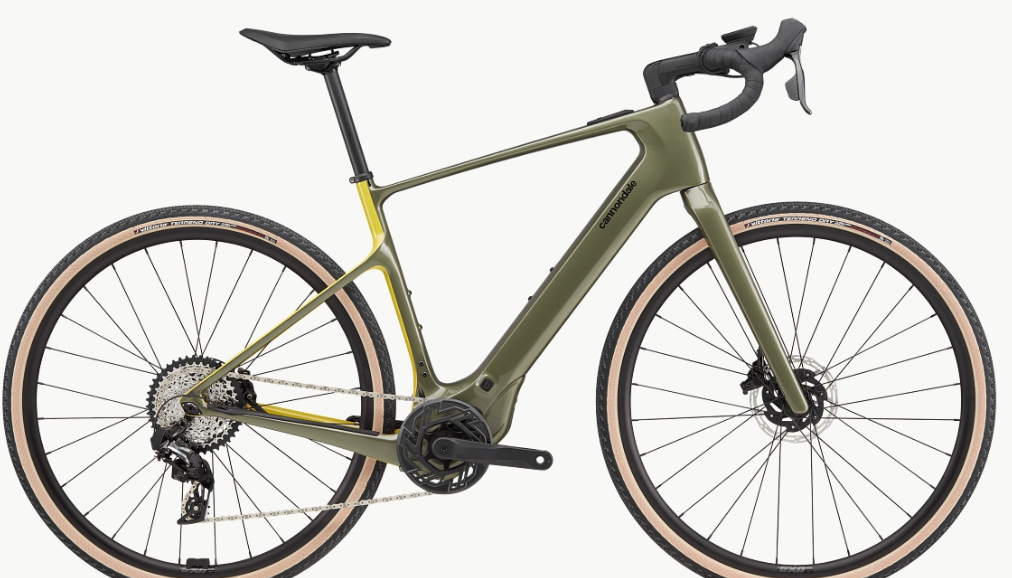

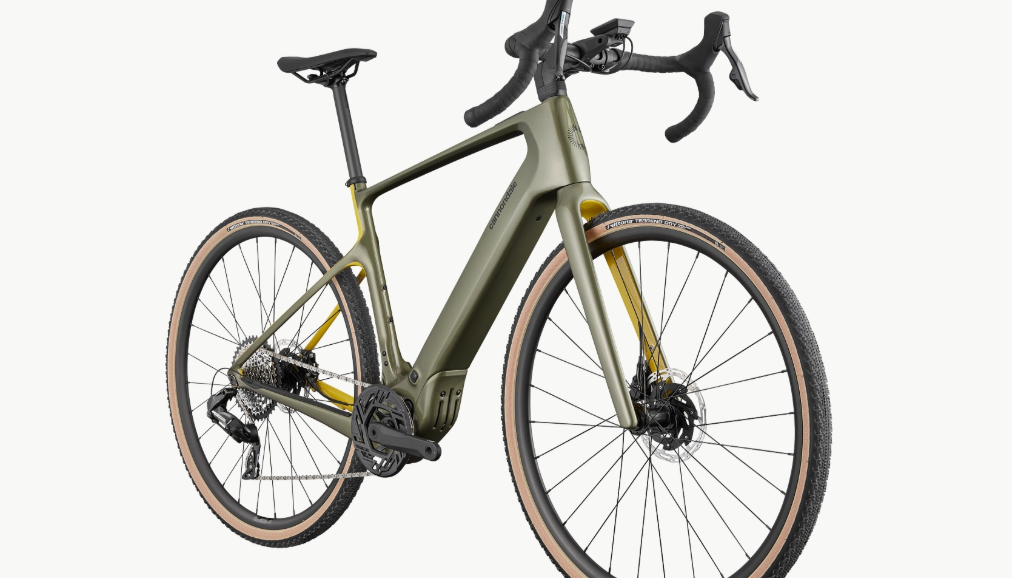

2025 Cannondale Synapse Neo Allroad 1 – Electric Road Bike
Specifications
|
Specification |
Details |
|
Model |
Synapse Neo Allroad 1 |
|
Vehicle Category |
Electric Road Bike |
|
Application |
Exploring backroads, spirited gravel rides, road less travelled |
|
Starting Price (2025) |
$7,699.00 USD |
|
Color Options |
Mantis |
Frame & Drivetrain
|
Specification |
Details |
|

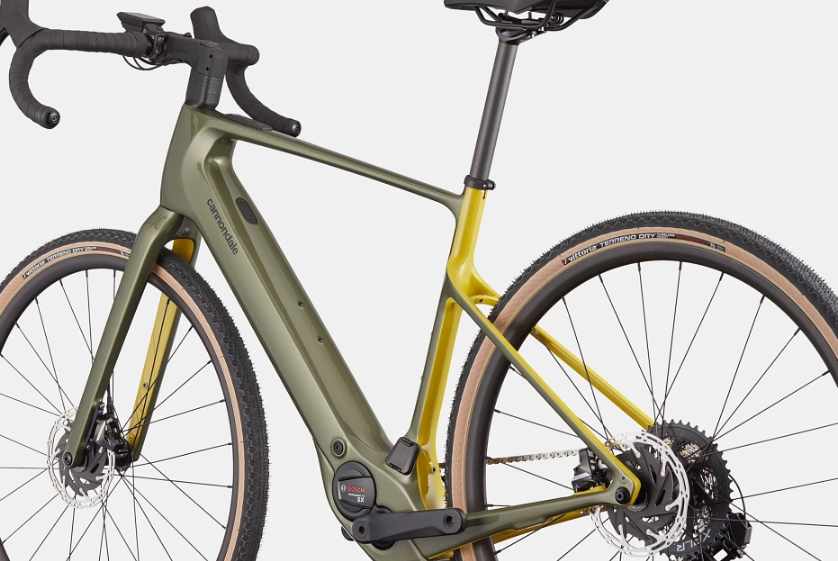

Frame |
Synapse Neo Carbon, internal downtube battery, integrated cable routing, 148mm dropout spacing, 12mm thru-axle, SAVE, flat mount disc, kickstand compatible (K17004 mounting bracket & K17014 kickstand required) |
|
Fork |
Synapse Neo Carbon, 1-1/8" to 1.5" Delta steerer, flat mount disc, internal routing, 12x110 thru-axle |
|
Drivetrain Compatibility |
SRAM Force AXS XPLR, 12-speed |
|
Dropouts |
12mm thru-axle (F: 12x110mm, R: 12x148mm) |
|
Bottom Bracket |
N/A (FSA Bosch E-Bike specific) |
|
Crank |
FSA Bosch E-Bike, SRAM Direct Mount, 38T |
|
Chain |
SRAM NX Eagle, 12-speed |
|

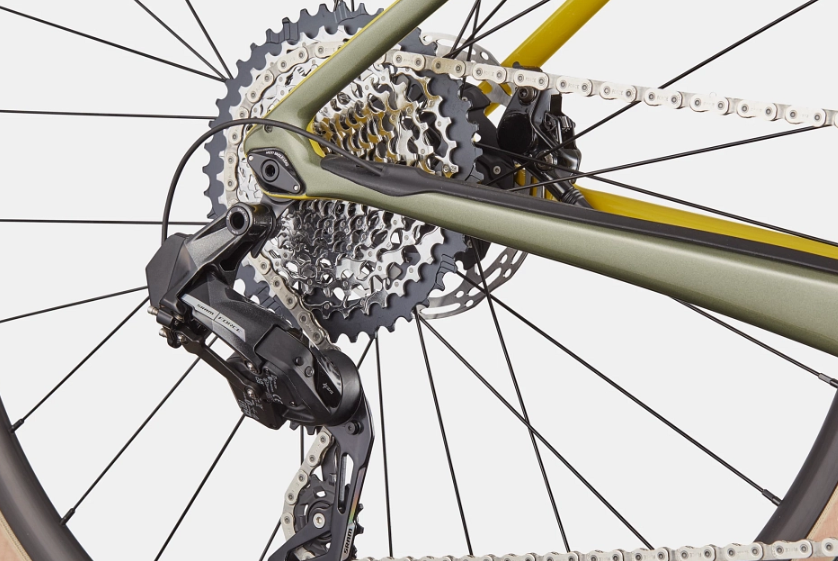

Rear Derailleur |
SRAM Force AXS XPLR |
|
Shifters |
SRAM Force eTap AXS HRD, 12-speed |
|
Cassette |
SRAM XG-1271 XPLR, 10-44, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Fizik Terra Argo X5, 150mm width, S-alloy rails) |
|
Fuel Type |
Electric |
|
Cargo Capacity |
Mounts for fenders, rear rack, kickstand (K17004 bracket & K17014 kickstand required) |
|
Wheels/Tyres |
(F) Vittoria Terreno Dry, 700x40c, tubeless ready / (R) Vittoria Terreno Dry, 700x40c, tubeless ready |
|
Wheel Size |
700c |
|
Brakes |
SRAM Force AXS, 160/160mm CenterLine X rotors |
|
Brake Levers |
SRAM Force eTap AXS HRD |
|
Handlebar |
Butted 6061 alloy, 20 deg flare drop |
|
Stem |
Cannondale C1 Conceal, Alloy, 31.8, -6° |
|
Headset |
Integrated, 1-1/8" - 1.5" |
|
Saddle |
Fizik Terra Argo X5, 150mm width, S-alloy rails |
|
Seatpost |
Cannondale 2, UD Carbon, 27.2x300mm (XS-S), 350mm (M), 400mm (L-XL) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Fabric Knurl tape, 3mm |
|
Front Hub |
Formula sealed cartridge bearing, 12x110mm thru-axle |
|
Rear Hub |
Formula sealed cartridge bearing, 12x148mm thru-axle |
|
Rims |
Cannondale GXD10, alloy double-wall rim, 28h |
|
Spokes |
Stainless Steel, 14g |
|
Exterior Features |
Mounts for fenders, rear rack, kickstand (K17004 bracket & K17014 kickstand required) |
|
Drive Unit |
Bosch Performance Line SX, 25 km/h |
|
Battery |
Bosch Compact Powertube 400Wh |
|
Charger |
Bosch 2A |
|

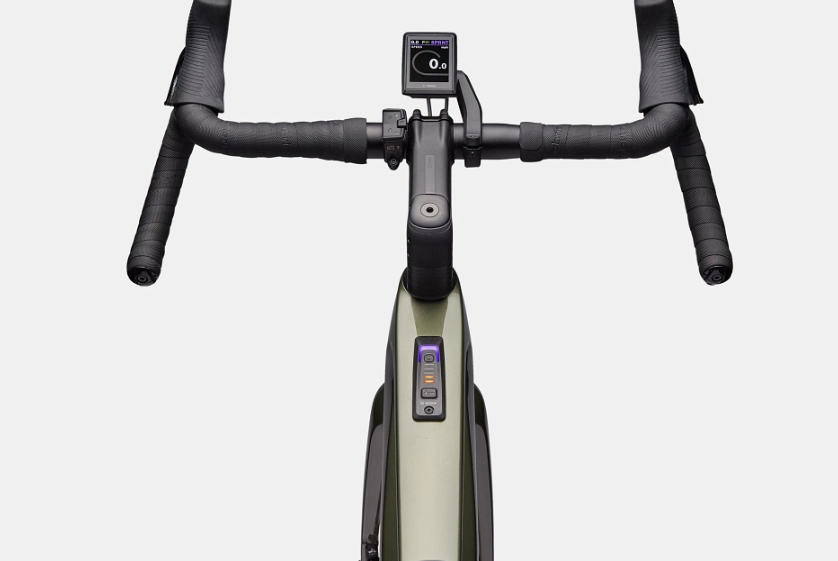

Display |
Bosch Kiox 300 |
|
Certifications |
Class 3: pedal assist up to 28 mph |
|
Weight |
850 grams (frame only, size MD); 9.0 kg (complete bike, size MD, estimated) |
