Specification

Details

Model

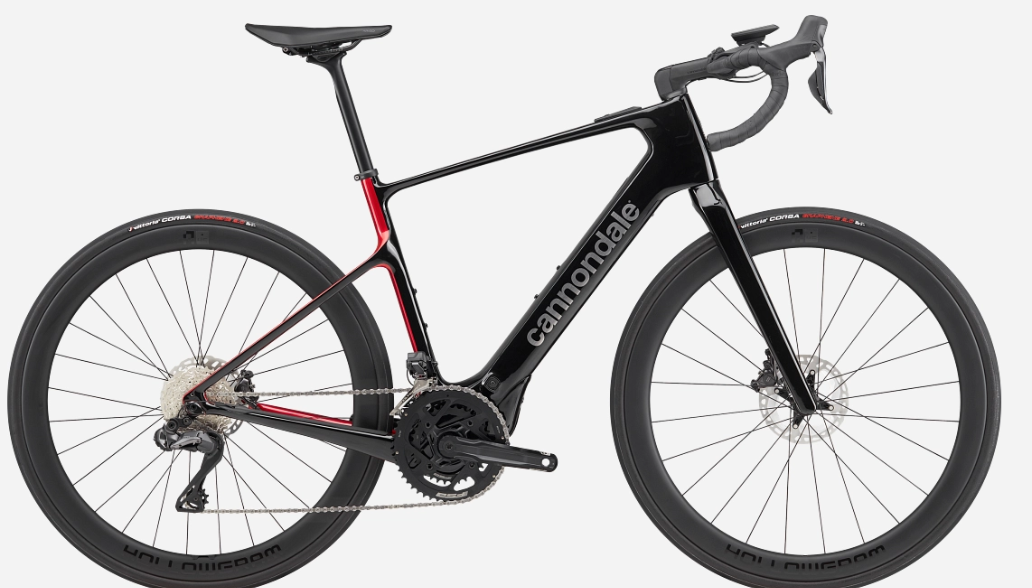

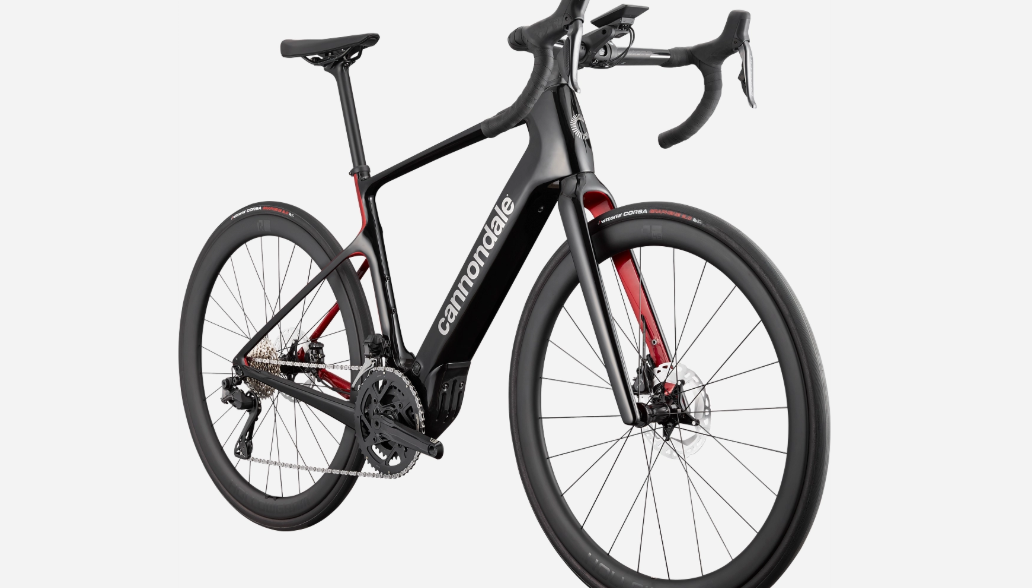

Synapse Neo

Vehicle Category

Electric Road Bike

Application

Endurance e-road riding

Starting Price (2025)

$8,500.00 USD

Color Options

Black

Specification

Details

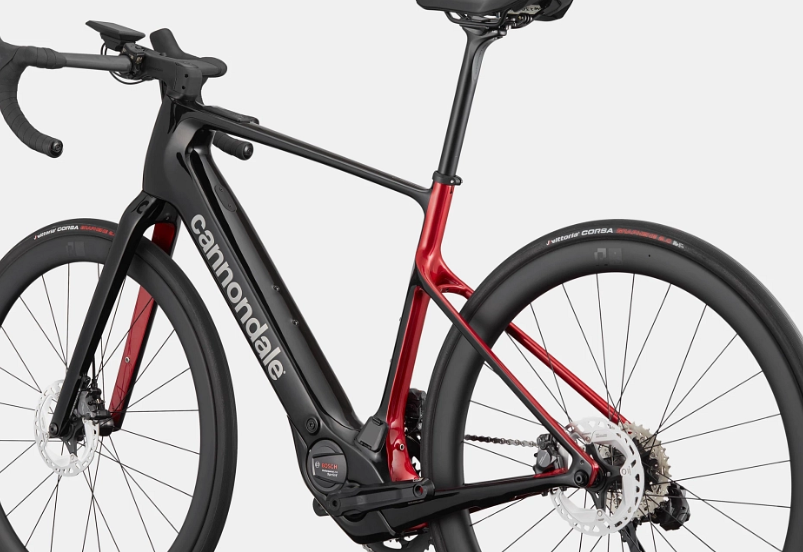

Frame

Synapse Neo Carbon, internal downtube battery, integrated cable routing, 148mm dropout spacing, 12mm thru-axle, SAVE, flat mount disc, kickstand compatible (K17004 mounting bracket & K17014 kickstand required)

Fork

Synapse Neo Carbon, 1-1/8" to 1.5" Delta steerer, flat mount disc, internal routing, 12x110 thru-axle

Drivetrain Compatibility

Shimano Ultegra Di2 R8150, 2x12-speed

Dropouts

12x148mm thru-axle (rear), 12x110mm thru-axle (front)

Bottom Bracket

Bosch, press-fit

Crank

FSA Bosch E-Bike, 50/34

Chain

Shimano Ultegra, 12-speed

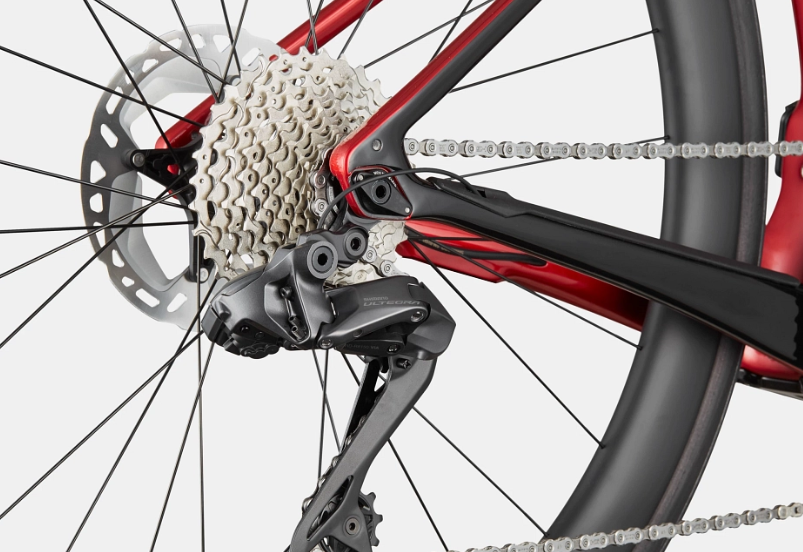

Rear Derailleur

Shimano Ultegra Di2 R8150, 12-speed

Front Derailleur

Shimano Ultegra Di2 8150, braze-on

Shifters

Shimano Ultegra Di2 8150, 12-speed

Cassette

Shimano Ultegra, 11-34, 12-speed

Specification

Details

Seating

1 passenger (Fizik Tempo Argo R5, 150mm width, S-alloy rails)

Fuel Type

Electric

Wheels/Tyres

Vittoria Corsa, 700x30c

Wheel Size

700c

Brakes

Shimano Ultegra Di2 hydraulic disc, 160/160mm MT800 rotors

Brake Levers

Shimano Ultegra Di2 hydraulic disc

Handlebar

Vision Metron Aero

Stem

Cannondale C1 Conceal, Alloy, 31.8, -6°

Headset

Integrated, 1-1/8" - 1.5"

Saddle

Fizik Tempo Argo R5, 150mm width, S-alloy rails

Seatpost

Cannondale 1, SAVE, UD Carbon, 25.4x350mm (XS-S), 400mm (M-XL)

Seatpost Clamp

Integrated

Grips

Fabric Knurl tape, 3mm

Front Hub

HollowGram, sealed bearing 12x110mm centerlock

Rear Hub

HollowGram 3-pawl, sealed bearing, 12x148mm centerlock

Rims

HollowGram R 45, Carbon, 24h front, 28h rear, 50mm deep, 21mm inner width, tubeless ready

Spokes

Stainless Steel, 14g

Exterior Features

Cannondale Wheel Sensor

Drive Unit

Bosch Performance Line Sprint, 28mph

Battery

Bosch Compact Powertube 400Wh

Charger

Bosch 2A

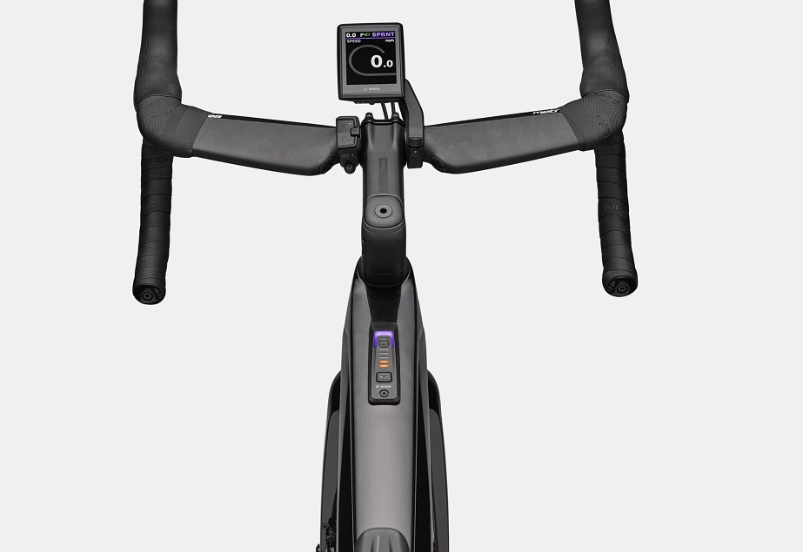

Display

Bosch Kiox 500

Certifications

UL 2849
