Specification

Details

Model

Synapse Carbon Tiagra

Vehicle Category

Road Bike

Application

Endurance road riding, gravel roads, competition

Starting Price (2025)

$2,999.00 USD

Color Options

Midnight Blue

Specification

Details

Frame

BallisTec Carbon, Di2 ready, SAVE, BB30a, flat mount, 12x142mm thru-axle, internal cable routing, removable fender bridge

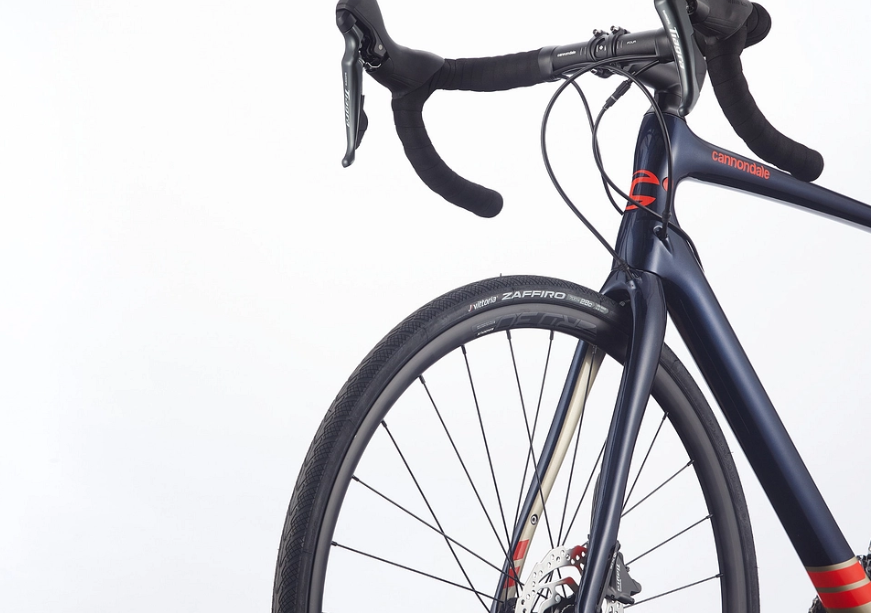

Fork

BallisTec Full Carbon, integrated crown race, SAVE, size-specific design, 12x100mm thru-axle, internal routing

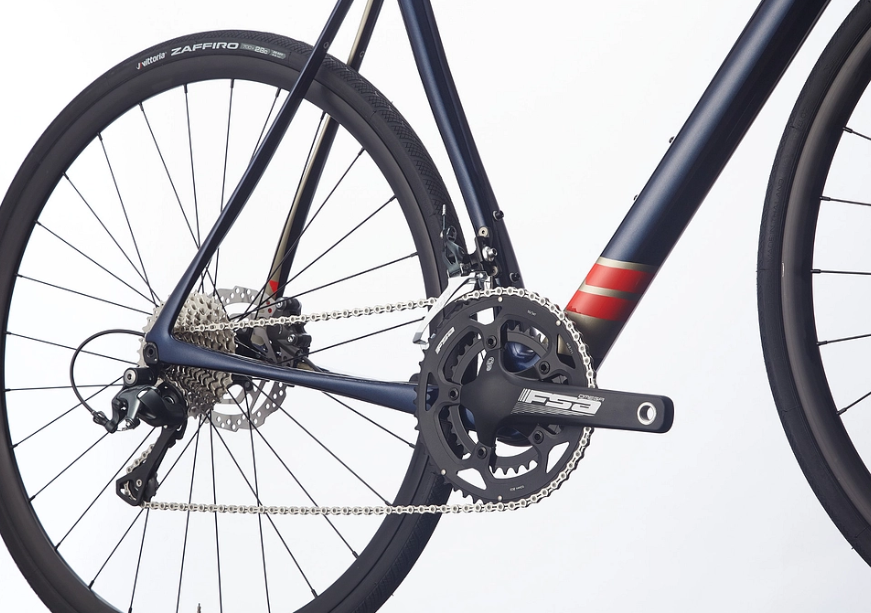

Drivetrain Compatibility

Shimano Tiagra, 10-speed

Dropouts

12x142mm thru-axle

Bottom Bracket

FSA Cartridge

Crank

FSA Omega Alloy, 50/34

Chain

KMC X10EL, 10-speed

Rear Derailleur

Shimano Tiagra GS

Front Derailleur

Shimano Tiagra, braze-on

Shifters

Shimano Tiagra hydraulic disc, 10-speed

Cassette

Shimano HG500, 11-34, 10-speed

Specification

Details

Seating

1 passenger (Fizik Aliante Delta, S-alloy rails)

Cargo Capacity

Removable fender bridge

Wheels/Tyres

(F) Vittoria Zaffiro, 700x30c / (R) Vittoria Zaffiro, 700x30c

Wheel Size

700c

Brakes

Shimano Tiagra hydraulic disc, 160/160mm rotors

Brake Levers

Shimano Tiagra hydraulic disc

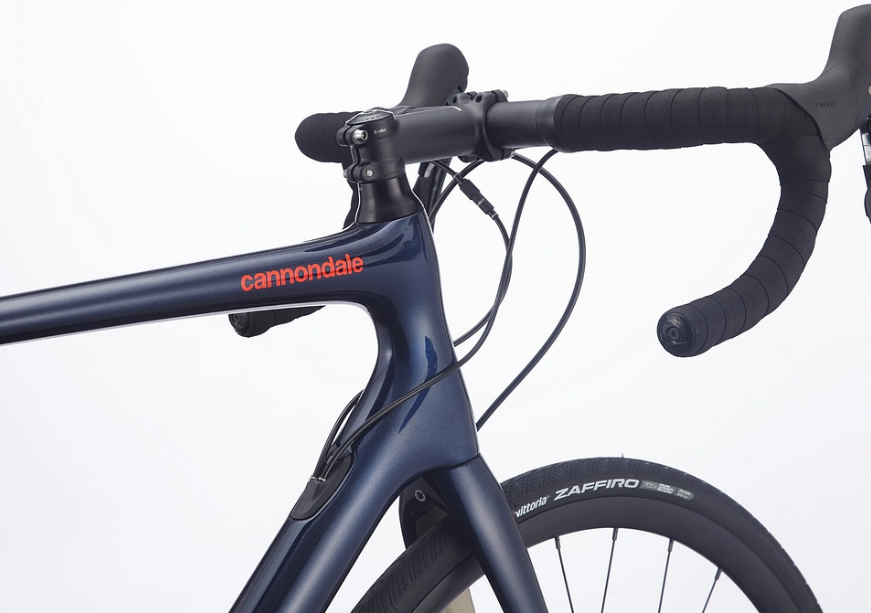

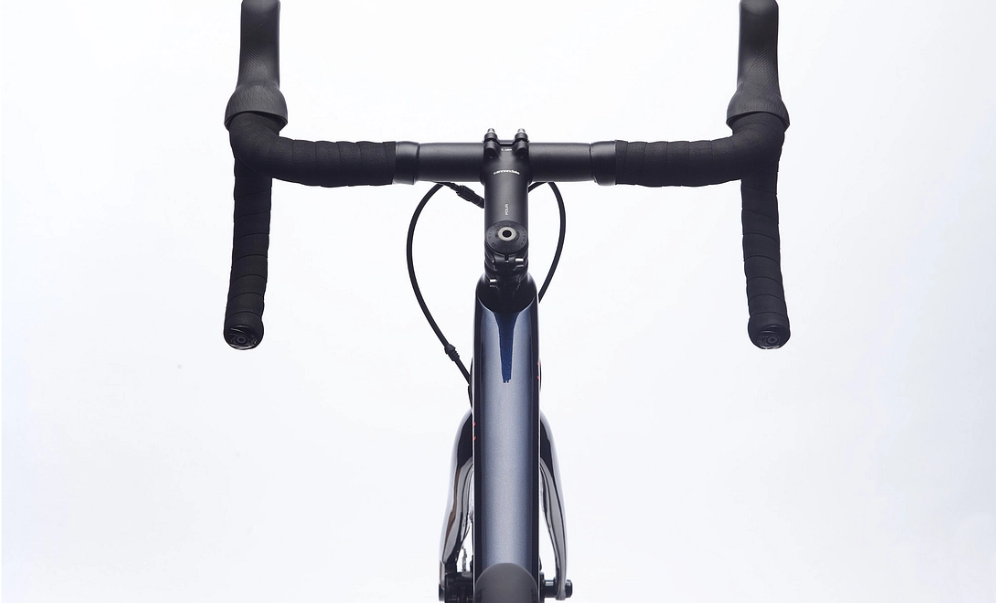

Handlebar

Cannondale 4, 6061 Alloy, Compact

Stem

Cannondale 4, 6061 Alloy, 31.8, 7°

Headset

Synapse Carbon, integrated, 1-1/8" - 1-1/8" (48cm), 1-1/8" - 1-1/4" (51-54cm), 1-1/8" - 1-3/8" (56-61cm)

Saddle

Fizik Aliante Delta, S-alloy rails

Seatpost

Cannondale 4, 6061 Alloy, 25.4x300mm (48-51), 350mm (54-56), 400mm (58-61)

Seatpost Clamp

Integrated

Grips

Cannondale Bar Tape, 3.5mm

Front Hub

Formula CL-712, 12x100mm centerlock

Rear Hub

Formula RXC-400, 12x142mm centerlock

Rims

RD 2.0, 28h

Spokes

Stainless steel, 14g

Exterior Features

Removable fender bridge

Weight

850 grams (frame only, size 56cm); 9.4 kg (complete bike, size 56cm)
