Specification

Details

Model

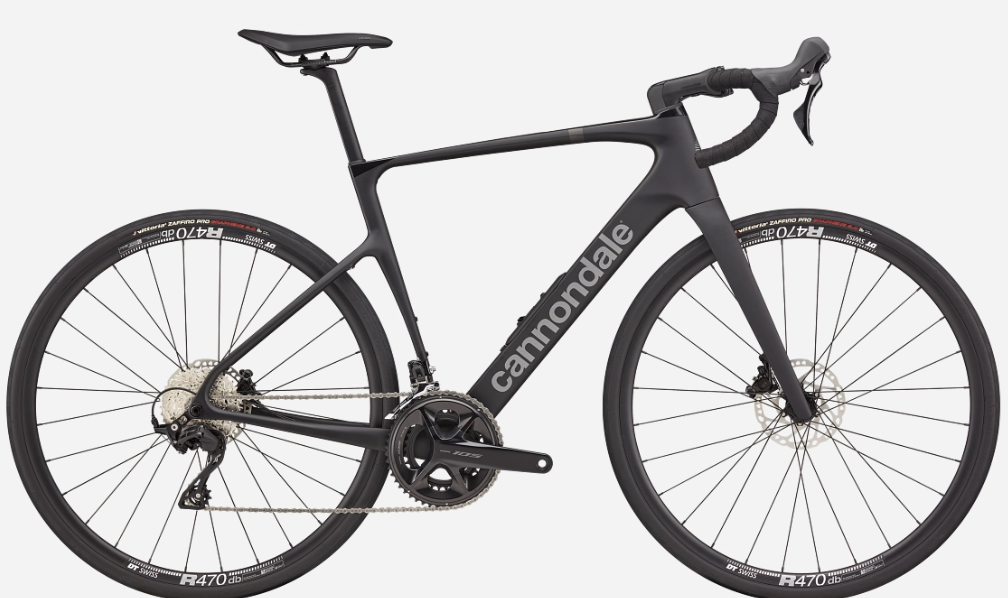

Synapse Carbon 5

Vehicle Category

Road Bike

Application

Endurance road riding

Starting Price (2025)

$2,600.00 USD

Color Options

Black

Specification

Details

Frame

Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts

Fork

Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts

Drivetrain Compatibility

Shimano 105 7100, 2x12-speed

Dropouts

12x142mm thru-axle (rear), 12x100mm thru-axle (front)

Bottom Bracket

Shimano BSA 68

Crank

Shimano 105 7100, BSA, 50/34: 165mm (44cm), 170mm (48-51cm), 172.5mm (54-56cm), 175mm (58-61cm)

Chain

Shimano 105 7100, 12-speed

Rear Derailleur

Shimano 105 7100

Front Derailleur

Shimano 105 7100, braze-on

Shifters

Shimano 105 7100, 12-speed

Cassette

Shimano 105 7100, 11-36, 12-speed

Specification

Details

Seating

1 passenger (Fizik Terra Argo X7, 150mm)

Wheels/Tyres

Vittoria Zaffiro Pro V, 700x32c

Wheel Size

700c

Brakes

Shimano 105 7170 hydraulic disc, 160/160mm RT64 centerlock rotors

Brake Levers

Shimano 105 7120 hydraulic disc

Handlebar

Vision Trimax Aero Alloy: 400mm (44-51cm), 420mm (54-61cm)

Stem

Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44-48cm), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm)

Headset

Integrated, 1-1/8" - 1-1/2"

Saddle

Fizik Terra Argo X7, 150mm

Seatpost

HollowGram 27, Alloy, 2 bolt clamp, 330mm, 15mm offset

Seatpost Clamp

Integrated

Grips

Cannondale Bar Tape, 3.5mm

Front Hub

Shimano RS470, 12x100mm centerlock

Rear Hub

Shimano RS470, 12x142mm centerlock

Rims

DT Swiss R470 DB, 28h

Spokes

Stainless Steel, 14g

Pedals

Not included

Exterior Features

Cannondale Wheel Sensor, large StashBag downtube storage bag
