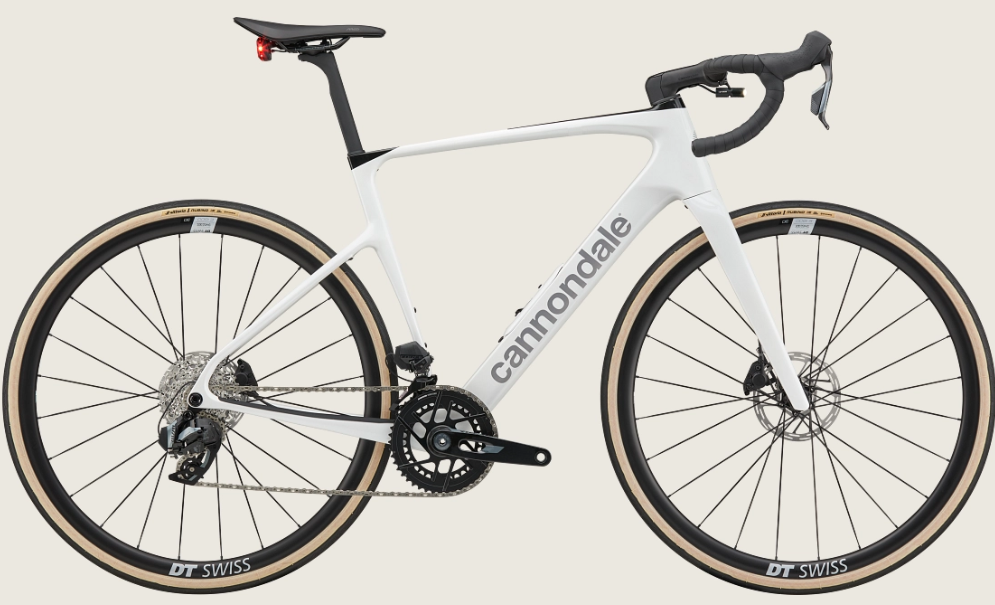

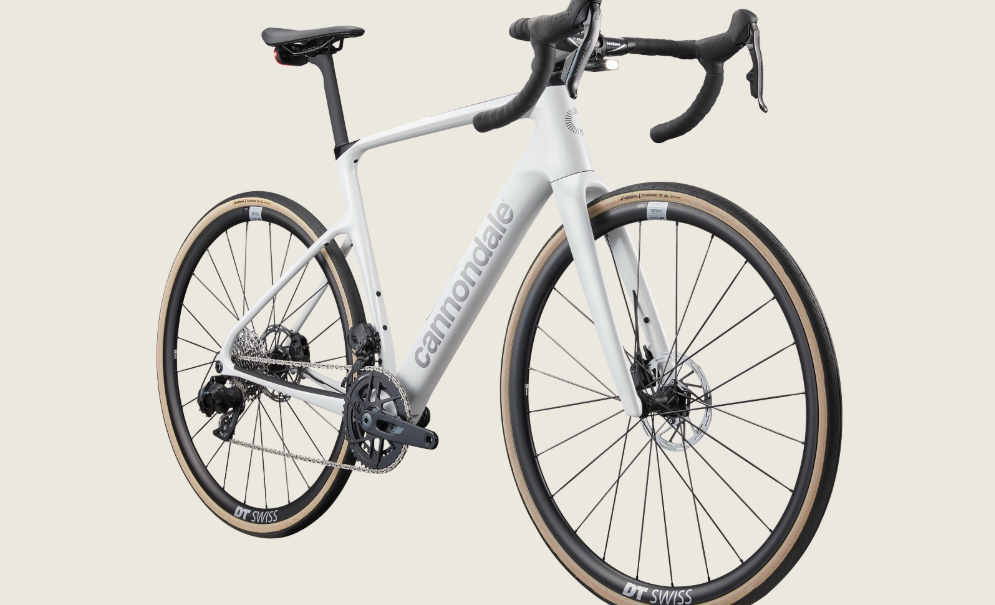

2025 Cannondale Synapse Carbon 3 SmartSense STVZO – Road Bike
Specifications
|
Specification |
Details |
|
Model |
Synapse Carbon 3 SmartSense STVZO |
|
Vehicle Category |
Road Bike |
|
Application |
Endurance road riding, long distance missions, fast group rides |
|
Starting Price (2025) |
$5,499.00 USD |
|
Color Options |
Cashmere |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 equipped, fender mounts |
|
Fork |
Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts |
|
Drivetrain Compatibility |
SRAM Rival AXS, 12-speed |
|
Dropouts |
12x142 thru-axle |
|
Bottom Bracket |
SRAM DUB BSA |
|
Crank |
SRAM Rival, 46/33: 165mm (44cm), 170mm (48-51cm), 172.5mm (54-56cm), 175mm (58-61cm) |
|
Chain |
SRAM Rival |
|

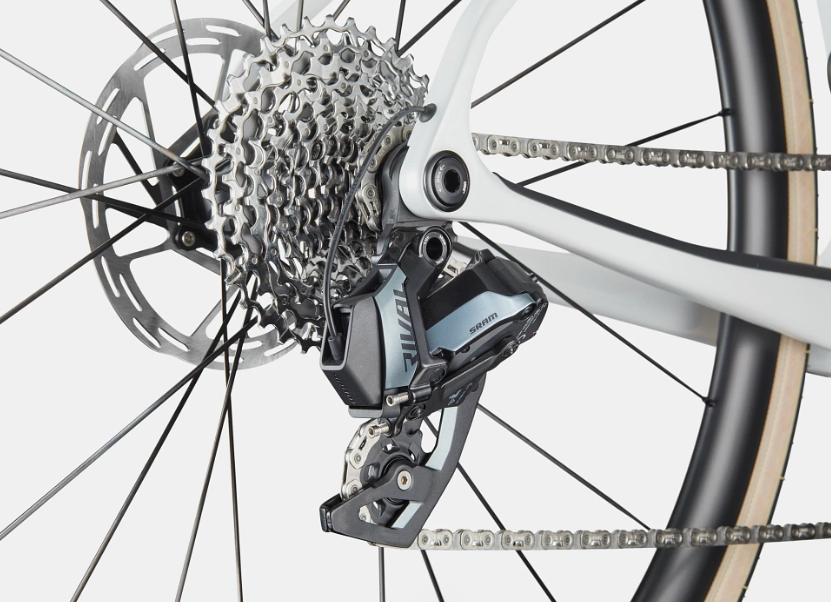

Rear Derailleur |
SRAM Rival AXS |
|
Front Derailleur |
SRAM Rival AXS, braze-on |
|
Shifters |
SRAM Rival AXS |
|
Cassette |
SRAM Rival, 10-36, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Fizik Vento Argo X5, 140mm) |
|
Cargo Capacity |
Downtube Stashport with large StashBag |
|
Wheels/Tyres |
(F) Vittoria Rubino Pro IV, 700x32c / (R) Vittoria Rubino Pro IV, 700x32c |
|
Wheel Size |
700c |
|
Brakes |
SRAM Rival AXS hydraulic disc, 160/160mm PaceLine centerlock rotors |
|
Brake Levers |
SRAM Rival AXS hydraulic disc |
|

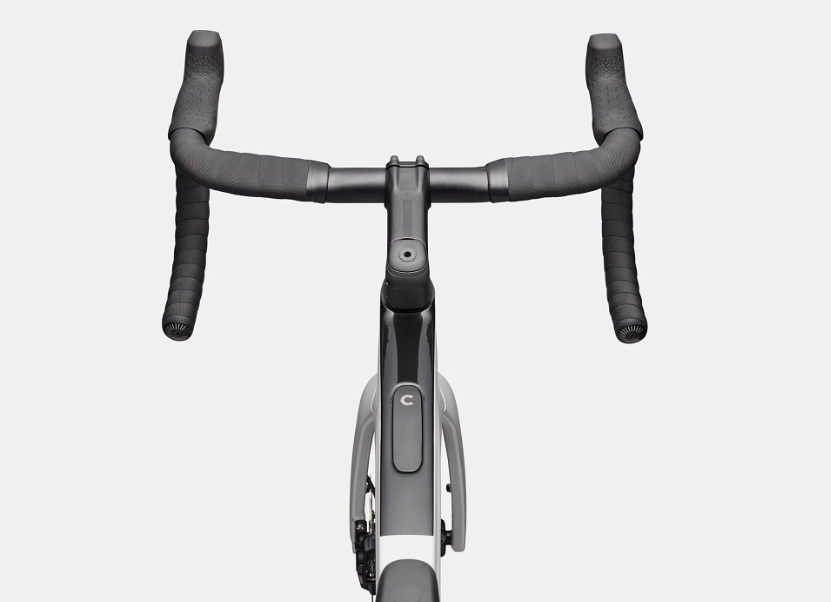

Handlebar |
SRAM Rival, 46/33: 165mm (44cm), 170mm (48-51cm), 172.5mm (54-56cm), 175mm (58-61cm) |
|
Stem |
Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44-48cm), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm) |
|
Headset |
Integrated, 1-1/8" - 1-1/2" |
|
Saddle |
Fizik Vento Argo X5, 140mm |
|
Seatpost |
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale Bar Tape, 3.5mm |
|
Front Hub |
DT Swiss 370, 12x100mm centerlock |
|
Rear Hub |
DT Swiss 370, 12x142mm centerlock |
|
Rims |
DT Swiss E1800 Spline, 24h, tubeless ready |
|
Spokes |
DT new aero® II Straightpull |
|
Exterior Features |
SmartSense Gen 2.0 system (Bluetooth BLE and ANT+ compatible: SmartSense LightSkin U1E 400 lumen STVZO headlight, SmartSense Garmin Varia eRTL 616 radar/STVZO taillight, SmartSense 43.2Wh removable battery w/integrated flashlight, SRAM AXS charging cable), large StashBag downtube storage bag, tubeless valves, Cannondale Wheel Sensor |
|
Weight |
850 grams (frame only, size 56cm); 8.5 kg (complete bike, size 56cm, estimated) |
