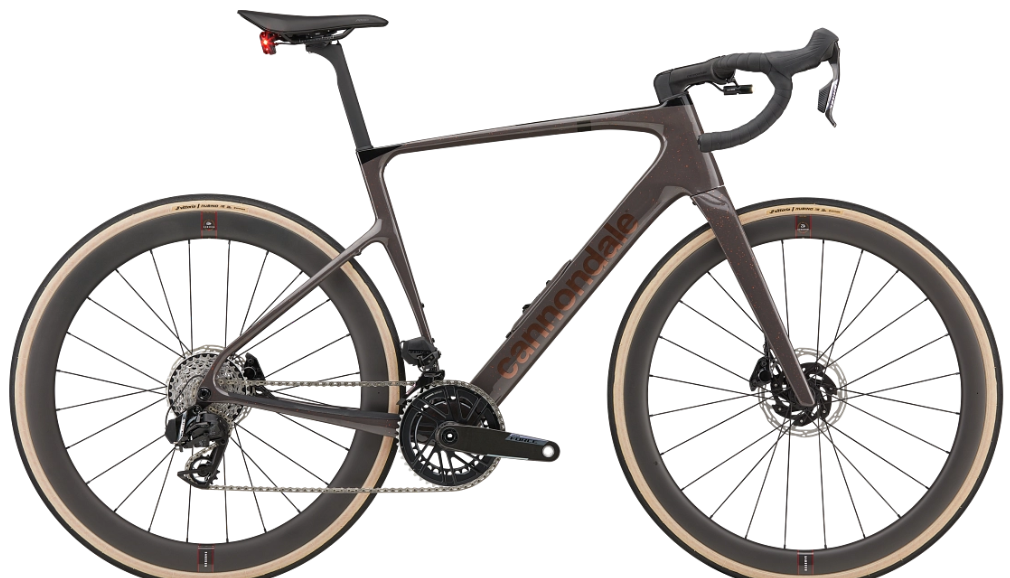

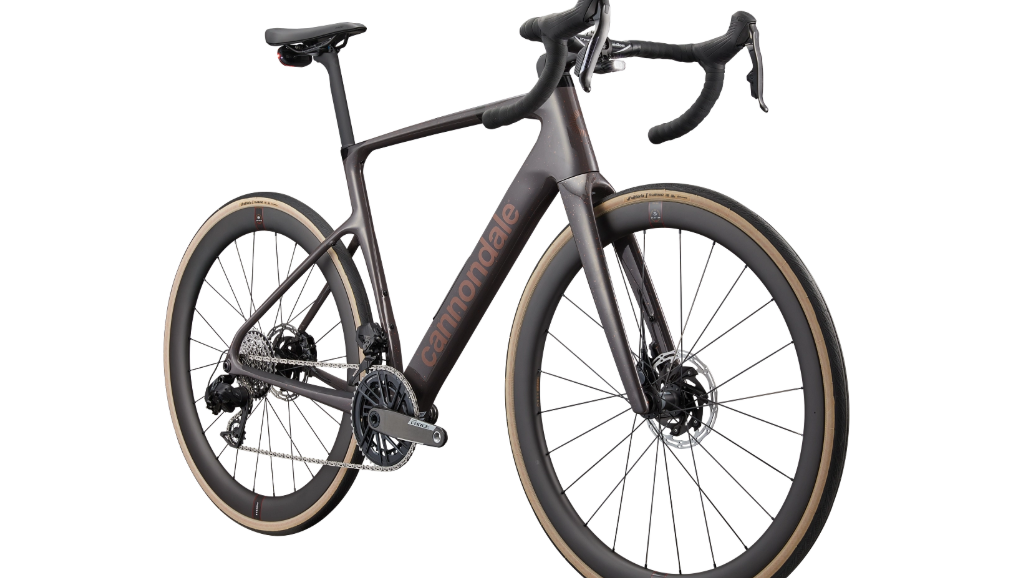

2025 Cannondale Synapse Carbon 2 SmartSense STVZO – Road Bike
Specifications
|
Specification |
Details |
|
Model |
Synapse Carbon 2 SmartSense STVZO |
|
Vehicle Category |
Road Bike |
|
Application |
Endurance road riding |
|
Starting Price (2025) |
$8,199.00 USD |
|
Color Options |
Copper Ore |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 equipped, fender mounts |
|
Fork |
Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts |
|
Drivetrain Compatibility |
SRAM Force AXS, 2x12-speed |
|
Dropouts |
12x142mm thru-axle (rear), 12x100mm thru-axle (front) |
|
Bottom Bracket |
SRAM DUB BSA |
|

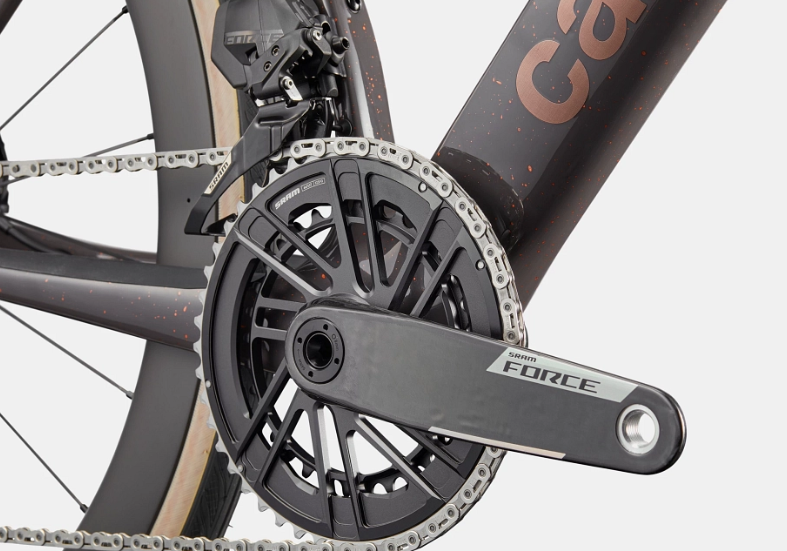

Crank |
SRAM Force, 46/33: 165mm (44cm), 170mm (48-51cm), 172.5mm (54-56cm), 175mm (58-61cm) |
|
Chain |
SRAM Force |
|

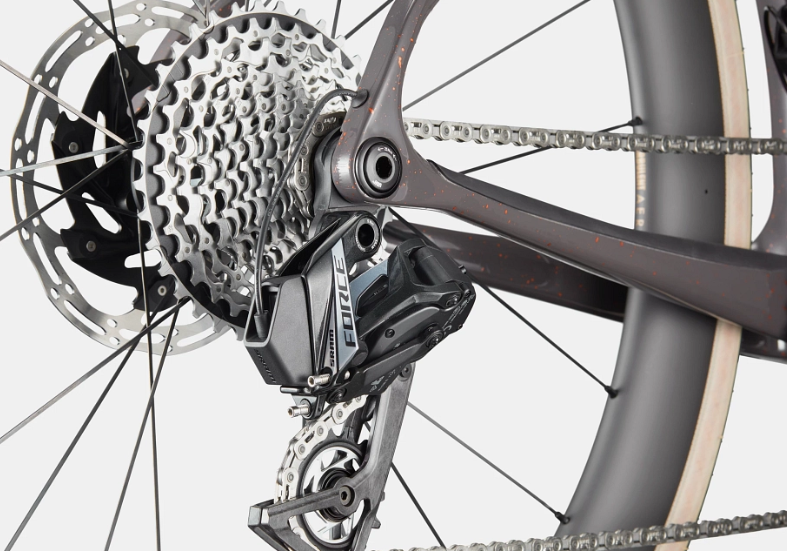

Rear Derailleur |
SRAM Force AXS |
|
Front Derailleur |
SRAM Force AXS, braze-on |
|
Shifters |
SRAM Force AXS |
|
Cassette |
SRAM Force XG-1270, 10-36, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Fizik Vento Argo R5, 140mm) |
|
Wheels/Tyres |
Vittoria Rubino Pro IV, 700x32c |
|
Wheel Size |
700c |
|
Brakes |
SRAM Force AXS hydraulic disc, 160/160mm Centerline XR centerlock rotors |
|
Brake Levers |
SRAM Force AXS hydraulic disc |
|

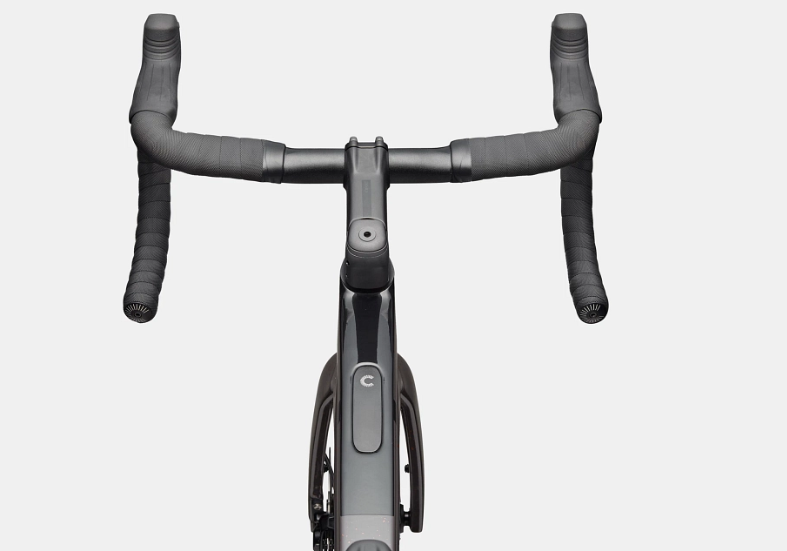

Handlebar |
Vision Trimax Aero Alloy: 400mm (44-51cm), 420mm (54-61cm) |
|
Stem |
Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44-48cm), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm) |
|
Headset |
Integrated, 1-1/8" - 1-1/2" |
|
Saddle |
Fizik Vento Argo R5, 140mm |
|
Seatpost |
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale Bar Tape, 3.5mm |
|
Front Hub |
DT Swiss 370, 12x100mm centerlock |
|
Rear Hub |
DT Swiss 370, 12x142mm centerlock |
|
Rims |
Reserve 42|49 Turbulent Aero, 24h, tubeless ready |
|
Spokes |
Sapim CX-Delta J-bend |
|
Exterior Features |
SmartSense Gen 2.0 system (Bluetooth BLE and ANT+ compatible: SmartSense LightSkin U1E ultra-compact 400 lumen variable output STVZO headlight, SmartSense Garmin Varia eRTL 616 rear-facing radar/STVZO taillight, SmartSense 43.2Wh removable internal battery w/integrated flashlight, SmartSense SRAM AXS charging cable), large StashBag downtube storage bag, Fillmore tubeless valves |
|
Battery |
SmartSense 43.2Wh removable internal battery w/integrated flashlight |
|
Charger |
SmartSense SRAM AXS charging cable |
|
Certifications |
STVZO-compliant (EU and Eastern Europe) |
