Specification

Details

Model

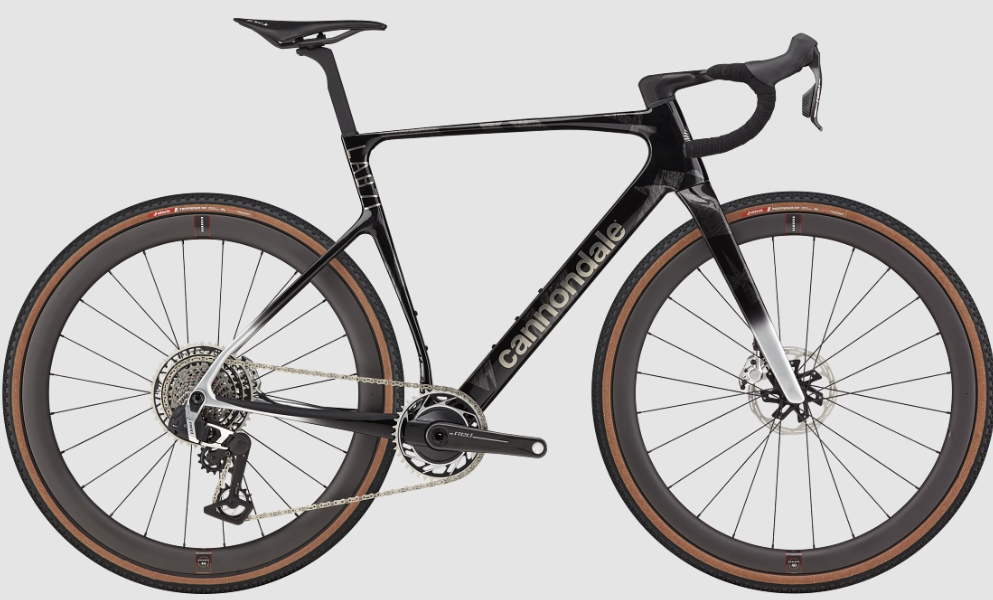

SuperX LAB71

Vehicle Category

Gravel Bike

Application

Gravel racing, cyclocross, rugged dirt roads

Starting Price (2025)

$16,499.00 USD

Color Options

Black Marble

Specification

Details

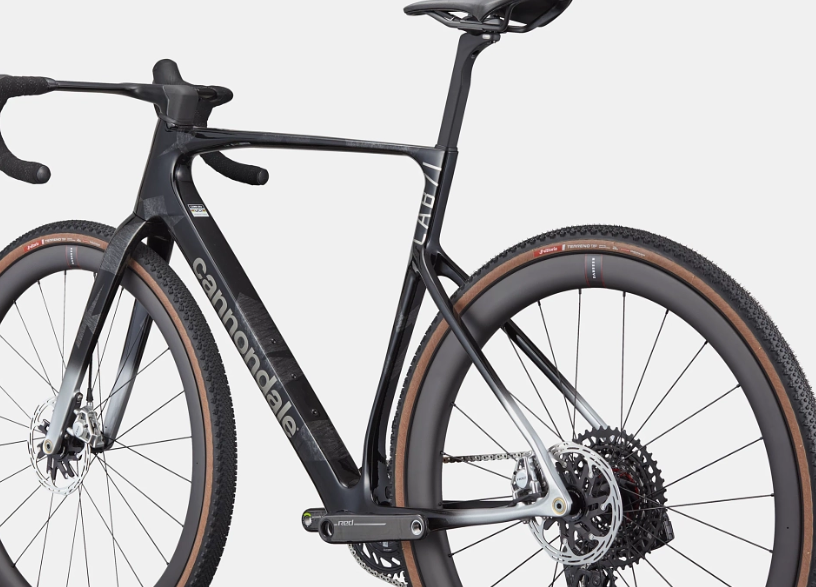

Frame

Lab71 SuperX, Series 0 carbon construction, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder

Fork

Lab71 SuperX, Series 0 carbon construction, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset

Drivetrain Compatibility

SRAM RED XPLR AXS, 13-speed

Dropouts

12x142mm thru-axle

Bottom Bracket

CeramicSpeed DUB BSA

Crank

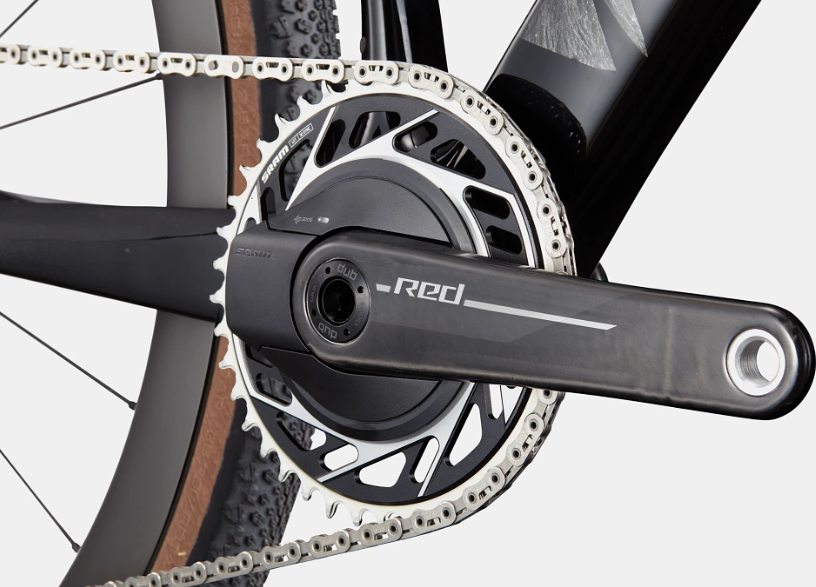

SRAM RED AXS Power Meter, 40T

Chain

SRAM RED, 13-speed

Rear Derailleur

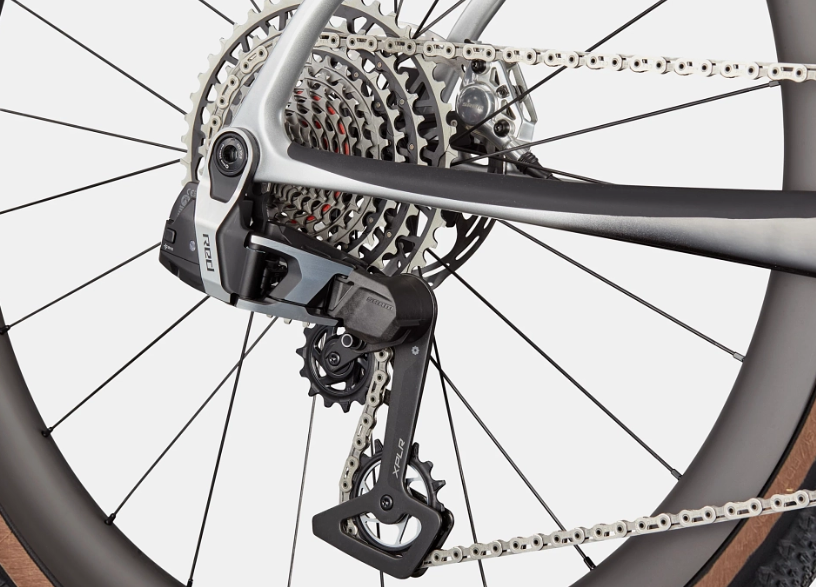

SRAM RED XPLR AXS

Shifters

SRAM RED XPLR, 13-speed

Cassette

SRAM RED XPLR, 10-46, 13-speed

Specification

Details

Seating

1 passenger (Fizik Vento Antares 00, carbon rail, 140mm)

Wheels/Tyres

(F) Vittoria Terreno T50, 700x40c, tubeless ready / (R) Vittoria Terreno T50, 700x40c, tubeless ready

Wheel Size

700c

Brakes

SRAM RED AXS, Paceline X 160/160mm rotors

Brake Levers

SRAM RED AXS hydraulic disc

Handlebar

Cannondale SystemBar R-One, low drag, full carbon integrated bar/stem, internal routing

Stem

Cannondale SystemBar R-One, low drag, full carbon integrated bar/stem, internal routing

Headset

Integrated, 1-1/8" - 1.5"

Saddle

Fizik Vento Antares 00, carbon rail, 140mm

Seatpost

Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm)

Seatpost Clamp

Integrated

Grips

Fizik Tempo Bondcush 3mm Soft

Front Hub

DT Swiss 180, 12x100mm centerlock

Rear Hub

DT Swiss 180, 12x142mm centerlock

Rims

Reserve 40|44 GR, Carbon, Turbulent Aero tech, 24h, tubeless ready

Spokes

Sapim CX-Ray Aero straight pull

Exterior Features

Reserve Fillmore valves, SRAM AXS charger, Cannondale Wheel Sensor

Weight

870 grams (frame only, size 56cm)
