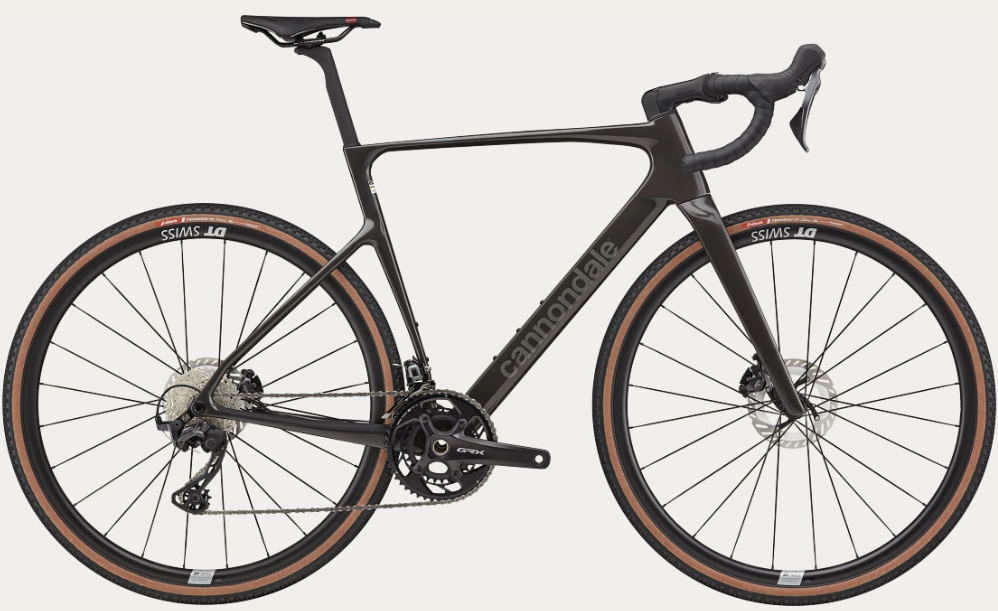

2025 Cannondale SuperX 1 – Gravel Bike

Images:

1

2

3

4

5

Specifications

Specification	Details
Model	SuperX 1
Vehicle Category	Gravel Bike
Application	Gravel racing
Starting Price (2025)	$8,799.00 USD
Color Options	Copper Ore

Frame & Drivetrain

Specification	Details
Frame	SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
Fork	SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
Drivetrain Compatibility	SRAM Force XPLR AXS, 1x13-speed
Dropouts	12x142mm thru-axle (rear), 12x100mm thru-axle (front)
Bottom Bracket	SRAM DUB BSA Road 68 Wide
Crank	Force XPLR AXS 42 w/ Power Meter
Chain	SRAM Force
Rear Derailleur	SRAM Force XPLR AXS
Shifters	SRAM Force
Cassette	SRAM Force XPLR, XG-1371, 10-46, 13-speed

Components & Features

Specification	Details
Seating	1 passenger (Prologo Dimension AGX Tirox)
Wheels/Tyres	Vittoria Terreno T50, 700x40c, tubeless ready
Wheel Size	700c
Brakes	SRAM FORCE AXS, Centerline X 160/160mm centerlock rotors
Brake Levers	SRAM Force AXS hydraulic disc

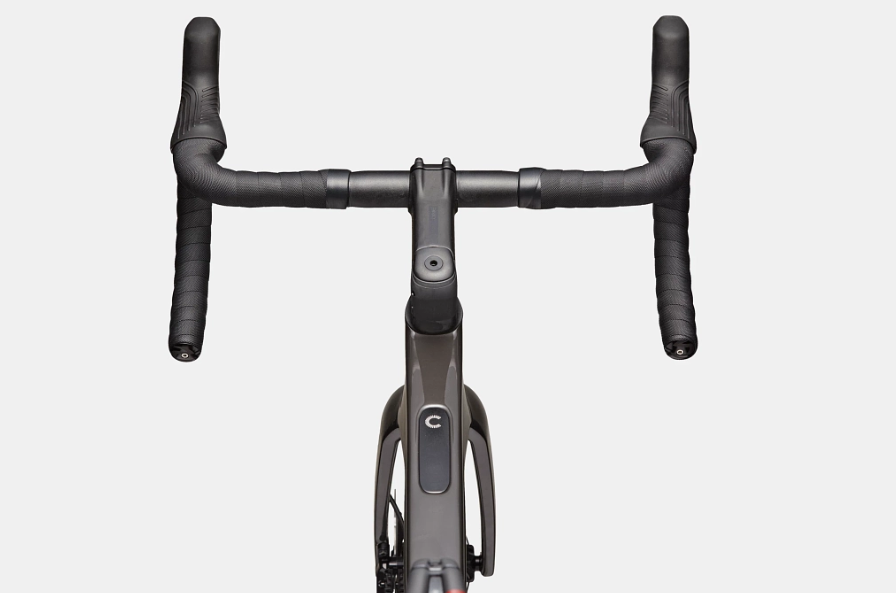

Handlebar	Cannondale SystemBar R-One, low drag, full carbon integrated bar/stem, internal routing
Stem	Cannondale SystemBar R-One, low drag, full carbon integrated bar/stem, internal routing
Headset	Integrated, 1-1/8" - 1.5"
Saddle	Prologo Dimension AGX Tirox
Seatpost	Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm)
Seatpost Clamp	Integrated
Grips	Cannondale Bar Tape, 3.5mm
Front Hub	DT Swiss 350, 12x100mm centerlock
Rear Hub	DT Swiss 350, 12x142mm centerlock
Rims	Reserve 40\|44 GR, Carbon, Turbulent Aero tech, 24h, tubeless ready
Spokes	Sapim CX-Ray Aero straight pull
Exterior Features	Cannondale Wheel Sensor, Reserve Fillmore valves, SRAM AXS charger

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
