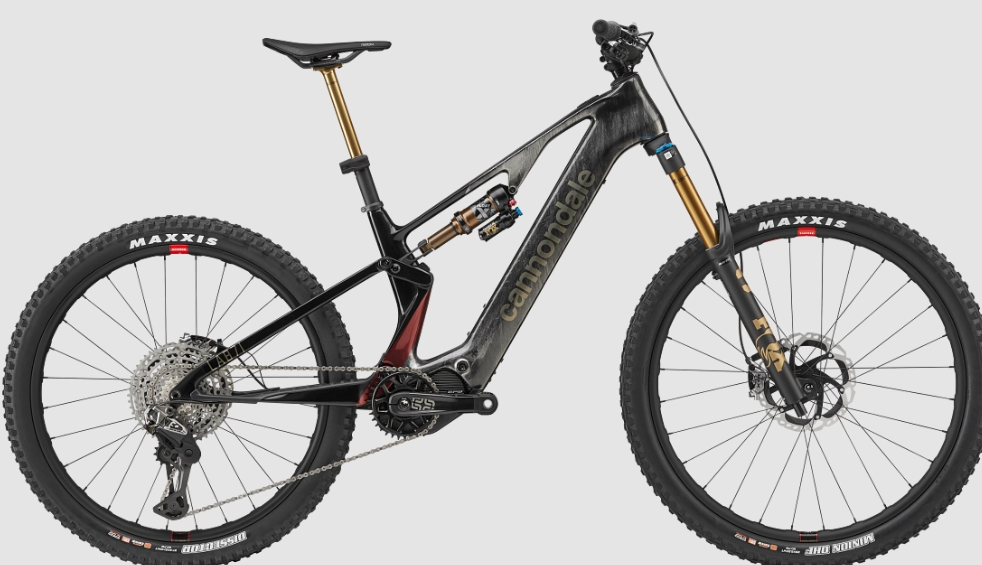

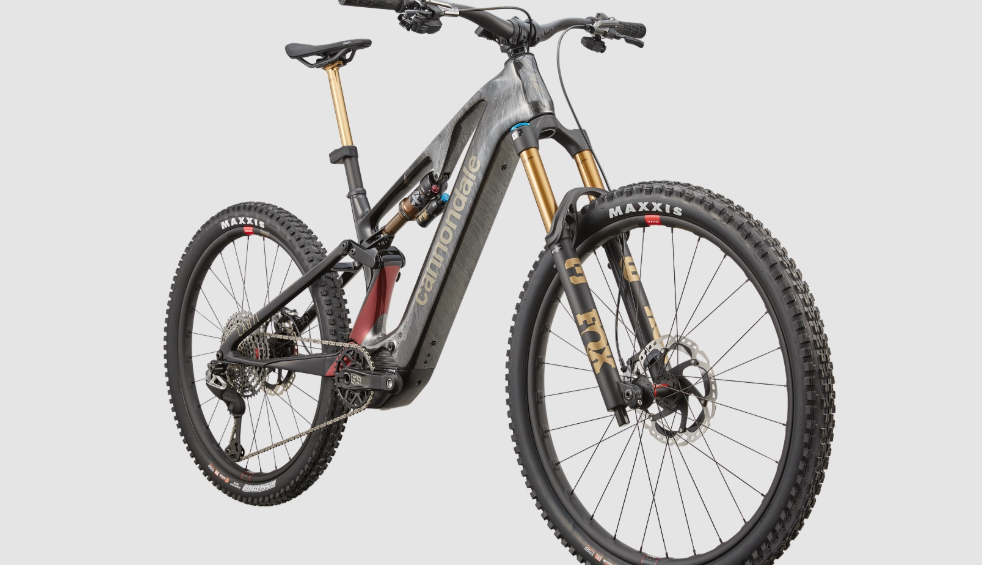

2025 Cannondale Moterra SL LAB71 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Moterra SL LAB71 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, technical climbs, descents |
|
Starting Price (2025) |
$14,000.00 USD |
|
Color Options |
Black Marble |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
LAB71 Moterra SL Carbon, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, DirectLine internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, angle adjust headset |
|
Fork |
Fox Float Factory 36, 160mm travel, Grip X2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset |
|
Rear Shock |
Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm |
|
Drivetrain Compatibility |
Shimano XTR Di2 M9260, 12-speed |
|
Dropouts |
148x12mm Maxle thru-axle |
|
Bottom Bracket |
Shimano, integrated |
|
Crank |
e*thirteen e*spec Race Carbon, 160mm (S/M), 165mm (L/XL), 34T |
|
Chain |
Shimano M9100, 12-speed |
|
Rear Derailleur |

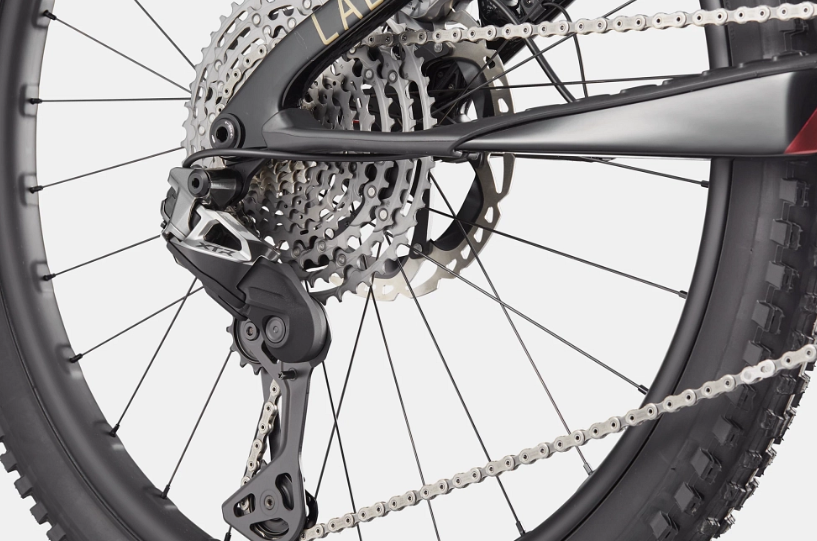

Shimano XTR Di2 M9260 wireless electronic, 12-speed |
|
Shifters |
Shimano XTR Di2 M9250 wireless electronic, I-SPEC EV, 12-speed |
|
Cassette |
Shimano XTR M9200, 10-51, 12-speed |
E-System
|
Specification |
Details |
|
Drive Unit |

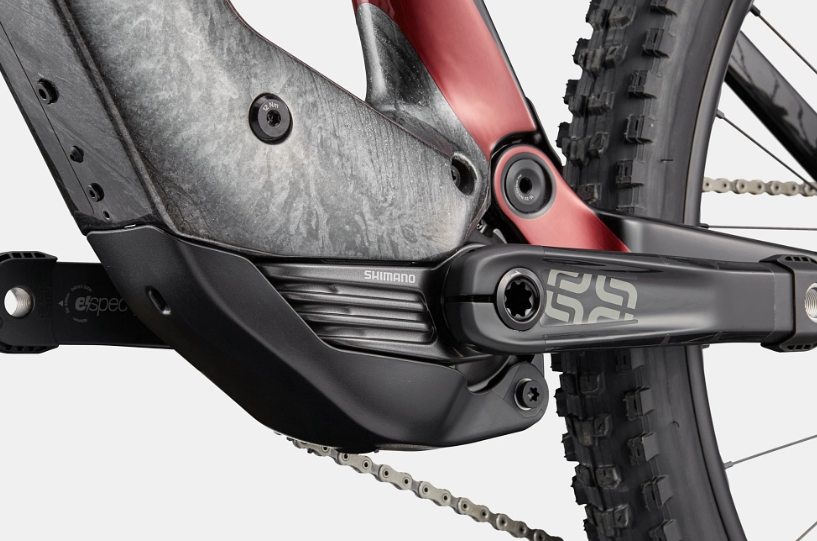

Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes |
|
Battery |
Custom, integrated, direct mount, 601Wh |
|
Charger |
Custom 4A |
|
Display |

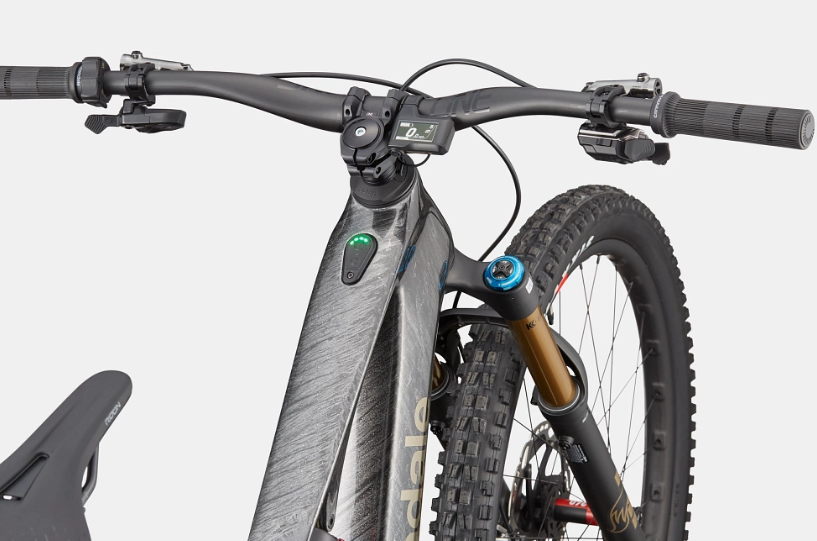

Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible |
|
Range |
Up to 100 km (62 miles) |
|
Certifications |
UL 2849 |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Fizik Terra Aidon X1, Mobius carbon rail) |
|
Fuel Type |
Electric |
|
Wheels/Tyres |
(F) Maxxis DHF, 29x2.5", 3C, EXO+, tubeless ready / (R) Maxxis Dissector, 27.5x2.4", 3C, EXO+, tubeless ready |
|
Wheel Size |
29" (F) / 27.5" (R) |
|
Brakes |
Shimano XTR M9220 4-piston hydraulic disc, 203/203mm MT905 6-bolt rotors |
|
Brake Levers |
Shimano XTR M9200 hydraulic disc |
|
Handlebar |
OneUp Carbon Ebar, 35mm clamp, 35mm Rise, 8° sweep, 5° rise, 780mm |
|
Stem |
OneUp Stem, 6061 Alloy, 1-1/8", 35mm, 0° |
|
Headset |
Acros Adjustable Angle (1.2°) |
|
Saddle |
Fizik Terra Aidon X1, Mobius carbon rail |
|
Seatpost |
Fox Factory Transfer Neo wireless dropper, 31.6, 150mm (S), 175mm (M), 200mm (L-XL) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale TaperRidge |
|
Front Hub |
DT Swiss 240, 15x110mm |
|
Rear Hub |
DT Swiss 240, 12x148mm |
|
Rims |
Reserve 30 SL Carbon, 30mm inner width, 28h, tubeless ready |
|
Spokes |
Sapim D-Light |
|
Exterior Features |
Fillmore tubeless valves |
