Specification

Details

Model

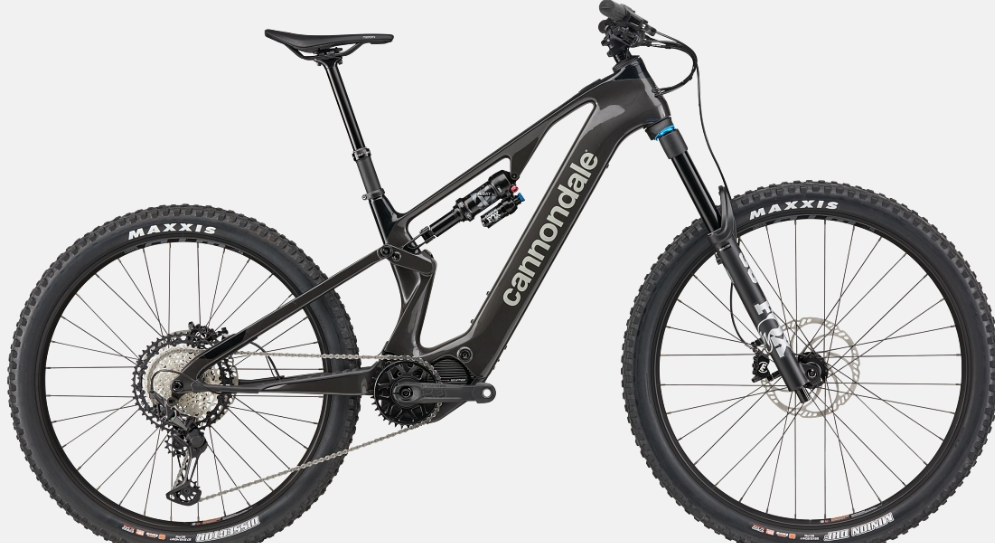

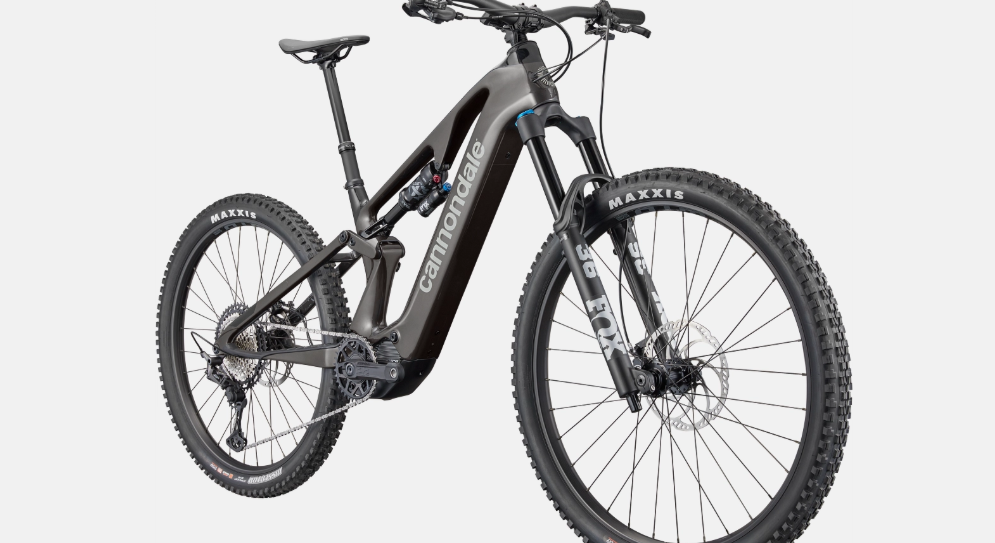

Moterra SL 2

Vehicle Category

Electric Mountain Bike

Application

Fast, fluid, ridiculously fun trail riding on everything from the steep and techy to the fast and flowy

Starting Price (2025)

$6,499.00 USD

Color Options

Smoke Black, Tiger Shark, Candy Red

Specification

Details

Frame

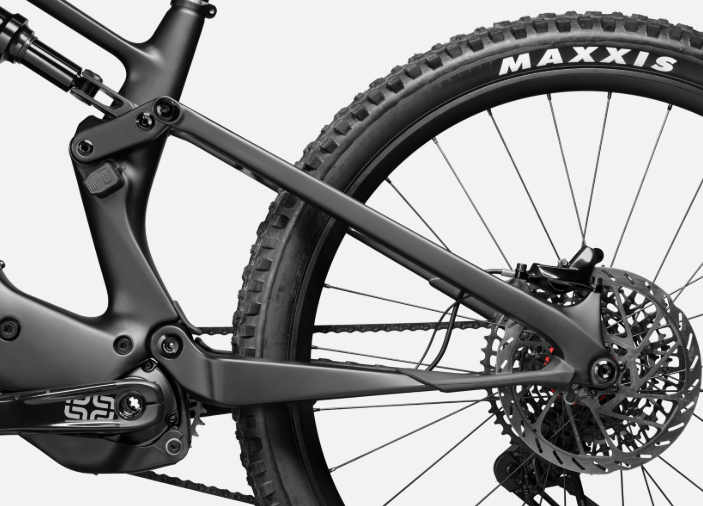

Moterra SL Carbon, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, angle adjust headset

Fork

Fox Performance 36, 160mm travel, Grip Damper, 3-position adjust, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset

Rear Shock

Fox Float X Performance Elite, 2 pos adj, EVOL LV, 210x55mm

Drivetrain Compatibility

Shimano XT/Deore, 12-speed

Dropouts

148x12mm Maxle thru-axle, UDH hanger

Bottom Bracket

Not specified (Shimano EP801 integrated)

Crankset

e*thirteen e*spec Plus, 160mm (S/M), 165mm (L/XL), 34T

Chain

Shimano XT, 12-speed

Rear Derailleur

Shimano XT

Shifter

Shimano XT, 12-speed

Cassette

Shimano XT, 10-51, 12-speed

Specification

Details

Seating

1 rider (Fizik Terra Aidon X5, Mobius S alloy rail)

Fuel Type

Electric (Custom 601Wh battery)

Wheels/Tyres

(F) Maxxis DHF, 29x2.5", 3C, EXO+, tubeless ready / (R) Maxxis Dissector, 27.5x2.4", 3C, EXO+, tubeless ready

Wheel Size

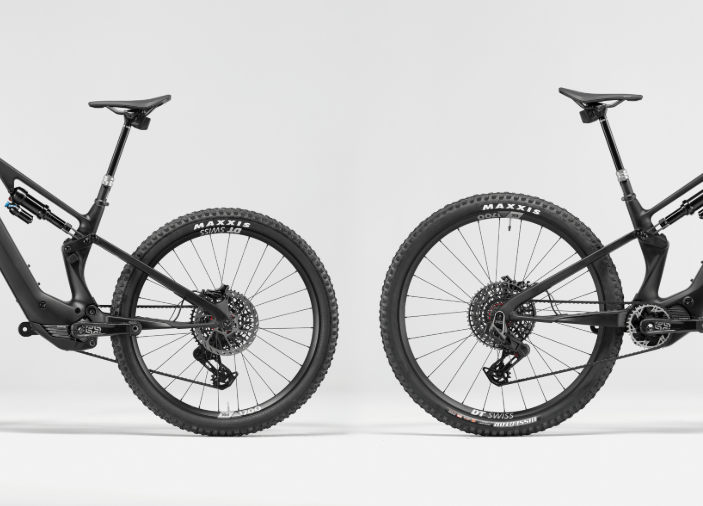

29" (front), 27.5" (rear)

Brakes

Magura MT5 4-piston hydraulic disc, 203/203mm Storm HC 6-bolt rotors

Brake Levers

Magura MT5 hydraulic disc

Handlebar

Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm

Stem

Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°

Headset

Acros Adjustable Angle (1.2°)

Saddle

Fizik Terra Aidon X5, Mobius S alloy rail

Seatpost

Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-L), 200mm (XL)

Seatpost Clamp

Integrated

Grips

Cannondale TaperRidge

Front Hub

Formula DC-71132h, 15x110mm

Rear Hub

DT Swiss 370 Hybrid, 32h, 12x148mm

Rims

WTB KOM Trail i30, 30mm inner width, TCS tubeless ready

Spokes

DT Swiss Champion

Interior Features

Internal cable routing, direct mount internal battery, tubeless valves

Exterior Features

Engineered plastic skid plate, UDH hanger

Drive Unit

Shimano EP801, 85Nm torque, 600W+ peak output, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes

Battery

Custom 601Wh battery, direct mount internal

Charger

Custom 4A

Display

Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible

Range

Up to 80 km (50 mi, varies by terrain, rider weight, and assist mode)
