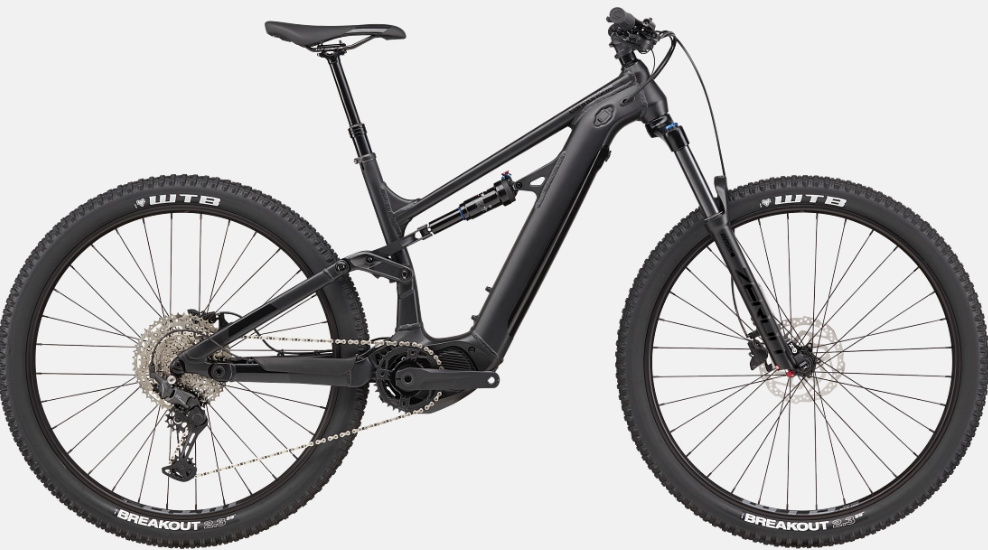

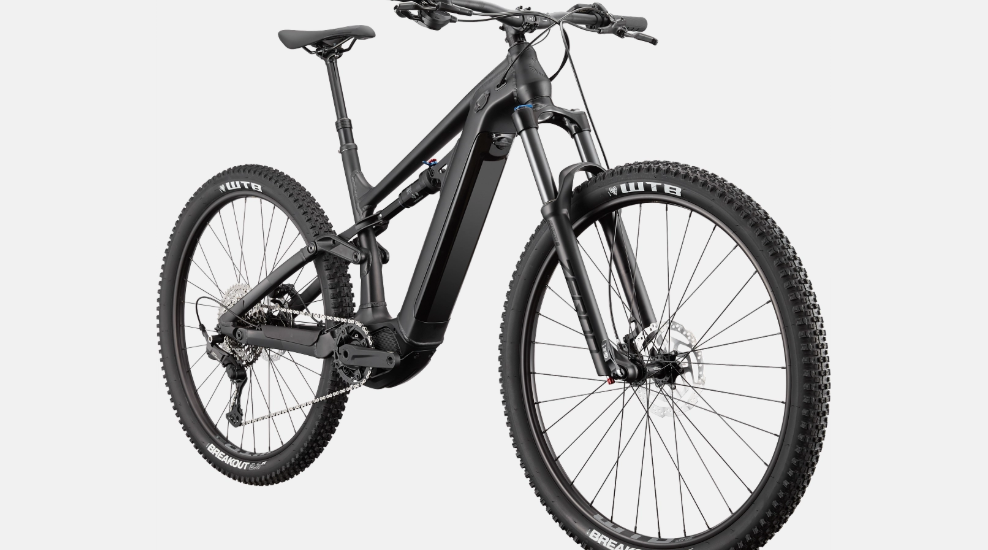

2025 Cannondale Moterra S4 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Moterra S4 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail-riding fun |
|
Starting Price (2025) |
$4,999.00 USD |
|
Color Options |
Smoke Black |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube |
|
Fork |
SR Suntour Zeron 36 Boost, 140mm, Air, rebound adjust, tapered steerer, 44mm offset |
|
Rear Shock |
X-Fusion O2 Pro Air, adjustable rebound, lock-out |
|
Drivetrain Compatibility |
Shimano CUES U6000, 11-speed |
|
Dropouts |
148x12mm thru-axle |
|
Bottom Bracket |
Not specified (Shimano EP6 integrated) |
|
Crankset |
FSA E-Bike for Shimano, 165mm, 34T |
|
Chain |
Shimano LG500 Linkglide, 11-speed |
|

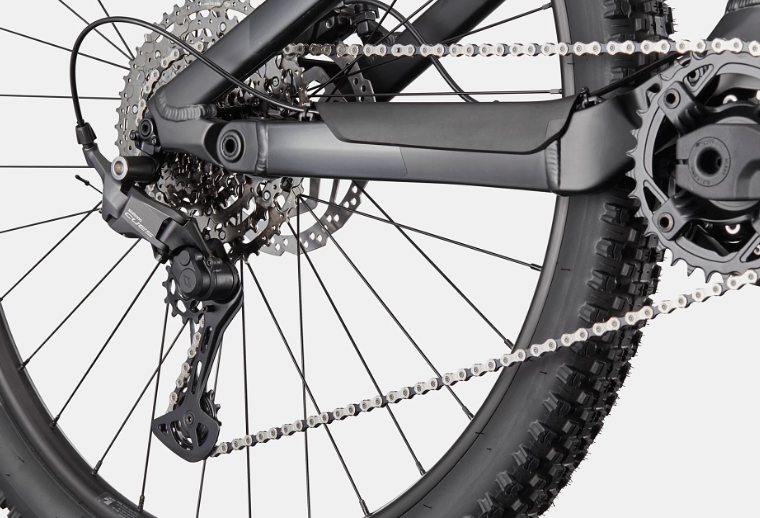

Rear Derailleur |
Shimano CUES U6000, 11-speed |
|
Shifter |
Shimano CUES U6000, trigger style, 11-speed |
|
Cassette |
Shimano CUES LG400, 11-50, 11-speed |
E-System
|
Specification |
Details |
|

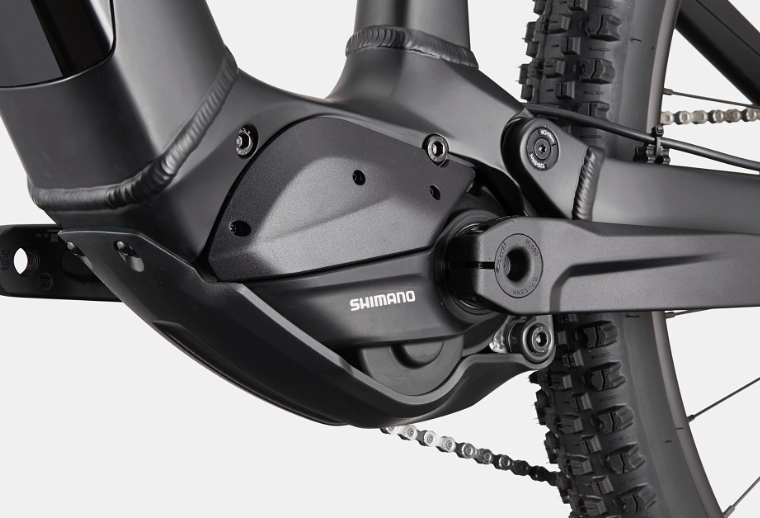

Drive Unit |
Shimano EP6, 250W, up to 85Nm torque |
|
Battery |
Shimano BT-EN8035, 504Wh |
|
Charger |
Shimano Battery Charger 2A |
|
Display |
Shimano SC-EN500 |
|
Range |
Up to 60 km (37 mi, varies by terrain, rider weight, and assist mode) |
Components & Features
|
Specification |
Details |
|
Seating |
1 rider (Cannondale Stage 3) |
|
Fuel Type |
Electric (Shimano BT-EN8035, 504Wh) |
|
Wheels/Tyres |
WTB Breakout Comp, 29x2.3", DNA compound |
|
Wheel Size |
29" in |
|
Brakes |
Shimano MT200 hydraulic disc, 180/180mm RT10 rotors |
|
Brake Levers |
Shimano MT200 hydraulic disc |
|

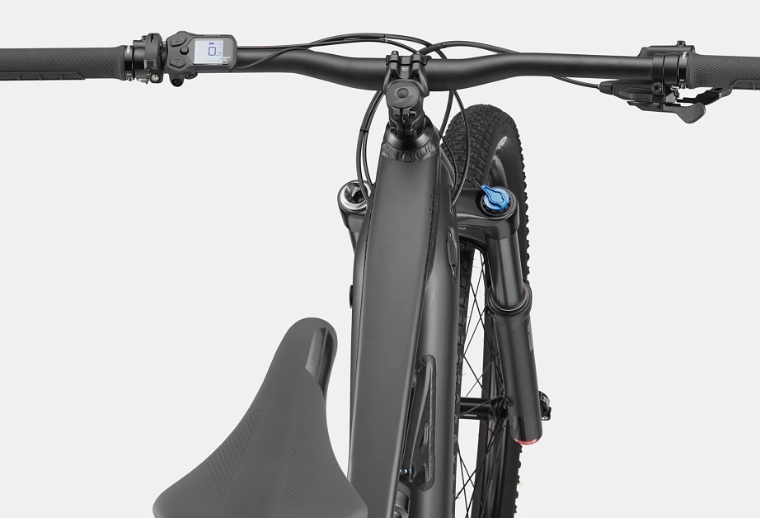

Handlebar |
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
|
Stem |
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 6° |
|
Headset |
Integrated, 1-1/8 to 1.5", sealed bearings |
|
Saddle |
Cannondale Stage 3 |
|
Seatpost |
TranzX dropper, internal routing, 31.6, 120mm (S), 130mm (M-XL) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale Locking Grips |
|
Front Hub |
Shimano TC500, 15x110mm thru-axle, centerlock |
|
Rear Hub |
Shimano TC500, 12x148mm thru-axle, centerlock |
|
Rims |
WTB STX i25 TCS, 32h |
|
Spokes |
Stainless Steel, 14g |
|
Interior Features |
Internal cable routing, removable downtube battery |
