Specification

Details

Model

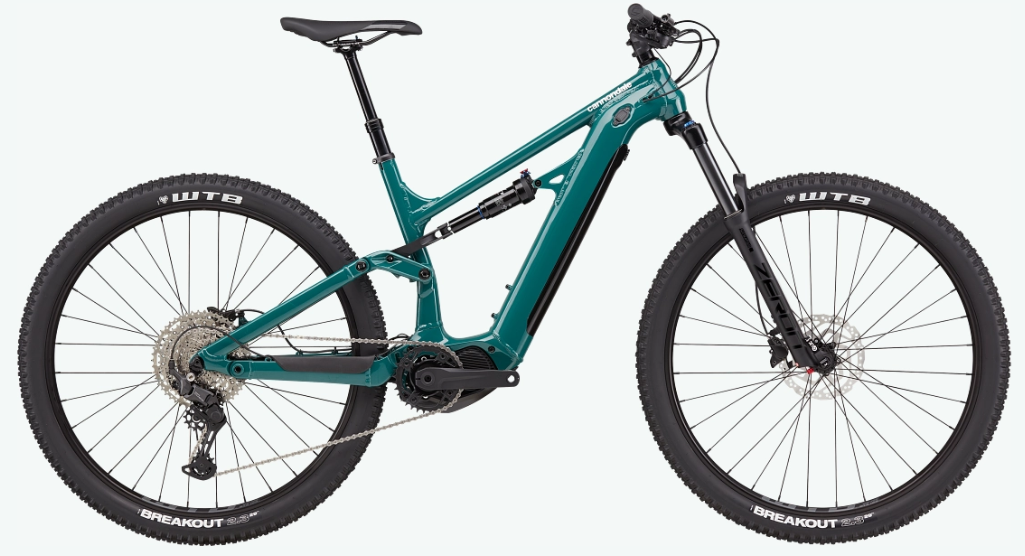

Moterra S3

Vehicle Category

Electric Mountain Bike

Application

Trail riding, technical climbs, descents

Starting Price (2025)

$4,499.00 USD

Color Options

Pine

Specification

Details

Frame

150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube

Fork

SR Suntour Zeron 36 Boost, 140mm, Air, rebound adjust, tapered steerer, 44mm offset

Rear Shock

X-Fusion O2 Pro Air, adjustable rebound, lock-out

Drivetrain Compatibility

Shimano CUES 6000, 11-speed

Dropouts

148x12mm thru-axle

Bottom Bracket

Shimano, integrated

Crank

FSA E-Bike for Shimano, 165mm, 34T

Chain

Shimano LG500 Linkglide, 11-speed

Rear Derailleur

Shimano CUES U6000, 11-speed

Shifters

Shimano CUES U6000, trigger style, 11-speed

Cassette

Shimano CUES LG400, 11-50, 11-speed

Specification

Details

Seating

1 passenger (Cannondale Stage 3)

Fuel Type

Electric

Wheels/Tyres

WTB Breakout Comp, 29x2.3", DNA compound

Wheel Size

29" in

Brakes

Shimano MT200 hydraulic disc, 180/180mm RT10 rotors

Brake Levers

Shimano MT200 hydraulic disc

Handlebar

Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm

Stem

Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 6°

Headset

Integrated, 1-1/8 to 1.5", sealed bearings

Saddle

Cannondale Stage 3

Seatpost

TranzX dropper, internal routing, 31.6, 120mm (S), 130mm (M-XL)

Seatpost Clamp

Integrated

Grips

Cannondale Locking Grips

Front Hub

Shimano TC500, 15x110mm thru-axle, centerlock

Rear Hub

Shimano TC500, 12x148mm thru-axle, centerlock

Rims

WTB STX i25 TCS, 32h

Spokes

Stainless Steel, 14g

Drive Unit

Shimano EP6

Battery

Shimano BT-EN8036, 630Wh

Charger

Shimano Battery Charger 2A

Display

Shimano SC-EN500

Range

Up to 120 km (75 miles)

Certifications

UL 2849
