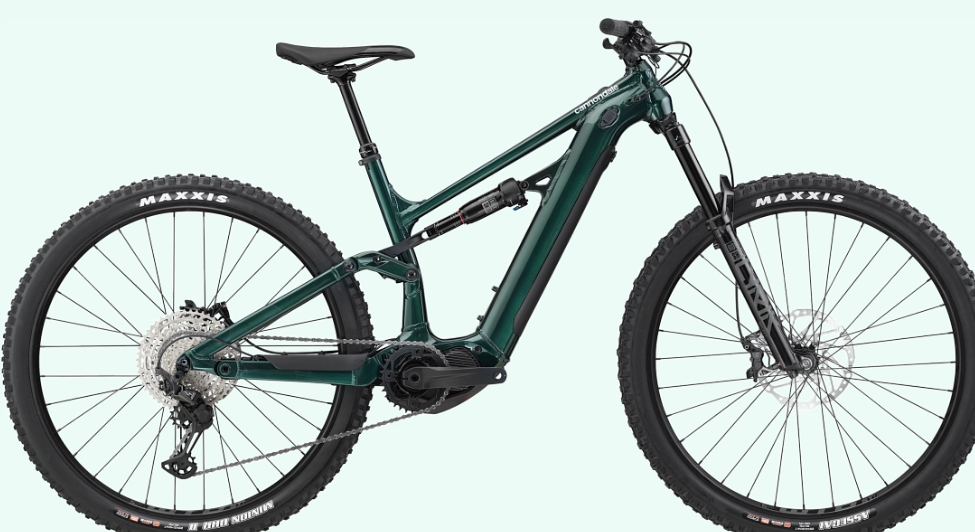

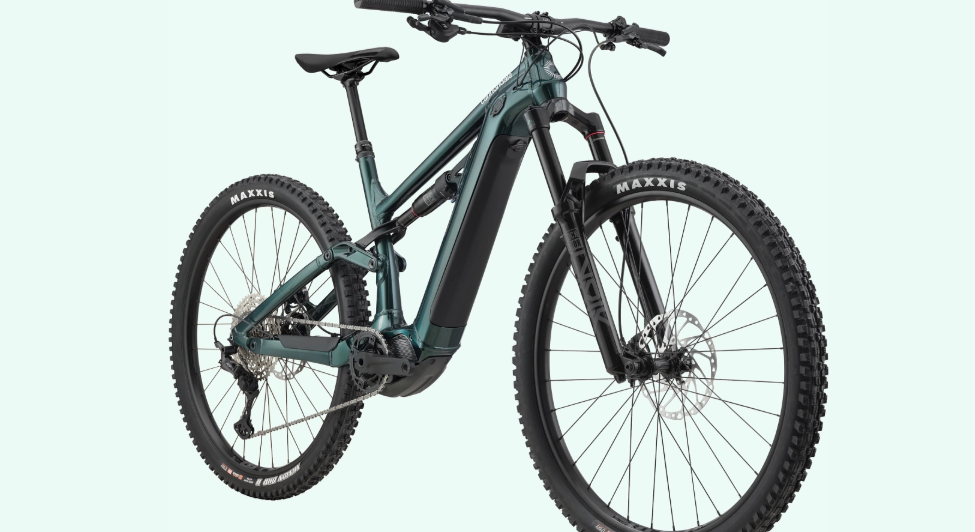

2025 Cannondale Moterra S1 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Moterra S1 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail-riding fun |
|
Starting Price (2025) |
$6,500.00 USD |
|
Color Options |
Gunmetal Green |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube |
|
Fork |
RockShox Lyrik Select, 150mm, Solo Air, 15x110mm stealth thru-axle, tapered steerer, 51mm offset |
|
Rear Shock |
RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound |
|
Drivetrain Compatibility |
Shimano XT/SLX, 12-speed |
|
Dropouts |
148x12mm thru-axle |
|
Bottom Bracket |
Not specified (Shimano EP800 integrated) |
|
Crankset |
FSA E-Bike, 165mm, Shimano 12-speed, 34T |
|
Chain |
Shimano M6100 Hyperglide, 12-speed |
|
Rear Derailleur |
Shimano XT |
|
Shifter |
Shimano SLX, 12-speed |
|
Cassette |
Shimano Deore, Hyperglide, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 rider (Cannondale Ergo XC) |
|
Fuel Type |
Electric (Shimano BT-EN8036, 630Wh) |
|
Wheels/Tyres |
(F) Maxxis Assegai, 29x2.6", 3C, EXO+, tubeless ready / (R) Maxxis DHR II, 29x2.6", 3C, EXO+, tubeless ready |
|
Wheel Size |
29" in |
|
Brakes |
Shimano SLX 4-piston hydraulic disc, RT64 rotors 203mm/203mm |
|
Brake Levers |
Shimano SLX hydraulic disc |
|

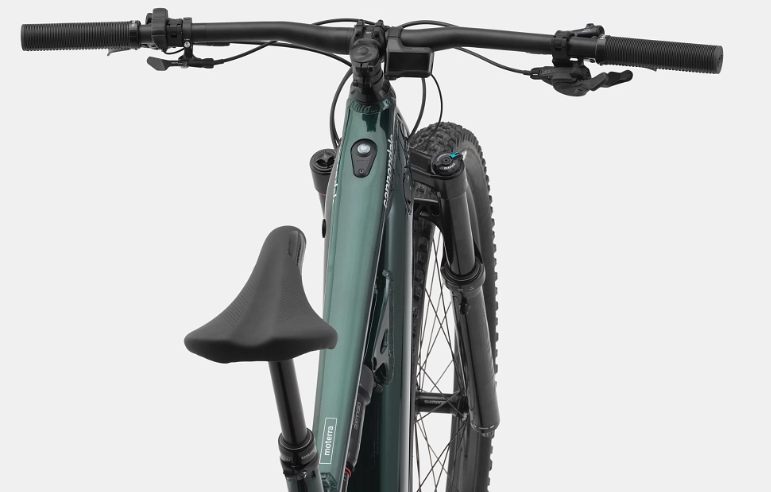

Handlebar |
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
|
Stem |
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7° |
|
Headset |
Integrated Sealed Bearing, Tapered |
|
Saddle |
Cannondale Ergo XC |
|
Seatpost |
Cannondale DownLow dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Fabric Funguy |
|
Front Hub |
Shimano MT400, 15x110mm thru-axle |
|
Rear Hub |
Shimano MT400, 12x148mm thru-axle |
|
Rims |
WTB ST i30 TCS, 32h, tubeless ready |
|
Spokes |
Stainless steel, 14g |
|
Interior Features |
Internal cable routing, removable downtube battery |
|

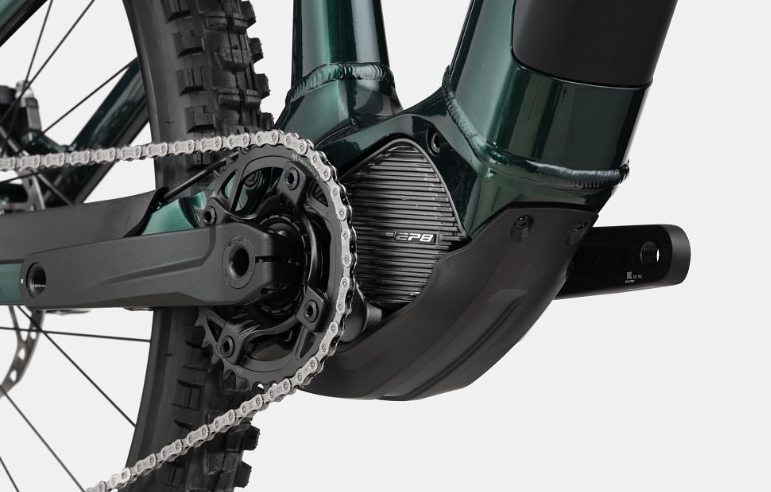

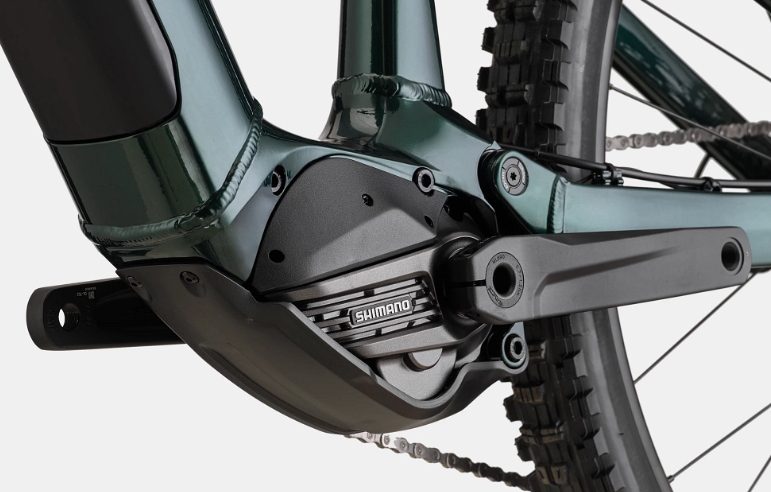

Drive Unit |
Shimano EP800, 250W, up to 85Nm torque |
|
Battery |
Shimano BT-EN8036, 630Wh |
|
Charger |
Shimano Battery Charger 2A |
|
Display |
Shimano SC-EM800, Bluetooth enabled |
|
Range |
Up to 80 km (50 mi, varies by terrain, rider weight, and assist mode) |
