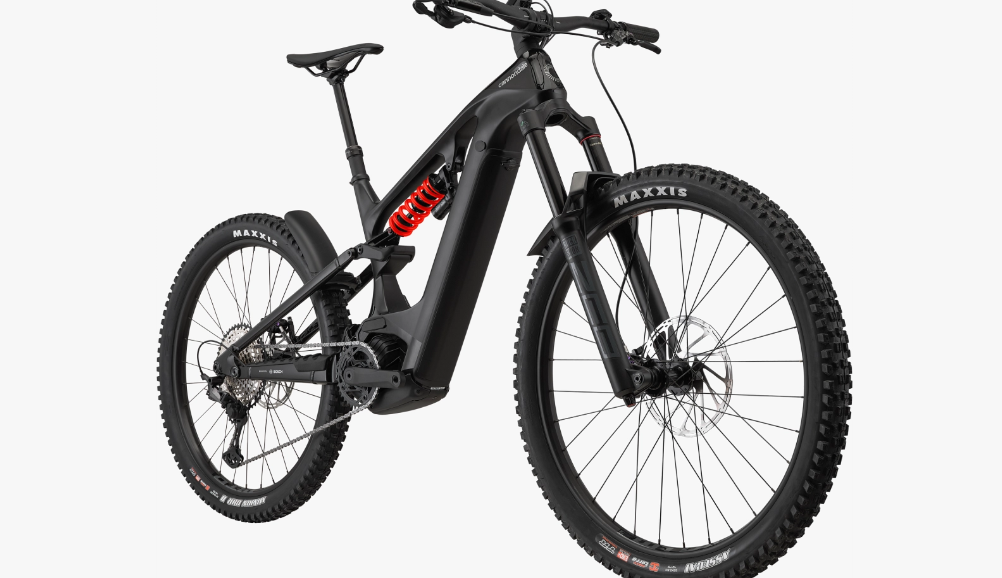

2025 Cannondale Moterra Neo LT Carbon 2 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Moterra Neo LT Carbon 2 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, technical climbs, descents |
|
Starting Price (2025) |
$5,799.00 USD |
|
Color Options |
Matte Black |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount |
|
Fork |
RockShox Zeb Select, Charger RC, 170mm, DebonAir, 15x110mm, 44mm offset |
|
Rear Shock |
RockShox Deluxe Select+, Coil, 2-Pos mode adjust, adjustable rebound |
|
Drivetrain Compatibility |
Shimano XT/SLX, 12-speed |
|
Dropouts |
148x12mm thru-axle, UDH hanger |
|
Bottom Bracket |
Bosch, integrated |
|
Crank |
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
|
Chain |
Shimano SLX, 12-speed |
|
Rear Derailleur |
Shimano XT |
|
Shifters |
Shimano SLX, 12-speed |
|
Cassette |
Shimano SLX, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Fabric Scoop Shallow Sport, steel rails) |
|
Fuel Type |
Electric |
|
Cargo Capacity |
18mm two-bolt kickstand mount |
|
Wheels/Tyres |
(F) Maxxis Assegai, 29x2.6", 3C, EXO+, tubeless ready / (R) Maxxis DHR II, 27.5x2.6", 3C, EXO+, tubeless ready |
|
Wheel Size |
29" (F) / 27.5" (R) |
|
Brakes |
SRAM Code R hydraulic disc, 220/200mm centerline rotors |
|
Brake Levers |
SRAM Code R hydraulic disc |
|
Handlebar |
Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm |
|
Stem |
Cannondale 2, 6061 Alloy, 35mm, 0° |
|
Headset |
Acros integrated sealed bearing, tapered |
|
Saddle |
Fabric Scoop Shallow Sport, steel rails |
|
Seatpost |
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Fabric FunGuy |
|
Front Hub |
Formula 15x110mm thru-axle |
|
Rear Hub |
Shimano MT410, 12x148mm thru-axle |
|
Rims |
WTB ST i30 TCS, 32h, tubeless ready |
|
Spokes |
Stainless Steel, 14g |
|
Exterior Features |
Pre-installed light cable (Note: not compatible with Bosch Range Extender) |
|
Drive Unit |

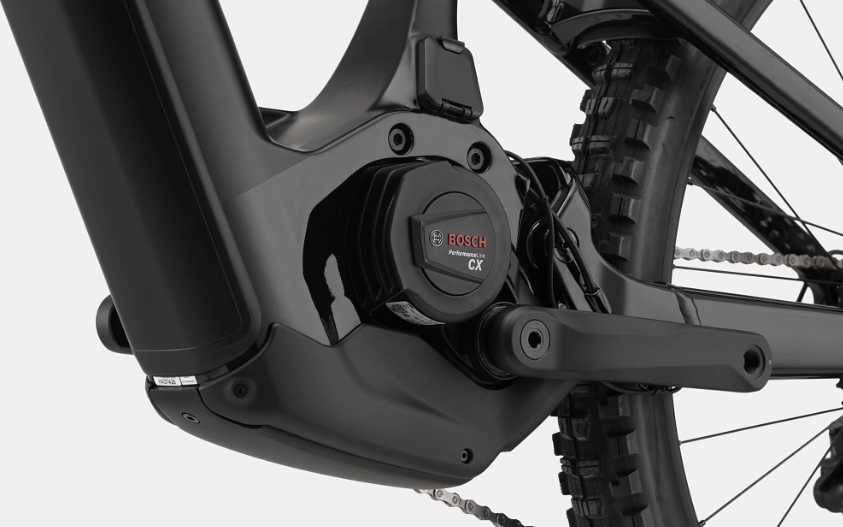

Bosch Performance Line CX 250W |
|
Battery |
Bosch PowerTube, 750Wh |
|
Charger |
Bosch 4A |
|
Display |

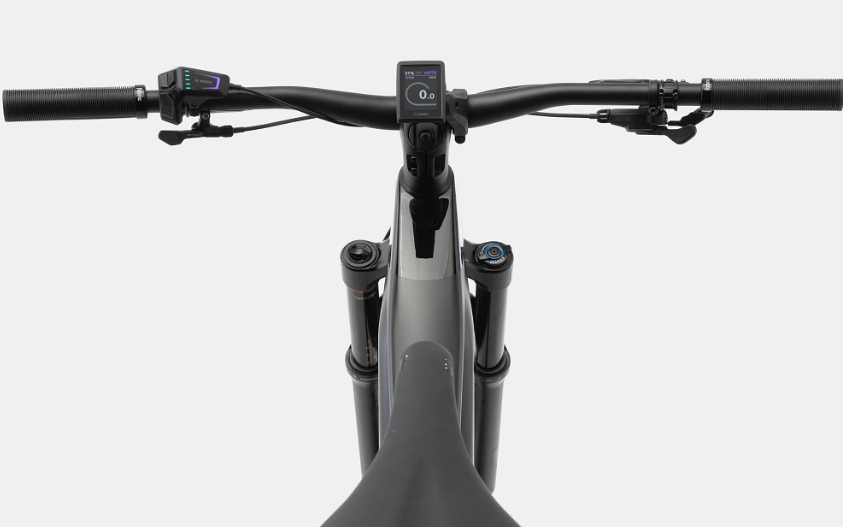

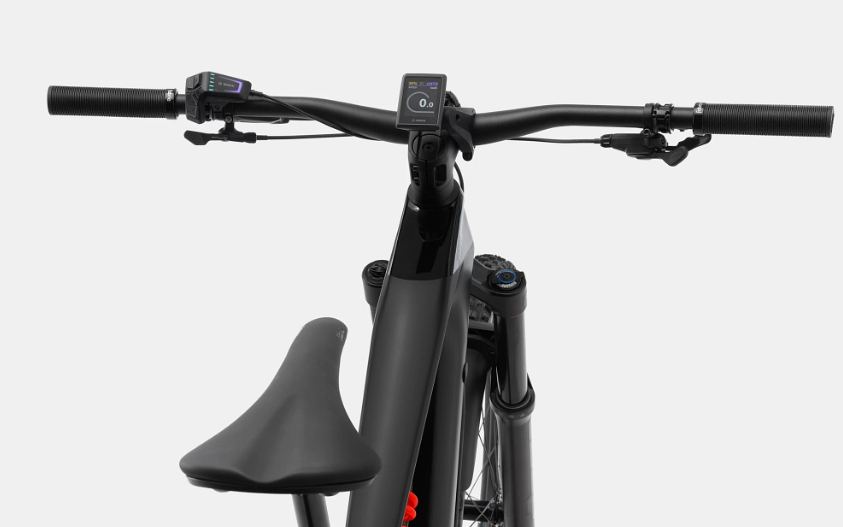

Bosch Kiox 300 w/ LED remote |
|
Range |
Up to 150 km (93 miles) |
|
Certifications |
UL 2849 |
