Specification

Details

Model

Moterra LT Carbon 1

Vehicle Category

Electric Enduro Bike

Application

Enduro, downhill, aggressive trail riding

Starting Price (2025)

$9,500.00 USD

Color Options

Quicksand, Black

Specification

Details

Frame

Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5”–1.8” tapered headtube, 18mm two-bolt kickstand mount

Fork

RockShox Zeb Select+, Charger RC, 170mm, DebonAir, 15x110mm, 44mm offset

Rear Shock

RockShox Deluxe Select+, Coil, 2-Pos mode adjust, adjustable rebound

Drivetrain Compatibility

Shimano XT, 12-speed

Dropouts

148x12mm thru-axle, UDH hanger

Crankset

FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T

Chain

Shimano XT, 12-speed

Rear Derailleur

Shimano XT

Shifter

Shimano XT, 12-speed

Cassette

Shimano XT, 10-51, 12-speed

Specification

Details

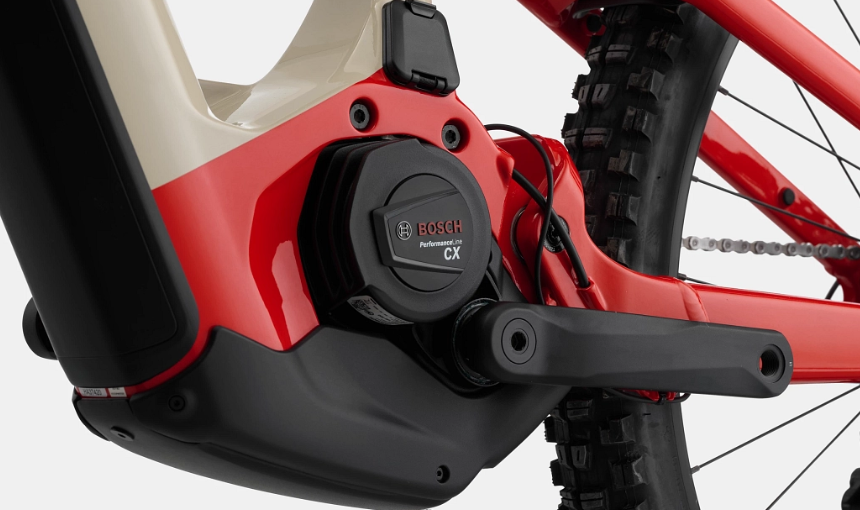

Drive Unit

Bosch Performance Line CX, 250W, up to 85Nm torque

Battery

Bosch PowerTube, 750Wh

Charger

Bosch 4A

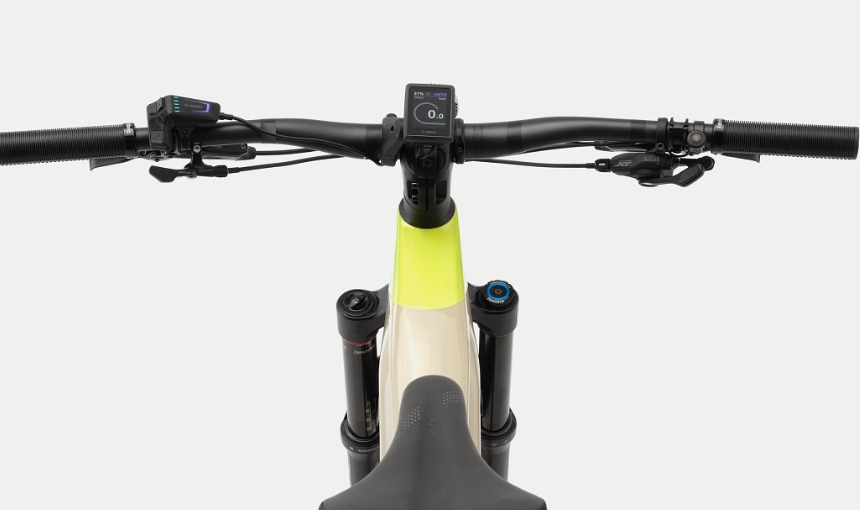

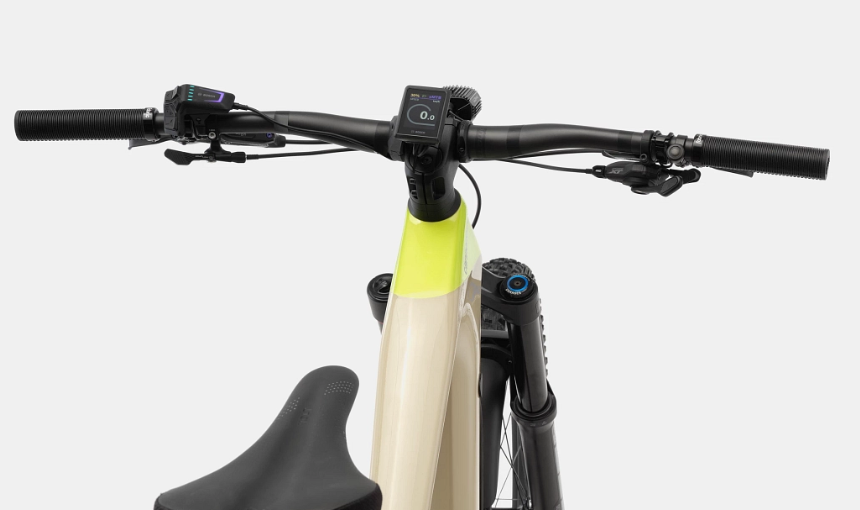

Display

Bosch Kiox 300 w/ LED remote

Range

Up to 100 km (62 mi, varies by terrain, rider weight, and assist mode)

Certifications

UL 2849

Specification

Details

Seating

1 rider (Fabric Magic Elite Saddle, cro-mo rails)

Fuel Type

Electric (Bosch PowerTube, 750Wh)

Wheels/Tyres

(F) Maxxis Assegai, 29x2.6", 3C, EXO+, tubeless ready / (R) Maxxis DHR II, 27.5x2.6", 3C, EXO+, tubeless ready

Wheel Size

29" front, 27.5" rear (mullet)

Brakes

SRAM Code RSC hydraulic disc, 4-piston, CenterLine 220/200mm rotors

Brake Levers

SRAM Code RSC hydraulic disc

Handlebar

HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm

Stem

Cannondale 2, 6061 Alloy, 35mm, 0°

Headset

Acros integrated sealed bearing, tapered

Saddle

Fabric Magic Elite Saddle, cro-mo rails

Seatpost

Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)

Seatpost Clamp

Integrated

Grips

Fabric FunGuy

Front Hub

Formula, 15x110mm thru-axle

Rear Hub

DT Swiss, 12x148mm thru-axle

Rims

WTB KOM Trail i30 TCS, 32h, tubeless ready

Spokes

DT Swiss Champion

Interior Features

Internal cable routing, removable downtube battery, alloy skid plate, 55mm chainline, UDH hanger, 18mm two-bolt kickstand mount

Exterior Features

Lezyne Super HB E1000 w/ remote high beam switch (not compatible with Bosch Range Extender)

Weight

~24 kg (varies in final production)
