Specification

Details

Model

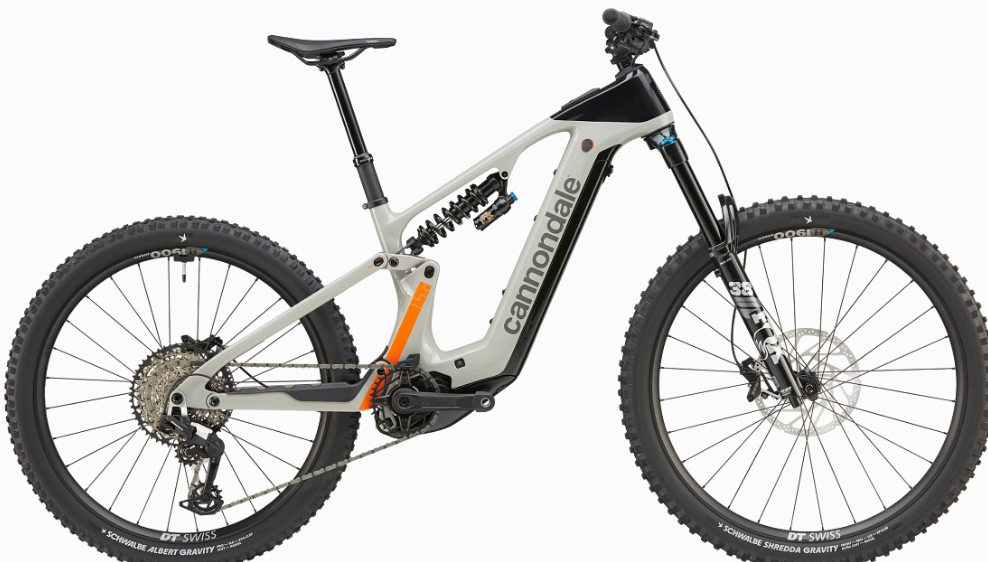

Moterra LT 1

Vehicle Category

Electric Enduro Bike

Application

Enduro, downhill, aggressive trail riding

Starting Price (2025)

$7,850.00 USD

Color Options

Tiger Shark, Black

Specification

Details

Frame

Moterra LT Carbon, 27.5" rear wheel, 29" front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5"–1.8" tapered headtube

Fork

Fox Float Performance 38, 170mm, Grip Damper 3Pos, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset

Rear Shock

Fox DHX Performance, Coil, 2 pos adj, 230x65mm

Drivetrain Compatibility

SRAM Eagle 90/70 T-Type, 12-speed

Dropouts

148x12mm thru-axle, UDH

Bottom Bracket

Not specified (Bosch Performance Line CX integrated)

Crankset

e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T

Chain

SRAM Eagle 70 T-Type, 12-speed

Rear Derailleur

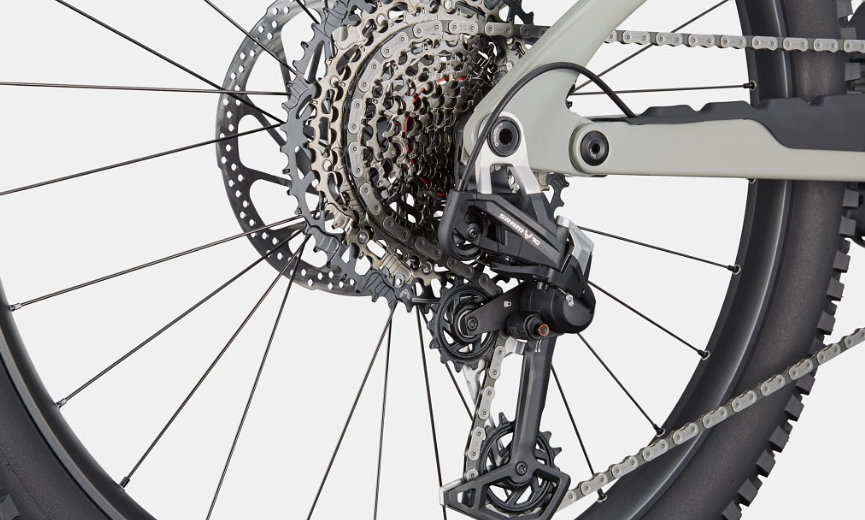

SRAM Eagle 90 T-Type, 12-speed

Shifter

SRAM Eagle 90 T-Type, 12-speed

Cassette

SRAM Eagle 70 T-Type, 10-52, 12-speed

Specification

Details

Seating

1 rider (Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail)

Fuel Type

Electric (Bosch PowerTube, 800Wh)

Wheels/Tyres

(F) Schwalbe Shredda Front, 29x2.5", Radial casing, Addix Ultra Soft Foldable, tubeless ready / (R) Schwalbe Albert, 27.5x2.5", Radial casing, Addix Soft Foldable, tubeless ready

Wheel Size

29" front, 27.5" rear (mullet)

Brakes

TRP EVO Pro 4-piston hydraulic disc, 220/203mm rotors, 2.3mm thickness

Brake Levers

TRP EVO Pro hydraulic disc

Handlebar

Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm

Stem

Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°

Headset

Acros ICR, 1.5" to 1.8", sealed bearings

Saddle

Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail

Seatpost

Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

Seatpost Clamp

Integrated

Grips

Cannondale TaperRidge

Front Hub

DT Swiss 370, 15x110mm thru-axle

Rear Hub

DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt

Rims

DT Swiss H 1900 Spline, 30mm inner width, tubeless ready

Spokes

DT Swiss Competition, straight pull

Interior Features

Internal cable routing, removable downtube battery, alloy skid plate, 55mm chainline, UDH

Exterior Features

Tubeless valves, Bosch PowerMore range extender compatible

Weight

~25 kg (varies in final production)

Drive Unit

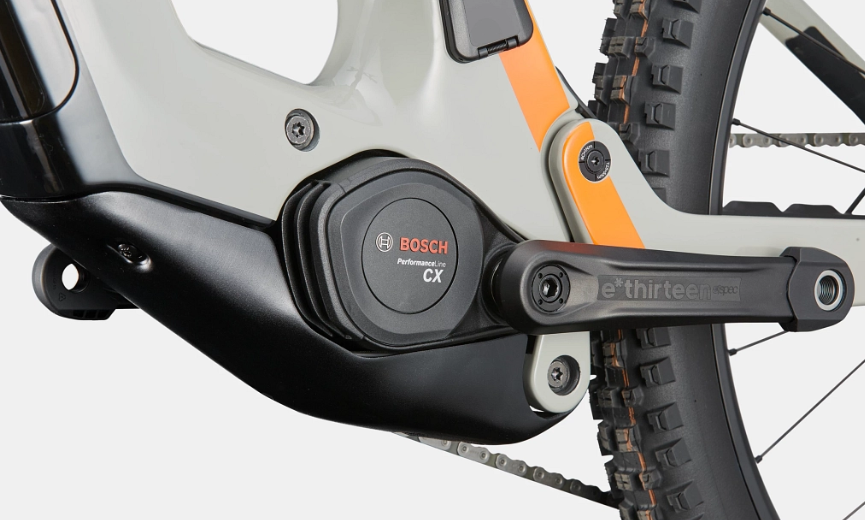

Bosch Performance Line CX, 250W, up to 100Nm torque

Battery

Bosch PowerTube, 800Wh

Charger

Bosch 4A

Display

Top Tube System Controller w/ Mini Remote

Range

Up to 100 km (62 mi, varies by terrain, rider weight, and assist mode)
