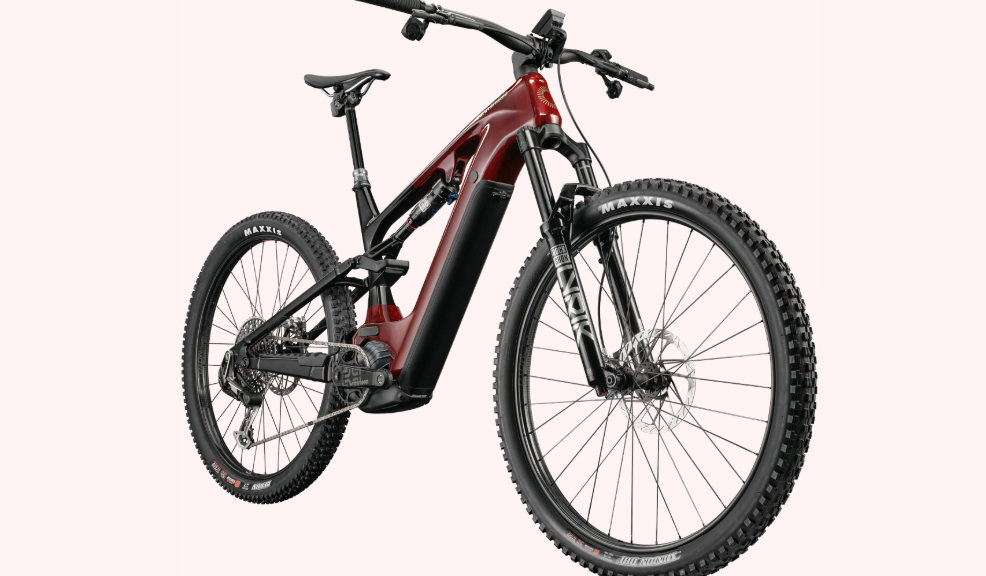

2025 Cannondale Moterra LAB71 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Moterra LAB71 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, technical climbs, descents |
|
Starting Price (2025) |
$14,000.00 USD |
|
Color Options |
Tinted Red |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Lab71 Edition Full Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount |
|
Fork |
RockShox Lyrik Ultimate, Charger 3, 150mm, DebonAir, 15x110mm thru-axle, tapered steerer, 42mm offset |
|
Rear Shock |
RockShox Deluxe Select +, DebonAir, 2-Pos mode adjust, adjustable rebound |
|
Drivetrain Compatibility |
SRAM XX Eagle AXS T-Type, 12-speed |
|
Dropouts |
148x12mm thru-axle, UDH hanger |
|
Bottom Bracket |
Bosch, integrated |
|

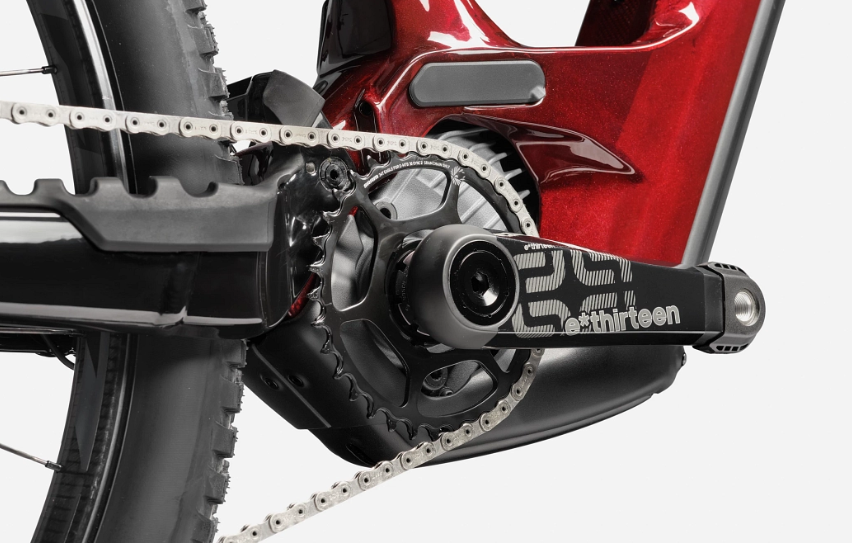

Crank |
e*thirteen e*spec Race Carbon, 160mm, 34T |
|
Chain |
SRAM XX Eagle T-Type, Flattop |
|
Rear Derailleur |
SRAM XX Eagle AXS T-Type |
|
Shifters |
SRAM AXS T-Type Ultimate Pod Controller |
|
Cassette |
SRAM XX Eagle T-Type, 10-52, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Cannondale Scoop Shallow Race, Ti rails) |
|
Fuel Type |
Electric |
|
Cargo Capacity |
18mm two-bolt kickstand mount |
|
Wheels/Tyres |
(F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready |
|
Wheel Size |
29 (27.5" rear - size Small) |
|
Alternate Wheel/Tyre Sizes |
27.5x2.6" (size Small, rear) |
|
Brakes |
SRAM Code Ultimate Stealth 4-piston hydraulic disc, 220/200mm rotors |
|
Brake Levers |
SRAM Code Ultimate Stealth hydraulic disc, carbon levers |
|
Handlebar |
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
|
Stem |
Cannondale, 3D Forged 6061 Alloy, 1-1/8", 35.0, internal cables |
|
Headset |
Acros, integrated, 1-1/8 to 1.8", sealed bearings |
|
Saddle |
Cannondale Scoop Shallow Race, Ti rails |
|
Seatpost |
SRAM Reverb AXS, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Cannondale TaperRidge |
|
Front Hub |
Zipp ZM2, 15x110mm thru-axle |
|
Rear Hub |
Zipp ZM2, 12x148mm thru-axle |
|
Rims |
Zipp 3Zero Moto, carbon, 32h, 30mm inner width, 37.5mm outer width |
|
Spokes |
Zipp 3Zero Moto |
|
Exterior Features |
SuperNova Mini 2 Pro STVZO w/ remote high beam switch, Zipp tubeless valve stems, SRAM AXS charger (Note: not compatible with Bosch Range Extender) |
|

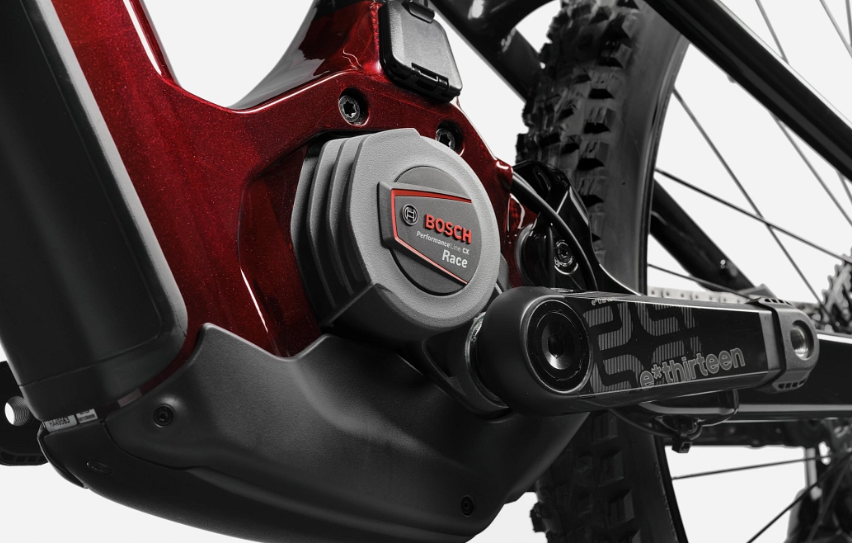

Drive Unit |
Bosch Performance Line CX Race |
|
Battery |
Bosch PowerTube, 750Wh |
|
Charger |
Bosch 4A |
|
Display |
Bosch Kiox 300 w/ LED remote |
|
Range |
Up to 150 km (93 miles) |
