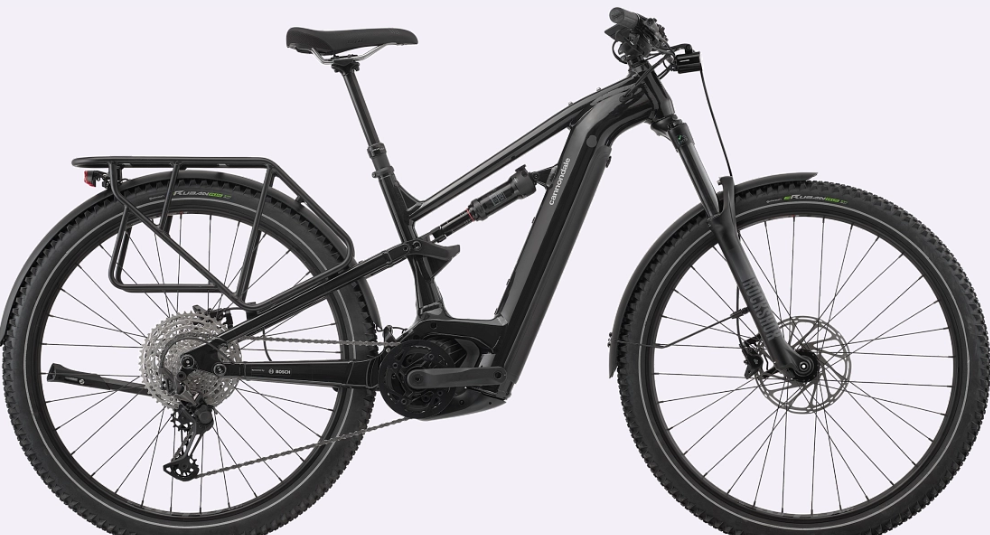

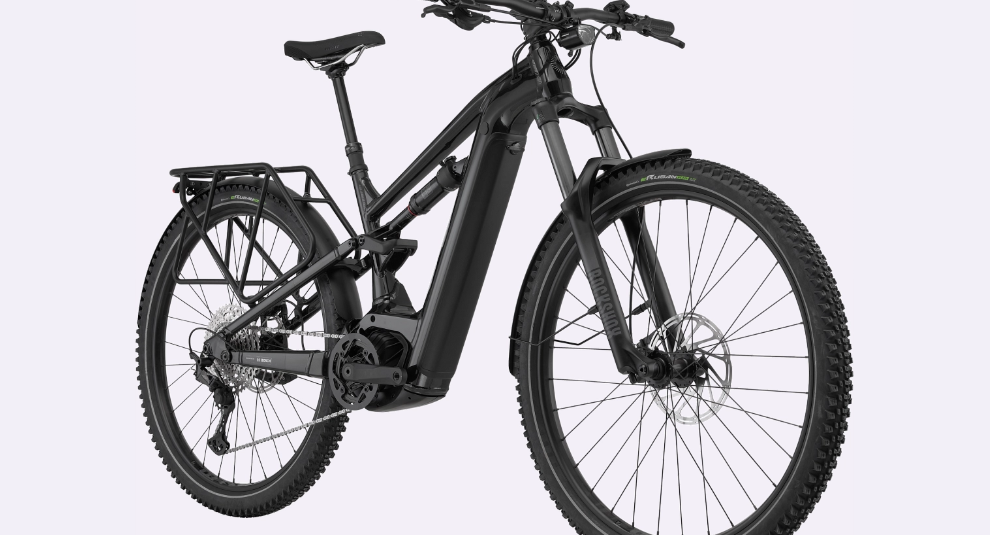

2025 Cannondale Moterra EQ – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Moterra EQ |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, commuting, touring |
|
Starting Price (2025) |
$5,399.00 USD |
|
Color Options |
Black Pearl |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Moterra, SmartForm C1 Alloy, 130mm travel, Proportional Response Tuned Suspension, removable downtube battery, injected molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, tapered headtube, 18mm two-bolt kickstand mount, integrated rear rack |
|
Fork |
RockShox 35 Silver R, 150mm, Coil, 15x110mm thru-axle, tapered steerer, 44mm offset, rack and fender compatible |
|
Rear Shock |
RockShox Deluxe Select, DebonAir |
|
Drivetrain Compatibility |
Shimano XT/Deore, 12-speed |
|
Dropouts |
148x12mm thru-axle, UDH hanger |
|
Bottom Bracket |
Bosch, integrated |
|
Crank |
FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T |
|
Chain |
Shimano Deore 6100, 12-speed |
|
Rear Derailleur |
Shimano XT |
|
Shifters |
Shimano Deore M6100, 12-speed |
|
Cassette |
Shimano Deore M6100, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Fabric Scoop Shallow Sport, steel rails) |
|
Fuel Type |
Electric |
|
Cargo Capacity |
Integrated rear rack, 15 kg max |
|
Wheels/Tyres |
Continental eRuban, 29x2.3" |
|
Wheel Size |
29 in |
|
Brakes |
Shimano MT420 4-piston hydraulic disc, 203/203mm RT66/64 rotors |
|
Brake Levers |
Shimano MT400 hydraulic disc |
|
Handlebar |
Cannondale 3 Riser, Alloy, 25mm rise, 8° sweep, 5° rise, 780mm |
|
Stem |
Cannondale 2, 6061 Alloy, 35mm, 0° |
|
Headset |
Integrated Sealed Bearing, 1-1/8" - 1.5 |
|
Saddle |
Fabric Scoop Shallow Sport, steel rails |
|
Seatpost |
Cannondale DownLow Dropper, internal routing, 31.6, 150mm (Cannondale 3, 6061 Alloy, 31.6x350mm on size Small for clearance) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Fabric FunGuy |
|
Front Hub |
Formula 15x110mm thru-axle |
|
Rear Hub |
Shimano MT410, 12x148mm thru-axle |
|
Rims |
WTB ST i30 TCS, 32h, tubeless ready |
|
Spokes |
Stainless Steel, 14g |
|
Exterior Features |
Cannondale E-bike lights by Lezyne (Foresite E350 headlight, Hindsite E25 taillight), kickstand, alloy full coverage fenders, removable Moterra Rack, 15kg max (Note: not compatible with Bosch Range Extender) |
|

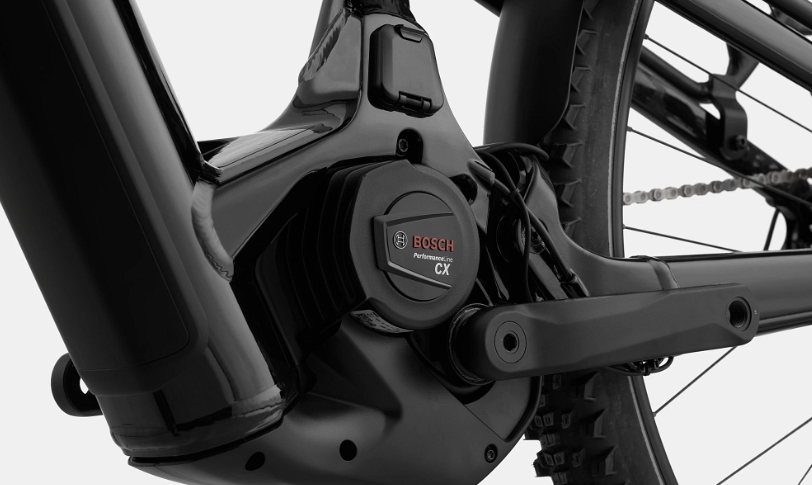

Drive Unit |
Bosch Performance Line CX |
|
Battery |
Bosch PowerTube, 750Wh |
|
Charger |
Bosch 4A |
|
Display |
Bosch Kiox 300 w/ LED remote |
|
Range |
Up to 175 km (109 miles) |
