Specification

Details

Model

Moterra Carbon 3

Vehicle Category

Electric Mountain Bike

Application

Trail riding, all-mountain biking, enduro

Starting Price (2025)

$5,500.00 USD

Color Options

Matte Black, Quicksand

Specification

Details

Frame

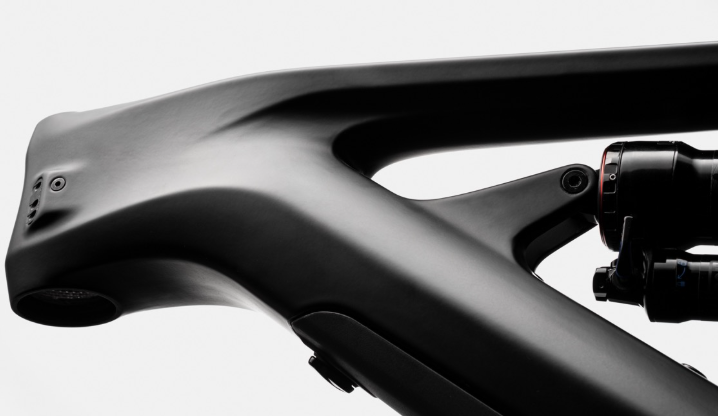

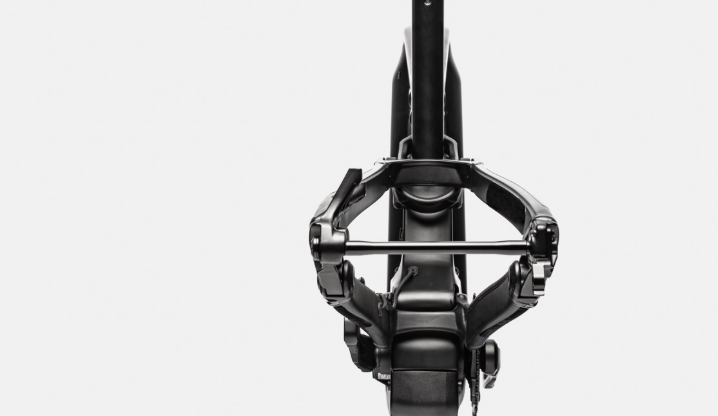

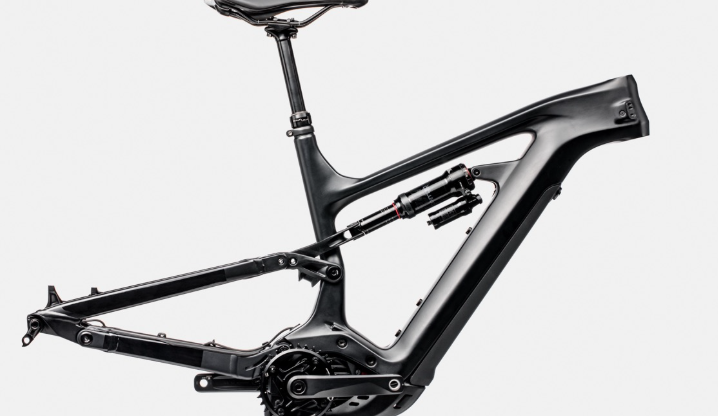

160mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, Ai offset drivetrain, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube

Fork

RockShox 35 Gold RL, 160mm, DebonAir, 15x110mm, tapered steerer, 51mm offset

Rear Shock

RockShox Deluxe Select R, DebonAir

Drivetrain Compatibility

SRAM SX Eagle 12-speed

Dropouts

148x12mm thru-axle

Crankset

FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T

Chain

SRAM SX Eagle, 12-speed

Rear Derailleur

SRAM SX Eagle

Shifter

SRAM SX Eagle, 12-speed

Cassette

SRAM PG-1210, SX Eagle, 11-50, 12-speed

Specification

Details

Seating

1 rider (Fabric Scoop Shallow Sport, steel rails)

Fuel Type

Electric (Bosch PowerTube, 500Wh)

Wheels/Tyres

(F) Maxxis Minion DHF, 27.5/29x2.6", 3C compound, EXO+, tubeless ready / (R) Maxxis Minion DHR II, 27.5/29x2.6", 3C compound, EXO+, tubeless ready

Wheel Size

29" (27.5" - size Small)

Alternate Wheel/Tyre Sizes

27.5" (size Small only)

Brakes

SRAM Guide RE hydraulic disc, 4-piston, 220/200mm Centerline rotors

Brake Levers

SRAM Guide RE hydraulic disc

Handlebar

Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm

Stem

Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0°

Headset

Integrated Sealed Bearing, Tapered

Saddle

Fabric Scoop Shallow Sport, steel rails

Seatpost

TranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M), 130mm (L-XL)

Seatpost Clamp

Integrated

Grips

Cannondale Locking Grips

Front Hub

Formula, 15x110mm

Rear Hub

Formula, 12x148mm

Rims

WTB ST i29 TCS, 32h, tubeless ready

Spokes

DT Swiss Champion

Interior Features

Internal cable routing, removable downtube battery, alloy skid plate, Ai offset drivetrain

Exterior Features

Pre-installed light cable (not compatible with Bosch Range Extender)

Drive Unit

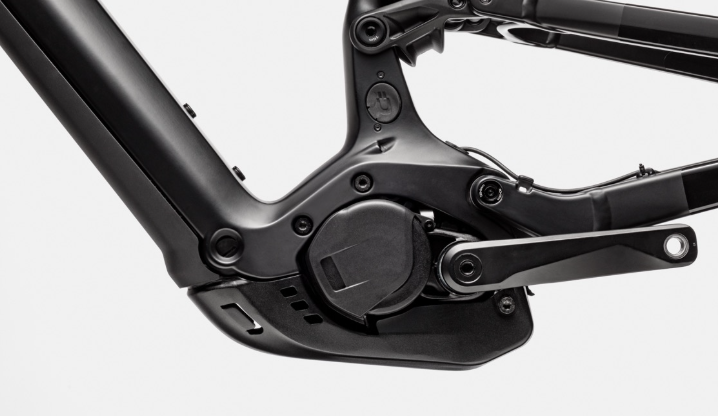

Bosch Performance Line CX, 250W, up to 85Nm torque

Battery

Bosch PowerTube, 500Wh

Charger

Bosch 4A

Display

Bosch Purion

Range

Up to 78 km (48 mi, varies by terrain, rider weight, and assist mode)

Certifications

UL 2849, EN15194
