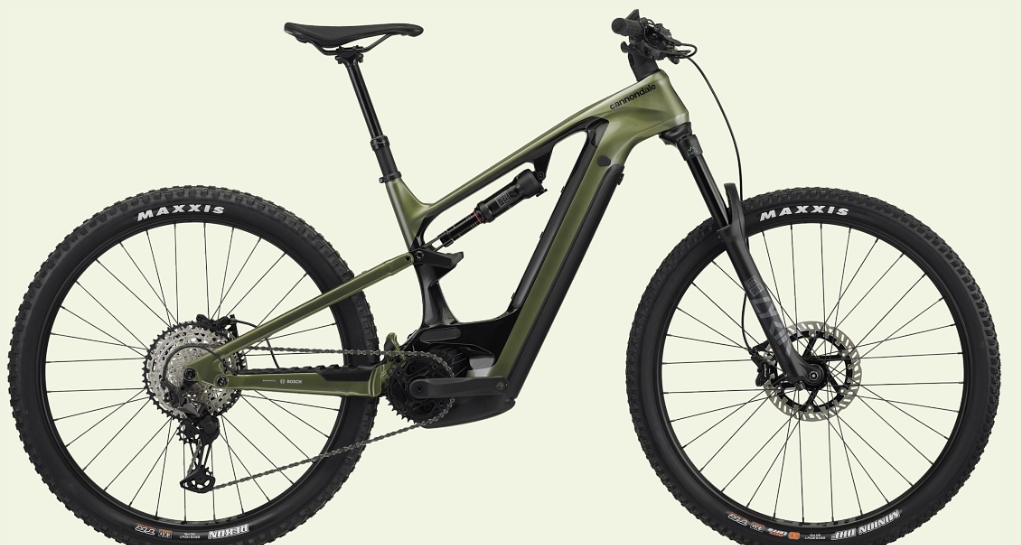

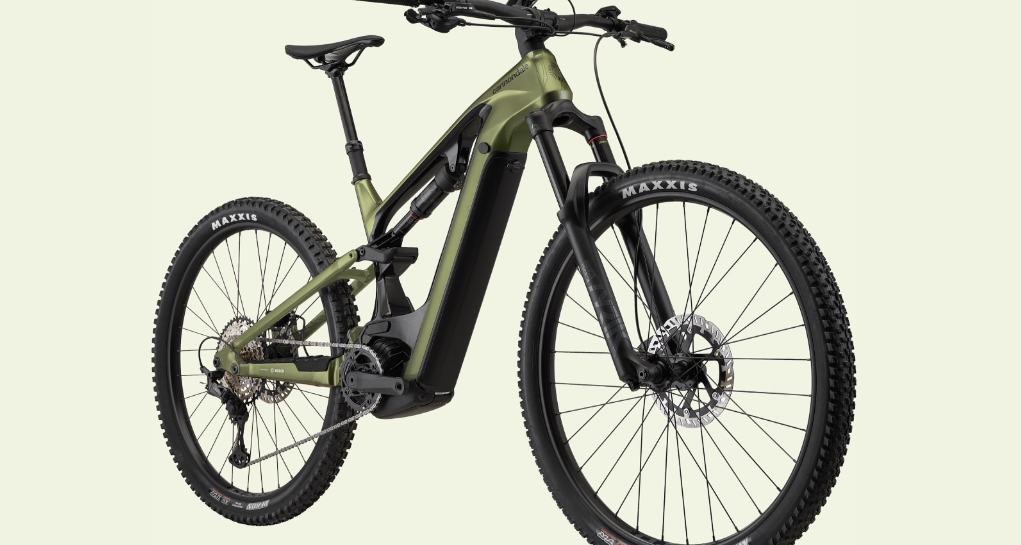

2025 Cannondale Moterra Carbon 2 – Electric Mountain Bike
Specifications
|
Specification |
Details |
|
Model |
Moterra Carbon 2 |
|
Vehicle Category |
Electric Mountain Bike |
|
Application |
Trail riding, enduro, all-mountain |
|
Starting Price (2025) |
$6,699.00 USD |
|
Color Options |
Mantis, Highlighter |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount |
|
Fork |
RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steerer, 44mm offset |
|
Rear Shock |
RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound |
|
Drivetrain Compatibility |
Shimano XT/SLX, 12-speed |
|
Dropouts |
148x12mm thru-axle, UDH hanger |
|
Bottom Bracket |
Bosch, integrated |
|
Crank |
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
|
Chain |
Shimano SLX, 12-speed |
|
Rear Derailleur |
Shimano XT |
|
Shifters |
Shimano SLX, 12-speed |
|
Cassette |
Shimano SLX, 10-51, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (Fabric Scoop Shallow Sport, steel rails) |
|
Fuel Type |
Electric |
|
Cargo Capacity |
18mm two-bolt kickstand mount, pre-installed light cable |
|
Wheels/Tyres |
(F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready |
|
Wheel Size |
29 (27.5" - size Small) |
|
Alternate Wheel/Tyre Sizes |
27.5x2.6" (size Small) |
|
Brakes |
Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors |
|
Brake Levers |
Shimano MT501 hydraulic disc |
|
Handlebar |
Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm |
|
Stem |
Cannondale 2, 6061 Alloy, 35mm, 0° |
|
Headset |
Acros integrated sealed bearing, tapered |
|
Saddle |
Fabric Scoop Shallow Sport, steel rails |
|
Seatpost |
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
|
Seatpost Clamp |
Integrated |
|
Grips |
Fabric FunGuy |
|
Front Hub |
Formula 15x110mm thru-axle |
|
Rear Hub |
Shimano MT410, 12x148mm thru-axle |
|
Rims |
WTB ST i30 TCS, 32h, tubeless ready |
|
Spokes |
DT Swiss Champion |
|
Exterior Features |
Pre-installed light cable, 18mm two-bolt kickstand mount (Note: not compatible with Bosch Range Extender) |
|
Weight |
53 lb (24 kg) |
|

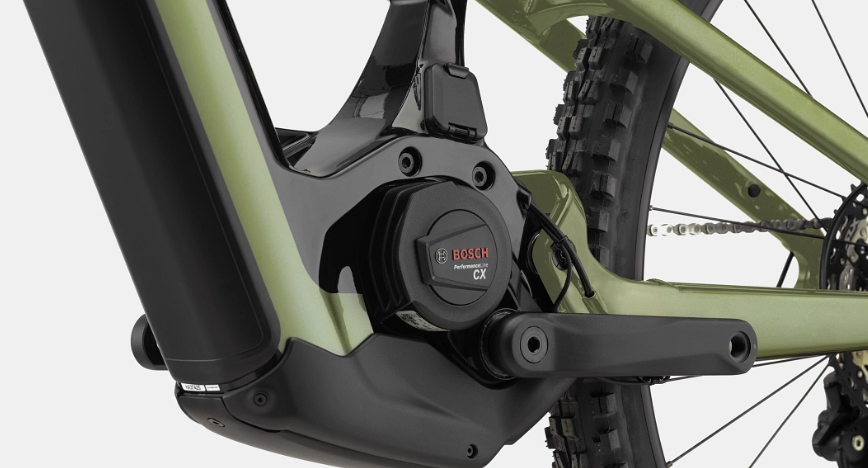

Drive Unit |
Bosch Performance Line CX 250W |
|
Battery |
Bosch PowerTube, 750Wh |
|
Charger |
Bosch 4A |
|

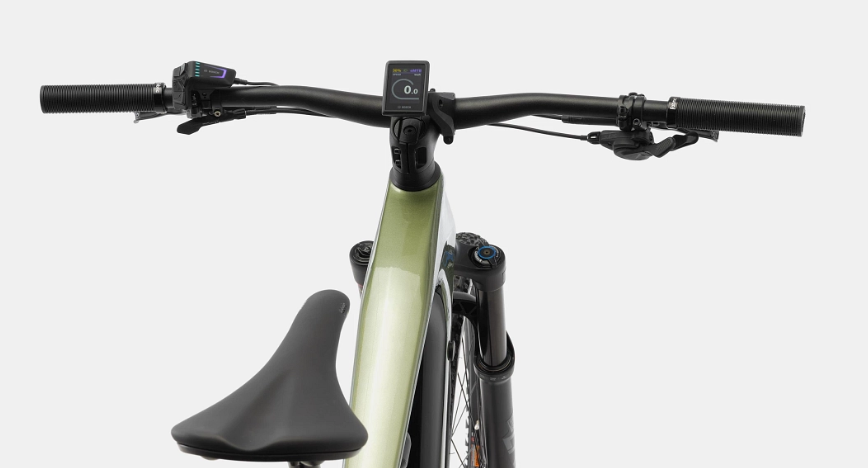

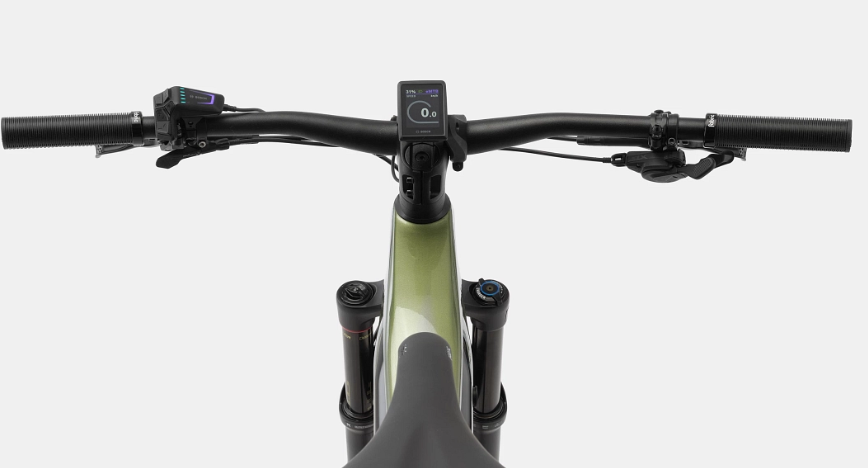

Display |
Bosch Kiox 300 w/ LED remote |
|
Range |
Up to 100 km (62 miles) |
